$1,550.00
Meet Your Seller

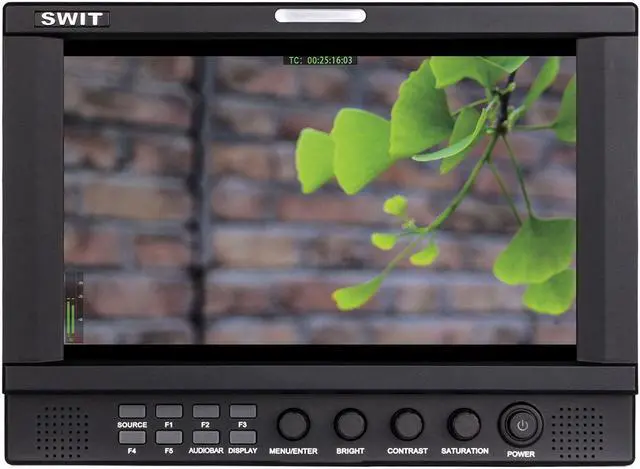

Swit Electronics S-1093H 9" Full HD LED Monitor with Gold Mount Battery Plate
- Screen Size:9"
- Display area:191.52 x 119.70mm
- Resolution:1920 x 1200
- Aspect ratio:16:9 (4:3 adjustable)
- Brightness:450cd/m2
- Contrast:800:1
- Color:16.77 million colors
- Viewing angle:Horizontal: 170 deg. Vertical: 170 deg.
- Input:2x BNC: 2K/3G/HD/SD-SDI input x 21x BNC: Composite input1x HDMI: HDMI input1x 3.5mm: Analog audio input
- Output:2x BNC: 2K/3G/HD/SD-SDI loop output x21x BNC: Composite loop output1x HDMI: HDMI loop output1x 3.5mm: SDI, HDMI, Analog audio output
- Video Format: CVBS:NTSC / MPAL
- Video Format: SDI:SMPTE ST 2048-2: 2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048x1080i (60 / 59.94 / 50)SMPTE-425M: 1080p (60 / 59.94 / 50)SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 23.98)SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)SMPTE-296M: 720p (60 / 59.94 / 50)SMPTE-125M: 480i (59.94)ITU-R BT.656: 576i (50)
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Are you in search of a reliable and high-performance on-camera monitor for your broadcasting needs? The SWIT Electronics S-1093H 9" Full HD Waveform On-Camera Top LED Monitor is designed to meet the demands of professional field and studio monitoring. Featuring a 9-inch IPS LCD panel with a stunning 1920x1200 resolution, this monitor ensures vibrant and accurate color reproduction with a wide 170-degree viewing angle, making it ideal for critical viewing applications.
The S-1093H supports a variety of input and output interfaces, including 2K/3G/HD/SD-SDI, HDMI, and CVBS, providing versatility for different broadcasting setups. With dual SDI inputs and loop outputs, along with HDMI and CVBS options, this monitor seamlessly integrates into your existing workflow. Additionally, it includes a 3.5mm analog audio input and output, enhancing its audio monitoring capabilities.
This monitor is equipped with advanced features such as waveform, vector scope, and histogram displays, along with up to 16-channel audio meters with alerts. You can select any two audio channels for output, ensuring precise audio monitoring. The peaking focus assist, false color, R/G/B/Mono modes, and H/V delay functions further enhance its utility for broadcast professionals.
The S-1093H also offers TSL UMD and text TALLY display compatibility, supporting TSL 3.1/4.0 protocols with a selection of 1-126 TSL addresses and up to 8 letters displayed. The front and rear TALLY lights, available in red, green, and yellow, can be controlled via the RJ45 (RS485) port, allowing for customizable signal management.
For outdoor use, the included sun hood can be easily attached using screw threads or Velcro tapes, providing optimal visibility in bright conditions. The monitor's LCD is protected by a durable glass overlay, safeguarding it against scratches and damage.
With options for V-mount, Gold mount, or snap-on DV mount battery plates, the SWIT S-1093H is adaptable to various power configurations, ensuring uninterrupted operation during shoots. The USB firmware upgrade capability ensures that your monitor stays up-to-date with the latest features and improvements.
Choose the SWIT Electronics S-1093H for a comprehensive monitoring solution that combines high-definition visuals, robust audio monitoring, and versatile connectivity, all in a compact and durable design.
The S-1093H supports a variety of input and output interfaces, including 2K/3G/HD/SD-SDI, HDMI, and CVBS, providing versatility for different broadcasting setups. With dual SDI inputs and loop outputs, along with HDMI and CVBS options, this monitor seamlessly integrates into your existing workflow. Additionally, it includes a 3.5mm analog audio input and output, enhancing its audio monitoring capabilities.
This monitor is equipped with advanced features such as waveform, vector scope, and histogram displays, along with up to 16-channel audio meters with alerts. You can select any two audio channels for output, ensuring precise audio monitoring. The peaking focus assist, false color, R/G/B/Mono modes, and H/V delay functions further enhance its utility for broadcast professionals.
The S-1093H also offers TSL UMD and text TALLY display compatibility, supporting TSL 3.1/4.0 protocols with a selection of 1-126 TSL addresses and up to 8 letters displayed. The front and rear TALLY lights, available in red, green, and yellow, can be controlled via the RJ45 (RS485) port, allowing for customizable signal management.
For outdoor use, the included sun hood can be easily attached using screw threads or Velcro tapes, providing optimal visibility in bright conditions. The monitor's LCD is protected by a durable glass overlay, safeguarding it against scratches and damage.
With options for V-mount, Gold mount, or snap-on DV mount battery plates, the SWIT S-1093H is adaptable to various power configurations, ensuring uninterrupted operation during shoots. The USB firmware upgrade capability ensures that your monitor stays up-to-date with the latest features and improvements.
Choose the SWIT Electronics S-1093H for a comprehensive monitoring solution that combines high-definition visuals, robust audio monitoring, and versatile connectivity, all in a compact and durable design.
