Wooden Camera D-Box Alexa Mini Gold Mount

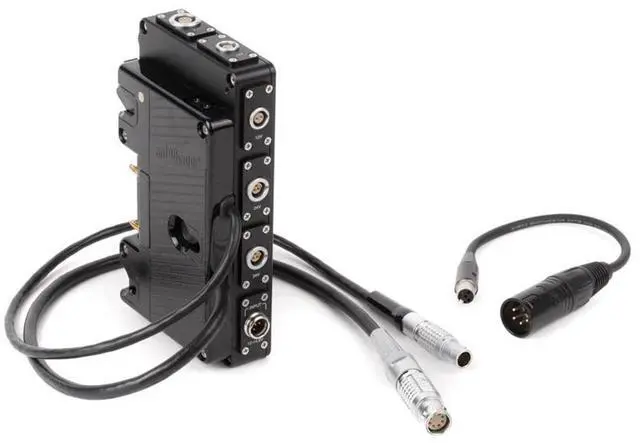

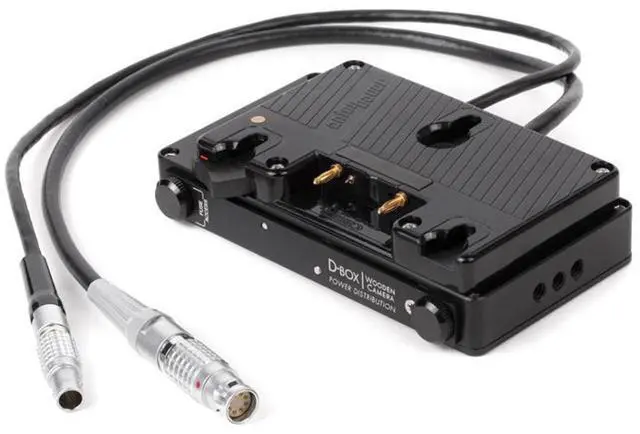

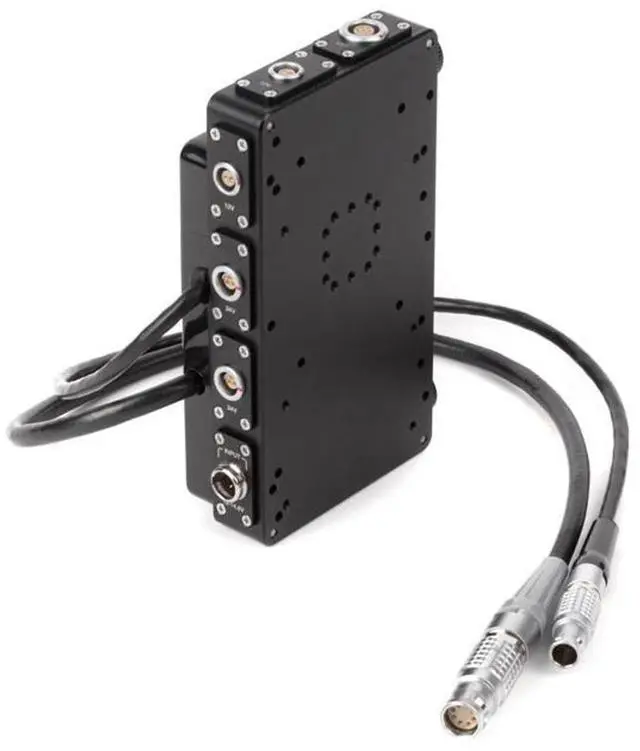

Under the umbrella of superior camera accessories, the D-Box Alexa Mini Gold Mount stands out as a custom adaptation of Wooden Camera's renowned D-Box. This specialized version is designed to enhance power distribution, provide standardized remote start/stop, and offer hot swap capabilities specifically for the ARRI Alexa Mini. The D-Box Alexa Mini Gold Mount features two 16-inch (40cm) cables that extend from the power plate. One cable connects to the 8pin LEMO power plug, while the other links to the 7pin EXT port. The base of the D-Box is equipped with three 1/4-20 holes, enabling direct attachment to the Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).

For those seeking an adjustable mount system, the Battery Slide can be paired with the aforementioned Rod Clamps. The D-Box Alexa Mini Gold Mount is also compatible with the ARRI BAP-1, with detailed instructions included in the package for easy installation. The product features an authentic Anton Bauer plate, which provides an unregulated D-Tap and is hardwired to the D-Box.
The D-Box includes several slots: a 7 pin LEMO - EXT Port that replicates the connector on the rear of the camera and maintains functionality of external communication, R/S, and power; a 2 pin LEMO - 12V Unregulated with ARRI standard wiring that can be swapped for Hirose, 4pin LEMO or D-Tap; a 3 pin Fischer - 24V Regulated with a built-in regulator to convert battery voltage to 24V; and a 4 pin Mini XLR - 12V Input that allows for hot swappable power input with an included 7-inch pigtail cable for a standard 4 pin XLR. The D-Box Alexa Mini Gold Mount is a comprehensive solution for power distribution and control, designed to enhance the functionality and versatility of the ARRI Alexa Mini.
