Wooden Camera D-Box for Sony Venice, V-Mount

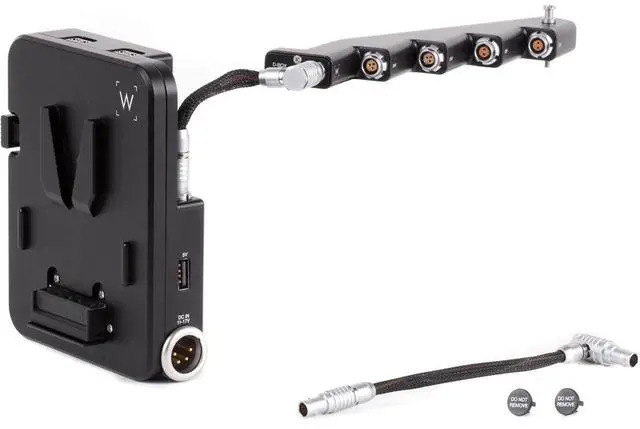

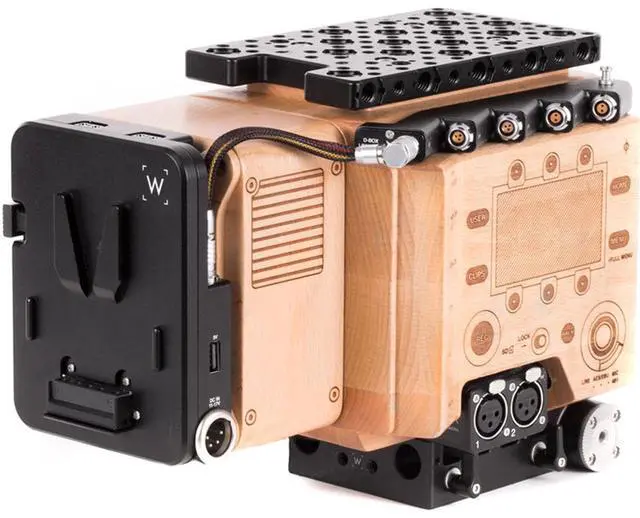

What sets the D-Box for Sony Venice, V-Mount apart is its seamless integration with the Sony Venice camera system, offering a custom-designed power distribution solution that enhances the camera's functionality. This specialized D-Box model is engineered to provide standardized remote start/stop capabilities, hot swap functionality, and a sophisticated power management system, ensuring that your Sony Venice camera operates at peak efficiency. The D-Box's main unit is meticulously crafted to attach securely to the back of the AXS-R7 recorder or directly to the camera's V-Mount plate. Its power strip component mounts effortlessly to the camera's top right side, utilizing a 3pin Fischer connection and the tape hook threaded hole for a stable and reliable fit.

The connectors on the D-Box Power Strip are thoughtfully contoured to complement the camera's profile, ensuring a perfect match and eliminating any potential cable interference. This module is designed to communicate flawlessly with the Sony Venice camera, allowing the use of any ARRI standard start/stop trigger via the 3pin Fischer port, including the ARRI UMC-4 and WCU-4 units. The D-Box's DC input mirrors the camera's 4pin XLR connector, providing versatile power options from an AC Power Supply, an External Power Plate, or a VCLX block battery. This enables continuous power to both the camera and accessories during battery swaps, with the system prioritizing DC input to preserve the onboard battery's charge.

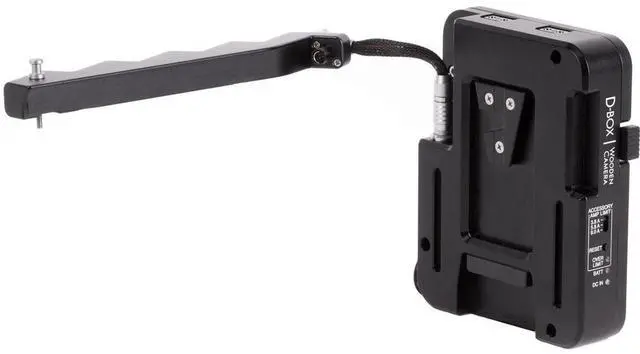

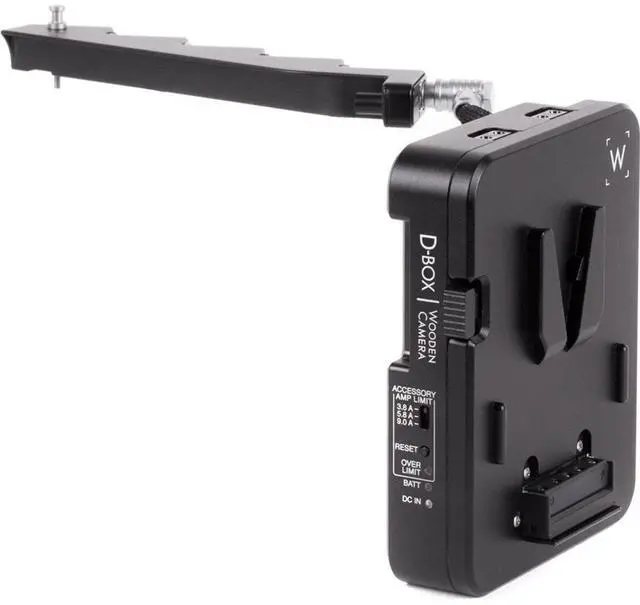

Innovatively replacing physical fuses, the D-Box features a processor-controlled amp limit, adjustable to 3.8, 5.8, or 9 amps via a slide switch on the operator's side. This smart design ensures that if the current limit is exceeded, only the accessory outputs are disabled, allowing the camera to continue operating without interruption. A simple reset button re-enables accessory power once the current load is normalized. The D-Box's "DC IN" and "BATT" LEDs are dual-colored, providing instant visual feedback on battery status: green for voltages above 12.5V, red for below 12V, and orange for intermediate values, with flashing indicating transitional phases. Constructed with the highest quality Anton Bauer components, the V-Mount assembly boasts a unibody power plate design that is both exceptionally durable and lightweight, ensuring reliability and ease of use in demanding production environments. The D-Box for Sony Venice, V-Mount offers a comprehensive array of interfaces, including: - 1x V-Mount Power Plate- 2x 3pin Fischer at 24V with Run Stop, featuring a built-in regulator to convert battery voltage to 24V, supporting a maximum 3A surge and 2.5A sustained, shared between connectors- 2x 2pin LEMO at 12V unregulated, adhering to ARRI standard wiring- 2x D-Tap at 12V unregulated- 1x 5V USB port for powering USB devices- 1x 4pin XLR DC Input, allowing hot swapping with the onboard battery and capable of powering accessories and the camera even without a brick battery attachedThe connectors utilized in this assembly, while not manufactured by LEMO, are produced to the same exacting specifications and are fully LEMO compatible, ensuring a high level of quality and reliability for your professional shooting needs.
