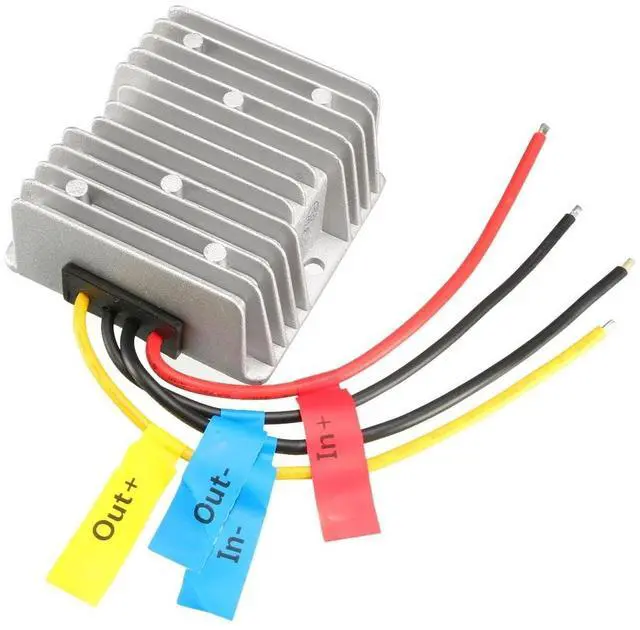

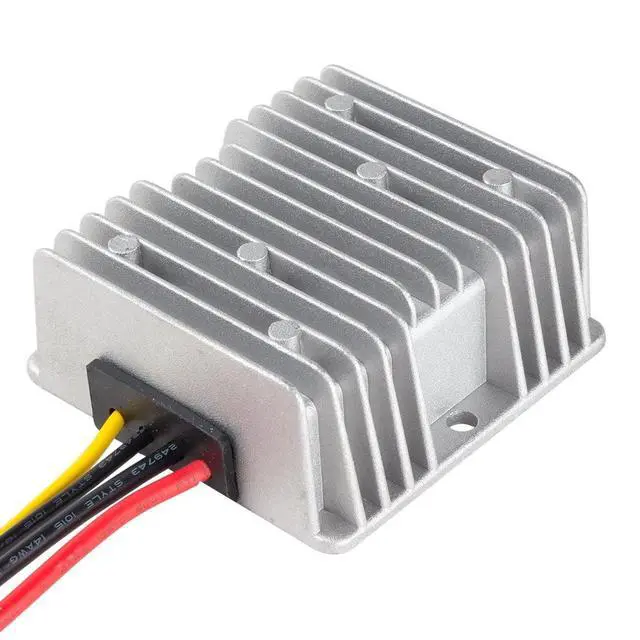

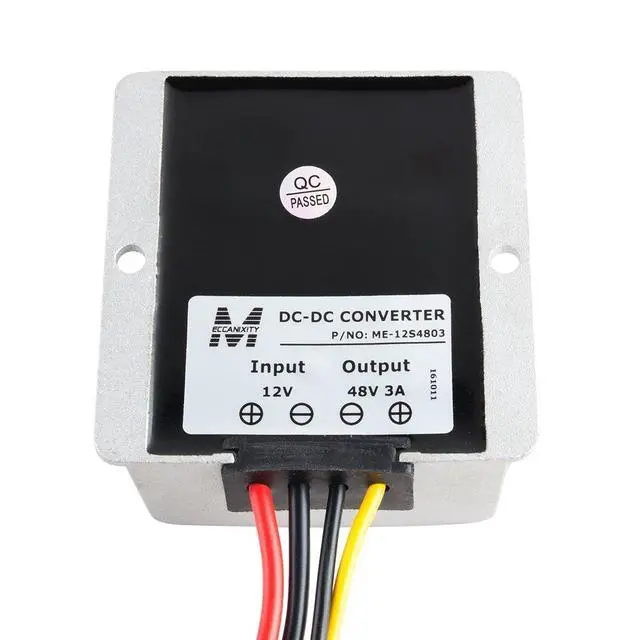

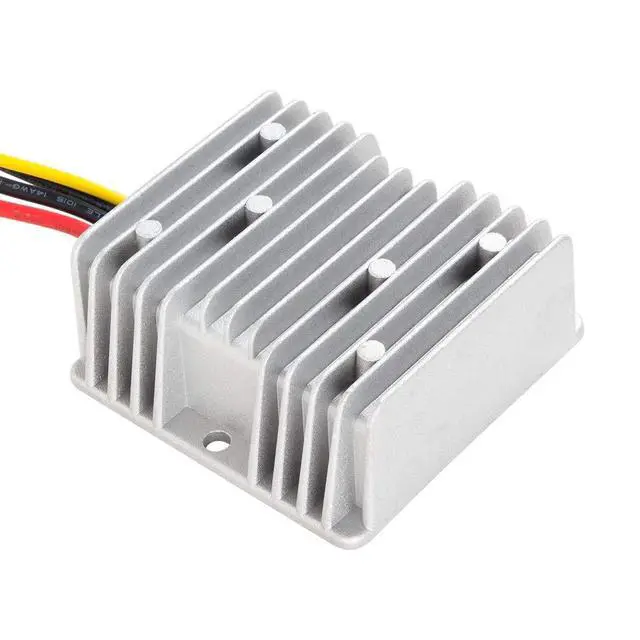

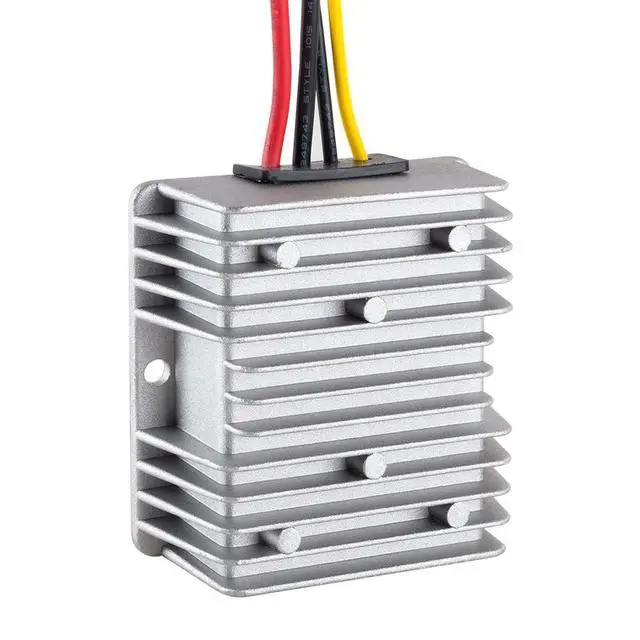

uxcell Voltage Converter Regulator DC/DC DC 12V Step-Up to DC 48V 3A 144W Power Boost Transformer Waterproof
- Waterproof IP68 Voltage Converter Regulator DC 12V to DC 48V 3A 144W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability. Widely used in solar generate electricity, the display screen of bus and taxi device.
- Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name: Waterproof Voltage Converter Regulator DC 12V to
DC 48V 3A 144WFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-16V DC*
Output voltage: DC48V 3A*
Output Rated Power: 144W*
Efficiency: 95% (half load); 94% (full load) *
Output Peak Power: 180W*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 74*74*32mm (L*W*H) *
Weight: 300gPackage
included: 1 x DC 12V to DC 48V 3A Voltage Converter
DC 48V 3A 144WFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications
: *Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-16V DC*
Output voltage: DC48V 3A*
Output Rated Power: 144W*
Efficiency: 95% (half load); 94% (full load) *
Output Peak Power: 180W*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 74*74*32mm (L*W*H) *
Weight: 300gPackage
included: 1 x DC 12V to DC 48V 3A Voltage Converter
