Banana Pi BPI-M2 Zero Quad-Core Open Source Single Board Computer Allwinner H2+ Compatible with Raspberry Pi zero (BPI-M2 Zero)

Introduction

BPI- 4.0 OEM&ODM Successful case H3 for Network security information analysis instrument.

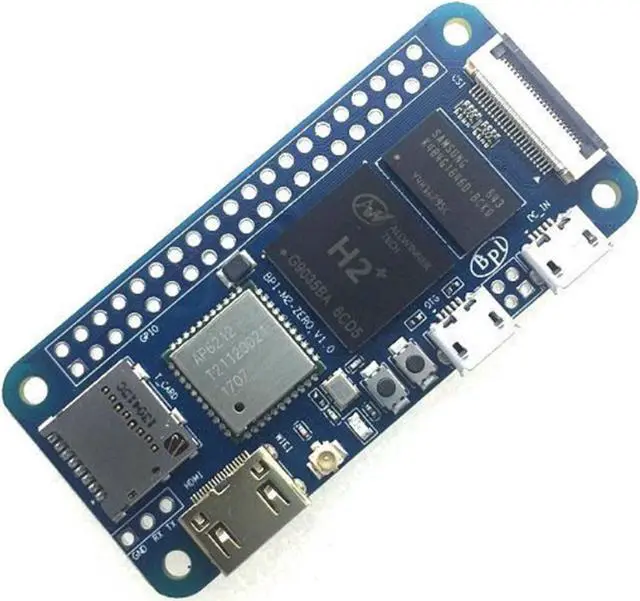

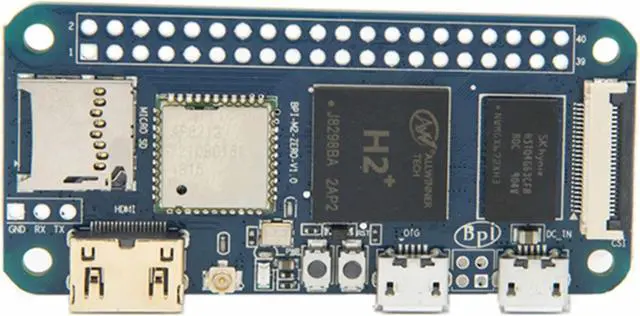

The Banana Pi M2 Zero is an ultra compact single board computer which measures only 65mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3/H2+processor, with 512MB RAM. It's ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.

for Allwinner H2+ chip is EOL, so BPI-M2 Zero will use H3 chip defaults. but image for H2+ also support H3, so all image is same. support H2+ and H3 chip.

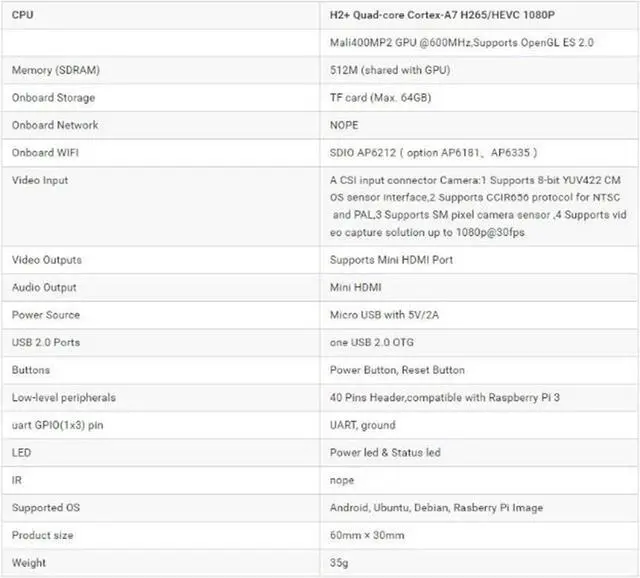

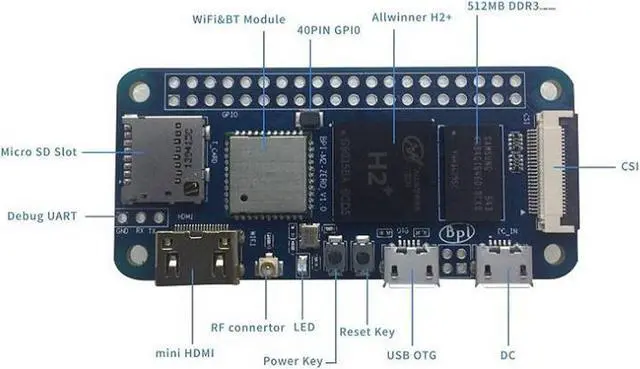

Key Features
-CPU: Allwinner H3/H2+, Quad-core Cortex-A7.
-512MB DDR 3 SDRAM.
-WiFi (AP6212) & Bluetooth onboard.
-Mini HDMI.
-40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc.
