AITRIP MEGA 2560 PRO Embed CH340G/ATMEGA2560-16AU Chip with Male Pin headers Compatible for Arduino Mega2560 Module (2pcs)

Description:

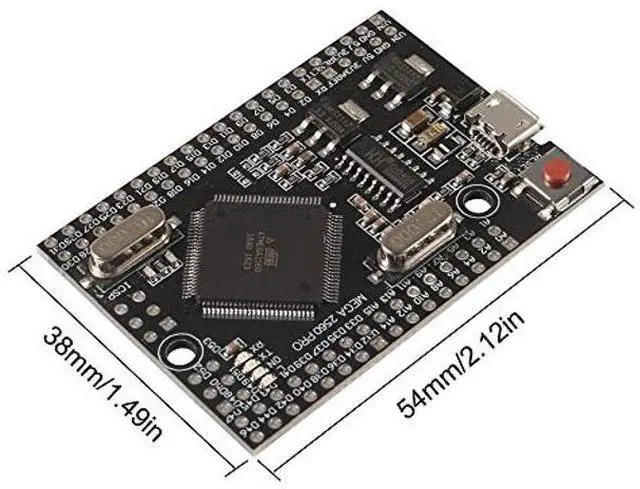

Board have compact size about 38x55mm

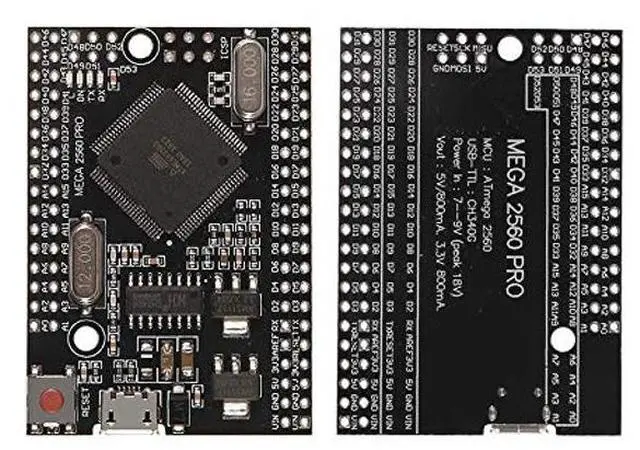

Embed version of Mega 2560 CH340G/ATmega2560 compatible with Arduino Mega 2560 board.
Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G
Mega PRO (Embed) 2560 CH340G / ATmega2560 - connects to the computer via microUSB cable (used for almost all Android smartphones)
The board used the chip CH340G as converter UART-USB

When you work in the frequency 12Mhz, giving a stable result of data exchange (need install drivers to computer)
You can supply power to board through the MicroUSB connector or to power pinheaders. The voltage regulator (LDO) can deal with incoming voltage from 6V to 9V (peack 18V) DC. Output current for 5V - about 800mA, for 3.3V - about

800mA

Product information:
Microcontroller: ATmega2560
DC Current for 5V Pin: 800 mA
DC Current for 3.3V Pin: 800 mA
Operating Voltage: 5V
Input Voltage (limit): 12V
Input Voltage (recommended): 6-9V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
LED_BUILTIN: 13

Package included:

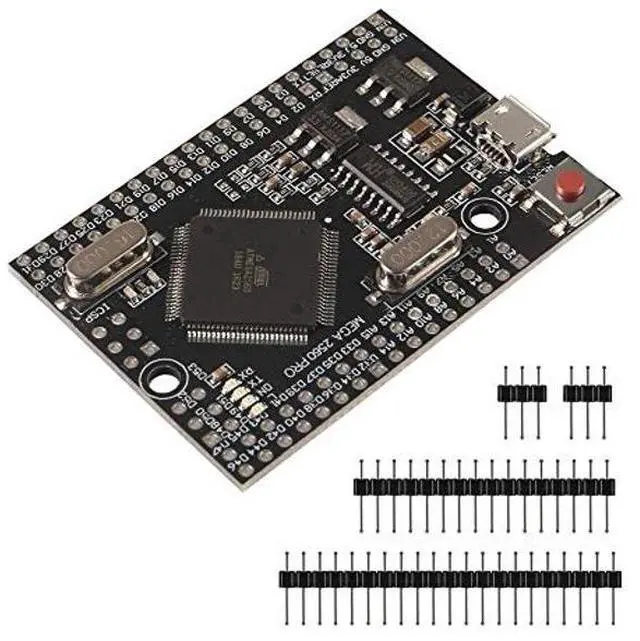

1* MEGA 2560 PRO Embed CH340G/ATMEGA2560-16AU Development Board
