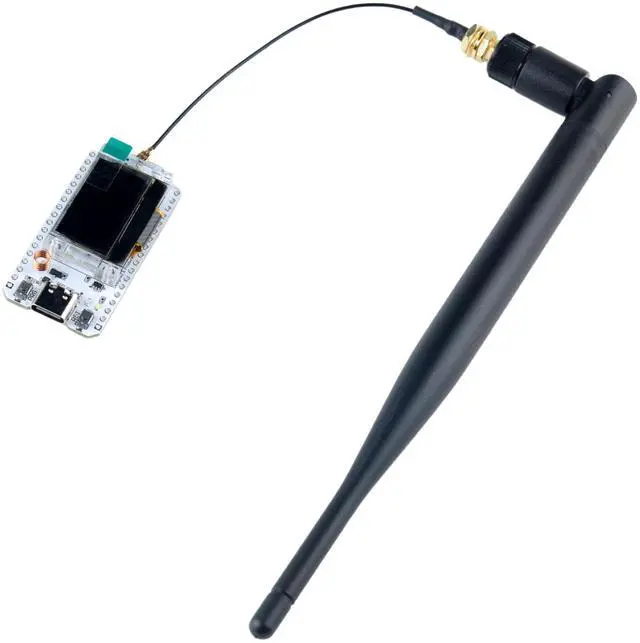

ESP32 LoRa V3 915MHz ESP32S3 WiFi BT Development Board with 0.96" OLED Display + 5DBi LoRa Antenna, SX1262 LoRa32 Kit for Arduino Meshtastic IoT
- LoRa + Wi-Fi + Bluetooth + OLED display classic IoT dev-board, perfect for Meshtastic LoRaWAN
- MCU: ESP32-S3FN8, LoRa Chip: SX1262, USB Socket: Type-C, USB to Serial Chip: CP2102
- Onboard SH1.25-2 battery interface, support 3.7V lithium battery to power, lithium battery not inlcuded, recommended for type C 5V power
- If your computer cannot connect to the LoRa board, please install CP210x driver first. Link: https://resource(DOT)heltec(DOT)cn/download/CP210x
- The WiFi LoRa 32 don't have an external PSRAM, Bluetooth and Wi-Fi can not be used at the same time
- It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers
- What you will get: 1 X ESP32 Lora V3 OLED development board + 1 X 915MHz LoRa Antenna with U.FL/IPEX to SMA Connector Cable + 1 X JST 1.25mm-2P Connector + 2.54 pin ( NO soldering, soldering required )
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
915MHz ESP32 LoRa V3 Development Board

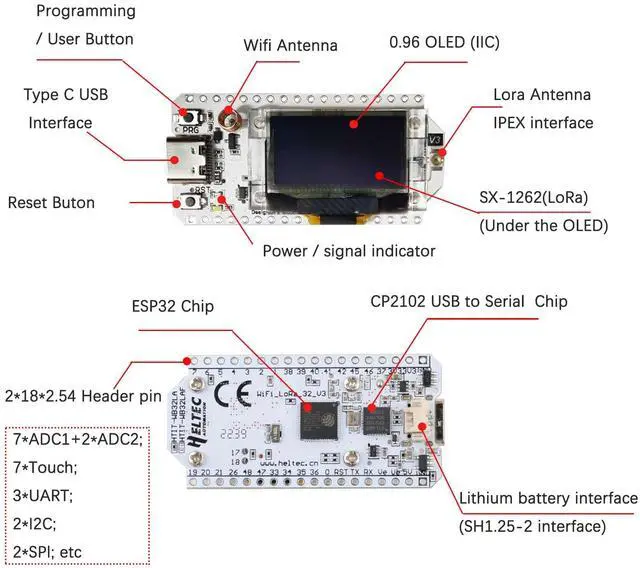

Features:
- Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Blue-tooth three network connections, onboard Wi-Fi, Blue-tooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
- Onboard 0.96 -inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.
- With good RF circuit design and low-power design.
Master Chip: ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor)
LoRa Node Chip: SX1262
USB to Serial Chip: CP2102
Frequency: 863~928MHz
Max.
TX Power: 21+-1dBm
Max.
Receiving sensitivity: -134dBm@SF12 BW=125KHz
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5 (LE)

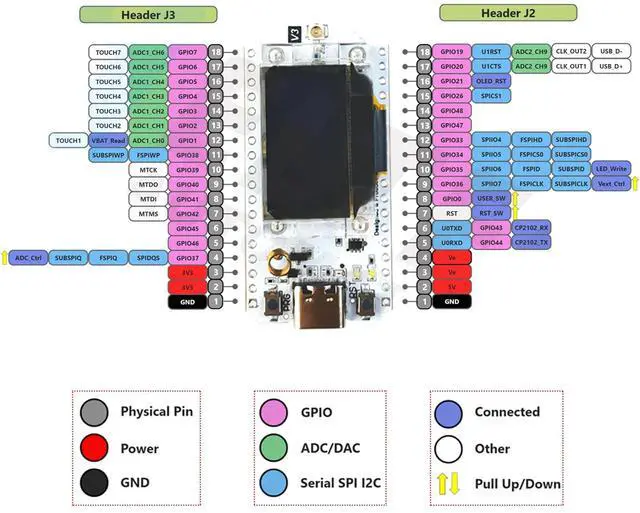

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2* 1.25 lithium battery interface; LoRa ANT(IPEX 1.0 ); 2*18* 2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Operating Temperature: -20 ~ 70

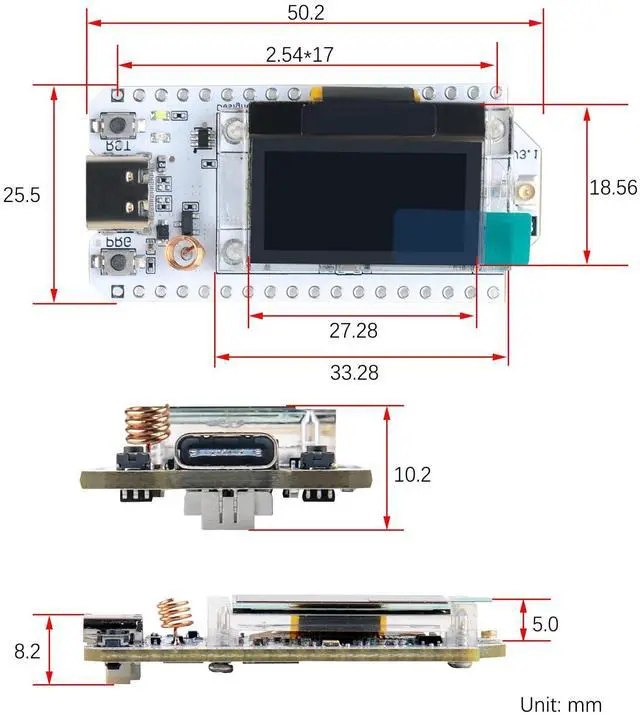

Dimensions: 50.2 * 25.5 * 10.2 mm

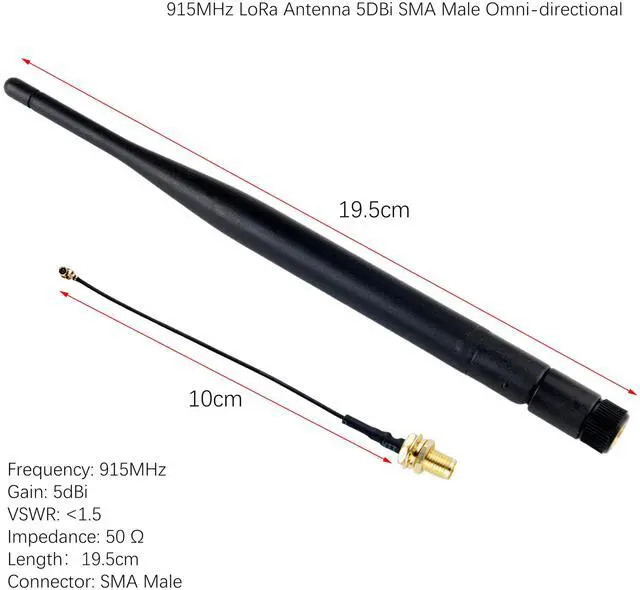

915MHz LoRa Antenna 5DBi SMA Male with U. FL/IPEX to SMA Connector Cable
Frequency: 915MHz
Gain: 5dBi
VSWR: <1.5
Impedance: 50 O
Antenna Length: 19.5 cm
Antenna Connector: SMA Male
U. FL/IPEX to
SMA Connector Cable Length: 10cm
Package Includes:
1 X ESP32 Lora V3 OLED development board
1 X JST 1.25 mm-2P Connector
2.54 pin ( NO soldering, soldering required )
1 X 915MHz LoRa Antenna with U. FL/IPEX to SMA Connector Cable
Features:
- Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Blue-tooth three network connections, onboard Wi-Fi, Blue-tooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
- Onboard 0.96 -inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.
- With good RF circuit design and low-power design.
Specifications
Master Chip: ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor)
LoRa Node Chip: SX1262
USB to Serial Chip: CP2102
Frequency: 863~928MHz
Max.
TX Power: 21+-1dBm
Max.
Receiving sensitivity: -134dBm@SF12 BW=125KHz
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5 (LE)
Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2* 1.25 lithium battery interface; LoRa ANT(IPEX 1.0 ); 2*18* 2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Operating Temperature: -20 ~ 70
Dimensions: 50.2 * 25.5 * 10.2 mm
915MHz LoRa Antenna 5DBi SMA Male with U. FL/IPEX to SMA Connector Cable
Frequency: 915MHz
Gain: 5dBi
VSWR: <1.5
Impedance: 50 O
Antenna Length: 19.5 cm
Antenna Connector: SMA Male
U. FL/IPEX to
SMA Connector Cable Length: 10cm
Package Includes:
1 X ESP32 Lora V3 OLED development board
1 X JST 1.25 mm-2P Connector
2.54 pin ( NO soldering, soldering required )
1 X 915MHz LoRa Antenna with U. FL/IPEX to SMA Connector Cable
