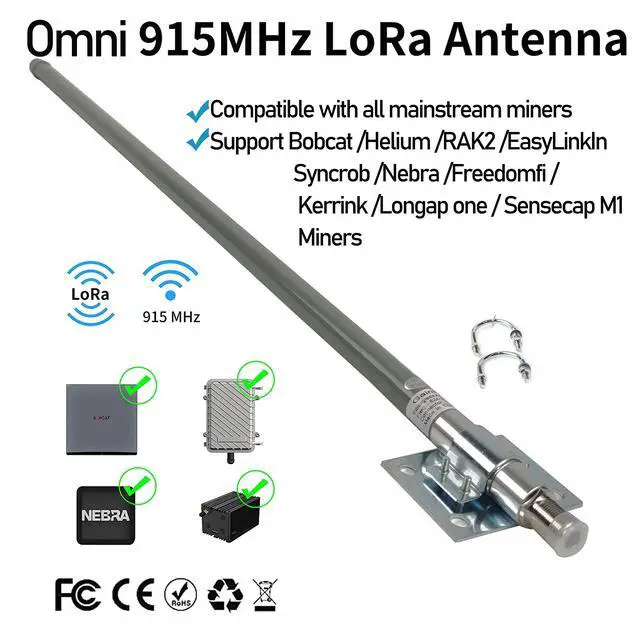

Lora Antenna for Meshtastic/Lora/Helium Gateway, 915mhz/ 10dbi/ 35.4inch/ 16.5ft RP-SMA Cable/SMA Adapter
- Applications Include: Low Data Rate Communication Networks, Long Distance LoRa Nodes, IoT & M2M Nodes, Industrial & Environmental Monitoring, Smart Metering Applications, Inventory Tracking, Vending Machine Data & Monitoring, LoRaWAN, Multipoint and NLOS Applications, Wireless Video and Security Systems

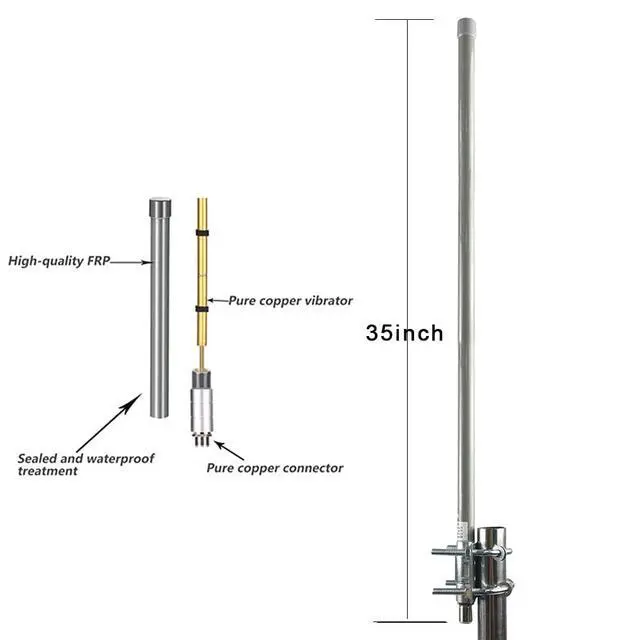

- N Female connector- Outdoor weatherproof fiberglass with high gloss urethane finish - Integrated ground plane - No additional ground plane needed - Mast sold separately
- with 16.5FT RG58 SMA cable ,include 1pcs RP-SMA adapter
- Weatherproof. Built with Fiberglass & Aluminum Alloy. Guaranteed 50-100 nm range improvement.

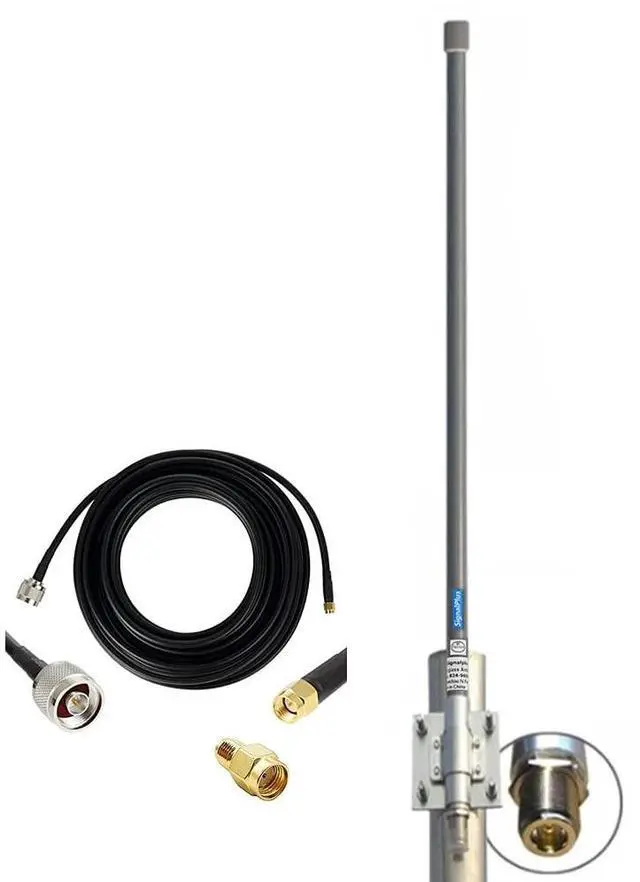

- Packing Listing : 1xAntenna & 1X5 meter of SMA RG58 Cable & 1X SMA Female to RP-SMA Male Adapter & 1set U-clip code
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Category: omnidirectional antenna.
Gain (DBI): 10. Vertical lobe width (); 17.25.
Frequency range (MHz): 824-960.
Antenna length (m): 0.9 meters.
Antenna weight (kg): 0.8.
VSWR: 1.5.
Polarization mode: vertical polarization.
Input impedance: 50.
Maximum power: 150W.
Joint type: n female.

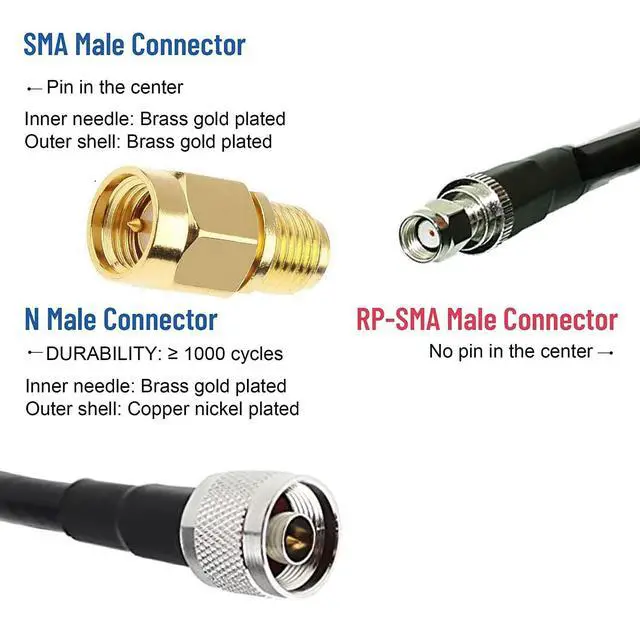

cable connector: SMA and RP-SMA
Cover material: FRP.
Limit wind speed: 60m / S.
Gain (DBI): 10. Vertical lobe width (); 17.25.
Frequency range (MHz): 824-960.
Antenna length (m): 0.9 meters.
Antenna weight (kg): 0.8.
VSWR: 1.5.
Polarization mode: vertical polarization.
Input impedance: 50.
Maximum power: 150W.
Joint type: n female.
cable connector: SMA and RP-SMA
Cover material: FRP.
Limit wind speed: 60m / S.
