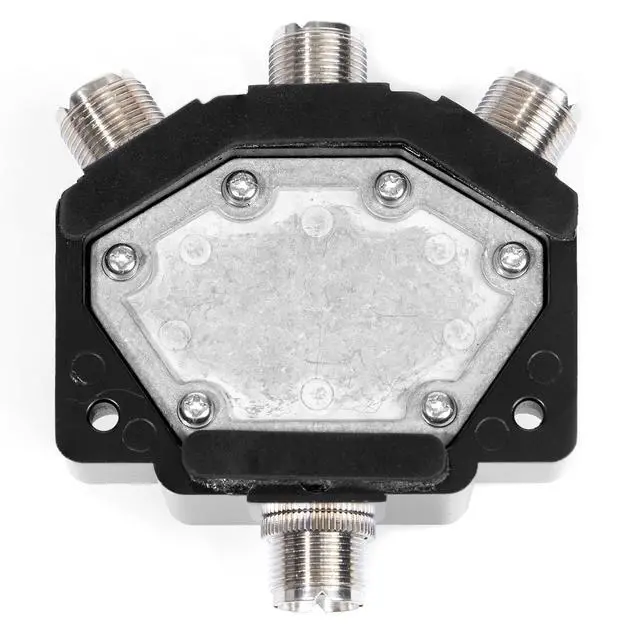

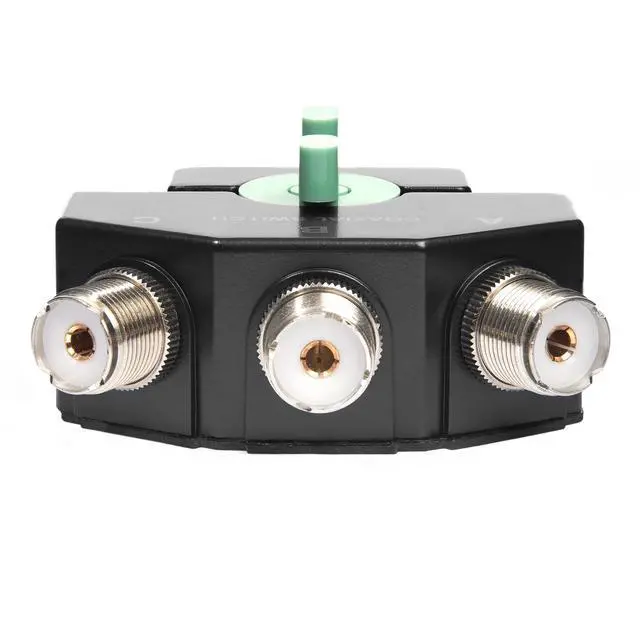

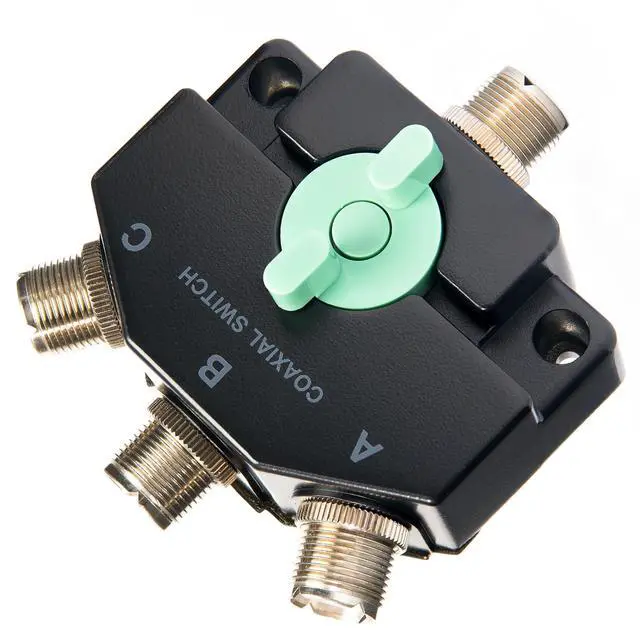

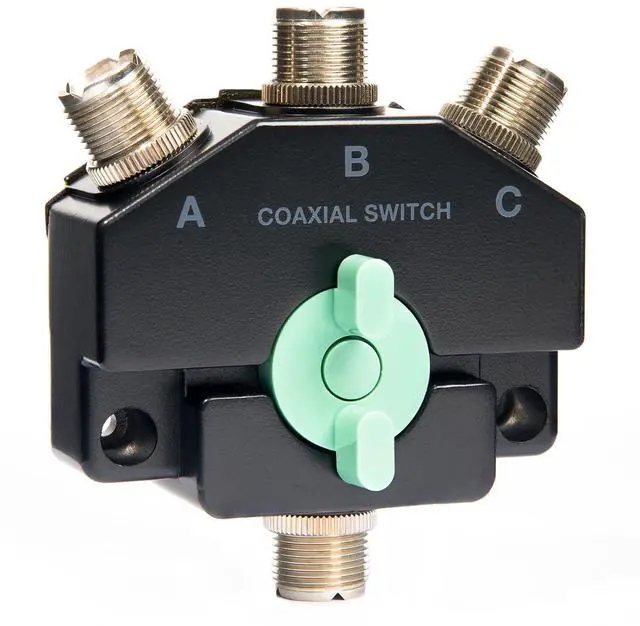

Fumei CO301M Heavy Duty Wideband Three-Position Coax Switch DC-800MHz Antenna Switch with SO-239 Connectors
- Heavy duty coax switch, up to 1,500 watts at HF frequencies
- Low Insertion Loss: DC-500MHz < 0.1dB, 500-800MHz < 0.15dB
- High Isolation: DC-500MHz > 60dB, 500-800MHz > 50dB
- Frequency Range and VSWR: DC-500Mhz < 1.1, 500-800MHz < 1.2
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This is a well built 3 position RF switch with SO239 Connectors. Works in either direction for hooking up multiple radios or antennas. Made of environmental protection zinc alloy materials.
Frequency: DC-800MHzMax
Power Rating: 1.5 KW DC-30MHz, 1 KW 30-150MHz, 500W 150-800MHzInsertion
Loss: Less than 0.1 dB DC-500MHz, Less
than 0.15 dB 500-800MHzIsolation: More than 60dB DC-500MHz, More
than 50dB 500-800MHzVSWR: Less than 1.1 DC-500Mhz), Less
than 1.2 500-800MHzImpedance: 50
OhmConnector: SO-239 (UHF
Female) Dimensions: 80
x 41 x 60mmWeight: 575gPackage
Includes: 1 x CO301M Coaxial Switch
Specifications
:Frequency: DC-800MHzMax
Power Rating: 1.5 KW DC-30MHz, 1 KW 30-150MHz, 500W 150-800MHzInsertion
Loss: Less than 0.1 dB DC-500MHz, Less
than 0.15 dB 500-800MHzIsolation: More than 60dB DC-500MHz, More
than 50dB 500-800MHzVSWR: Less than 1.1 DC-500Mhz), Less
than 1.2 500-800MHzImpedance: 50
OhmConnector: SO-239 (UHF
Female) Dimensions: 80
x 41 x 60mmWeight: 575gPackage
Includes: 1 x CO301M Coaxial Switch
