TP-Link TL-SG1008D 8-Port 10/100/1000M Gigabit Switch

Specifications

Mfr
Part Number: TL-SG1008D
Features: Supports IEEE 802.3 x flow control for Full Duplex mode and backpressure for Half Duplex mode Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput Supports MAC address auto-learning and auto-aging LED indicators for monitoring power; link; activity Plastic case; desktop or wall-mounting design External power adapter supply
Standards and Protocols: IEEE 802.3; 802.3 u; 802.3 ab; 802.3 x; CSMA/CD;

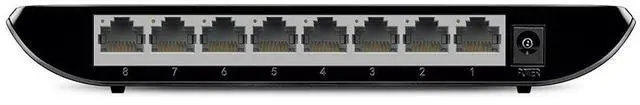

TCP/IP Ports: 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto
MDI/MDIX) Basic Function: Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE 802.3 x flow control for Full-Duplex Mode and backpressure for
Half-Duplex Mode Backbound Bandwidth: 16Gbps
MAC Address Table: 4k
Forwarding Rate:
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port
Transmission Method: Store-and-Forward
Network Media:
10Base-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100A
STP (maximum 100m) 100Base-Tx: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100A
STP (maximum 100m) 1000Base-T: UTP category 5; 5e cable (maximum 100m)
LED Indicator: Power; 10/100M; 1000M
Safety & Emission: FCC;

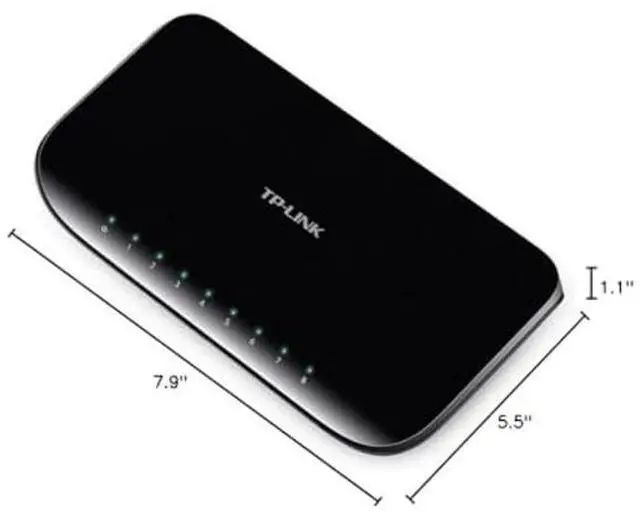

CE Power: External Power Adapter Dimensions (WxDxH) 7.9 x 5.5 x 1.1 inch / 200.0 x 140.0 x 28.0 mm
