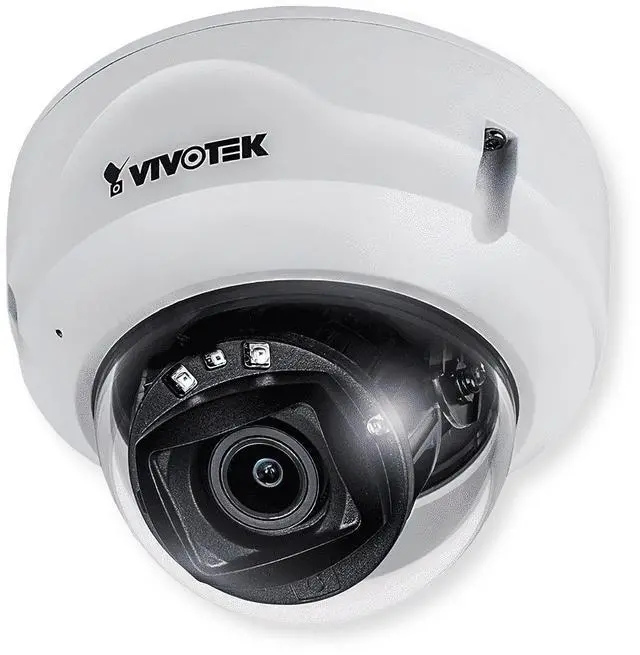

VIVOTEK FD839-EHV-1Y 5MP Fixed Dome Camera, 30 m IR, IP66, Vandal Proof, WDR Pro, PoE, Security Camera

VIVOTEK FD839-EHV-1Y 5MP Fixed Dome Camera, 30 m IR, IP66, Vandal Proof, WDR Pro, PoE, Security CameraThe VIVOTEK FD839-EHV-1Y is a robust 5MP outdoor-ready IP dome designed for reliable, wideangle coverage. It features a fixed 2.8 mm lens, 30 m IR night vision, WDR Pro for challenging lighting, and an IP66/IK10-rated housing for harsh environments. With builtin oneway audio (microphone), H. 265 compression, PoE, and onboard storage including a builtin 256 GB industrial microSD card, its ideal for dependable, 24/7 surveillance.

Key Features 5MP resolution (2560 1920) for crisp, detailed video coverage. Fixed 2.8 mm lens delivering a wide 103 horizontal field of view. IR night vision up to 30 meters for clear lowlight performance. Durable IP66 weather resistance and IK10 vandal resistance for outdoor use. WDR Pro balances scenes with strong backlighting and high contrast. PoE ( 802.3 af) for simple, singlecable installation. H. 265, H. 264, and MJPEG compression reduce bandwidth and storage needs. Builtin microphone (oneway audio) with audio detection and tamper detection. Builtin 256 GB industrial microSD card for reliable onboard recording.

Specifications

Sensor: 1/ 2.7"
Progressive CMOS Resolution: 2560 1920 (5MP)
Lens: Fixed-focal 2.8 mm; Aperture F 2.0; Fixed iris Field of
View: 103 (H) / 76 (V) / 134 (D)
Night Vision: IR up to 30 m; Day/Night with IR-cut filter
WDR: WDR Pro
Video Codec: H. 265 / H. 264 / MJPEG
Frame Rate: Up to 15 fps at 2560 1920
Audio: Oneway audio; builtin microphone (effective range ~5 m)
Onboard Storage: MicroSD/SDHC/SDXC slot; builtin 256 GB industrial microSD
Network/Protocols: 10/100 Mbps Ethernet (RJ45); IPv4/IPv6, HTTP/HTTPS, TLS 1.2, TCP/IP, UDP, RTSP/RTP/RTCP, NTP, QoS; WebRTC supported
Ingress Protection: IP66
Vandal Resistance: IK10
Power: PoE (IEEE 802.3 af Class 0); Max consumption 8.55 W (IR on)
Operating Temperature: Startup 30C to 50C (13F to 122F); Working 40C to 60C (40F to 140F, IR off) / 40C to 50C (40F to 122F,
IR on) Humidity: Up to 98% RH (noncondensing)
Dimensions: 129 94 mm
Weight: 605 g
Body: Plastic
