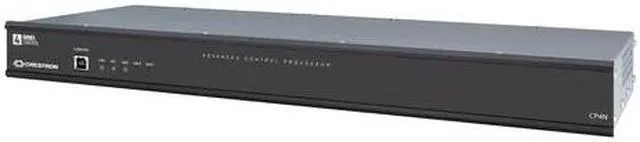

Crestron CP4 4-Series High Performance Rack-Mountable Control System (NOB)

Crestron CP4 4-Series HighPerformance Rack-Mountable Control System (NOB)

Brand:  Crestron

Model:  CP4

Product Type:  Control System

Ethernet:  100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet™ and IP1, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client

Cresnet Network:  Cresnet master mode

USB:  Supports USB mass storage class devices via the rear panel USB 2.0 host port, supports computer console via the front panel USB 2.0 device port

RS-232/422/485:  For 2-way device control and monitoring, COM port supports RS232 up to 115.2k baud with software handshaking, one port also supports RS422 or RS485 and hardware handshaking

IR/Serial:  Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5 V) up to 115.2k baud

SDRAM:  2 GB

Flash:  8 GB

Memory Card:  Supports SD and SDHC cards up to 32 GB

RELAY OUTPUT 1–8:  8-pin 3.5 mm detachable terminal blocks; Comprises (8) normally open, isolated relays; Rated 1 A, 30 VAC/VDC; MOV arc suppression across contacts

I/O 1–8:  9-pin 3.5 mm detachable terminal block; Comprises (8) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24 VDC, input impedance 20k Ω, logic threshold >3.125 V low/0 and <1.875 V high/1; Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10 VDC, protected to 24 VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5 V, 2k Ω pull-up resistor per pin

COM 1:  5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/422/485 port;Up to 115.2k baud; hardware and software handshaking support

COM 2–3:  3-pin 3.5 mm detachable terminal blocks; Bidirectional RS-232 ports; Up to 115.2k baud; software handshaking support

MEMORY:  SD memory card slot; Accepts one SD or SDHC card up to 32 GB for storage of log files

USB:  USB Type A connector, female;USB 2.0 port for storage devices

LAN:  8-pin RJ45 connector, female;100/1000Base-TX Ethernet port

NET:  4-pin 3.5 mm detachable terminal block; Cresnet master port; Outputs power to Cresnet devices only if the included power pack is connected to the 24 VDC power input jack;Alternately functions as a Cresnet power input to power the unit from a Cresnet power supply;

COMPUTER (front):  USB Type B connector, female; USB 2.0 computer console port;

PWR:  Green LED, indicates operating power is supplied from the power pack or Cresnet power supply

NET:  Amber LED, indicates communication with Cresnet devices

MSG:  Red LED, indicates control processor has generated an error message

HW-R:  Recessed push button for hardware reset

SW-R:  Recessed push button for software reset
