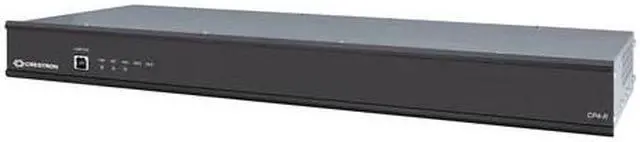

Crestron CP4-R 4-Series Control Processor for Crestron Home OS (NOB)

Crestron CP4-R 4-Series Control Processor for Crestron Home OS

Brand:   Crestron

Model:   CP4-R

Product Type:   Control Processor

Condition:   New Open Box

NOTE:  "90-Day Warranty from Seller Only"

Ethernet:   100/1000 Mbps, autoswitching, auto-negotiating, autodiscovery, full/half duplex, industrystandard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 1402 compliant encryption, IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® software authentication

USB:   Supports USB mass storage class devices via the rear panel USB 2.0 host port, supports computer console via the front panel USB 2.0 device port

RS232/422/485:   For 2way device control and monitoring, all ports support RS232 up to 115.2k baud with software handshaking, one port also supports RS422 or RS485 and hardware handshaking

BACnet™ network/IP:   Supports up to 2000 BACnet objects

SDRAM:   4 GB

Flash:   8 GB

Memory Card:   Supports SD and SDHC cards up to 32 GB (4 GB included)

LAN:   (1) 8pin RJ-45 connector, female; 100BASETX/1000BASE-T Ethernet port

USB:   (1) USB Type-A connector, female; USB 2.0 port for storage devices

COM 1:  (1) 5pin 3.5 mm detachable terminal block;Bidirectional RS232/422/485 port; Up to 115.2k baud; hardware and software handshaking support

COM 2–3:  (2) 3pin 3.5 mm detachable terminal blocks; Bidirectional RS232 ports;Up to 115.2k baud; software handshaking support

PWR:  (1) Green LED, indicates operating power is supplied from the power pack or Cresnet power supply

NET:  (1) Amber LED, indicates communication with Cresnet devices

MSG:  (1) Red LED, indicates control processor has generated an error message

HW-R:  (1) Recessed push button for hardware reset

SW-R:  (1) Recessed push button for software reset

LAN (rear):  (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
