BUCIER Quad NVMe PCIe Adapter M.2 NVMe SSD to PCI-e 4.0 3.0 x16 Card with Individual LED Indicator Heat Sink Support 2230 2242 2260 2280 NVMe SSD (PCI-e Bifurcation Required)
- Quad NVMe PCIe AdapterThis adapter allows you to add 4x NVMe SSDs simultaneously via PCI-e 4.0/3.0 x16 slot on the MOBO which is required to support PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps.

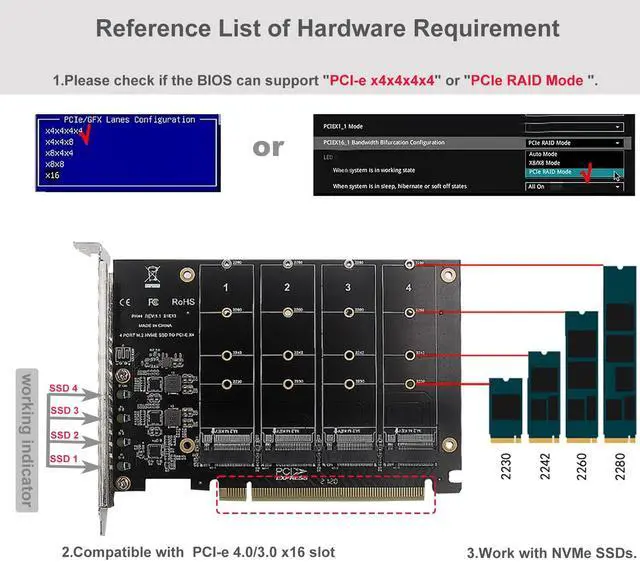

- Hardware requirementThe PCI-e 4.0/3.0 x16 Slot on Mobo is required to support PCIe x16 Bifurcation itself and could be set as"PCI-e x4x4x4x4" in BIOS. All of the SSDs are M.2 (M Key) NVMe SSD. Besides, the CPU has enough channels supported.

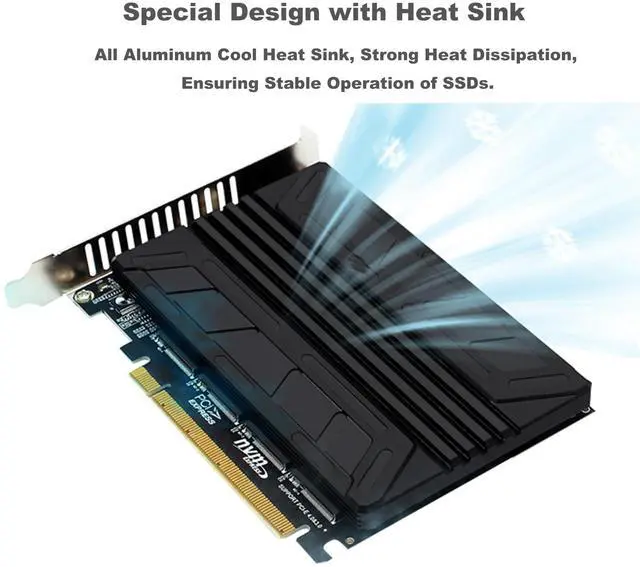

- Heat sink & LED indicatorThe aluminum heat sink ensure stable operation of the SSD and will not cause a decrease in SSD transmission speed due to excessive temperature. The individual LED Indicator will show each SSD's Working Status.

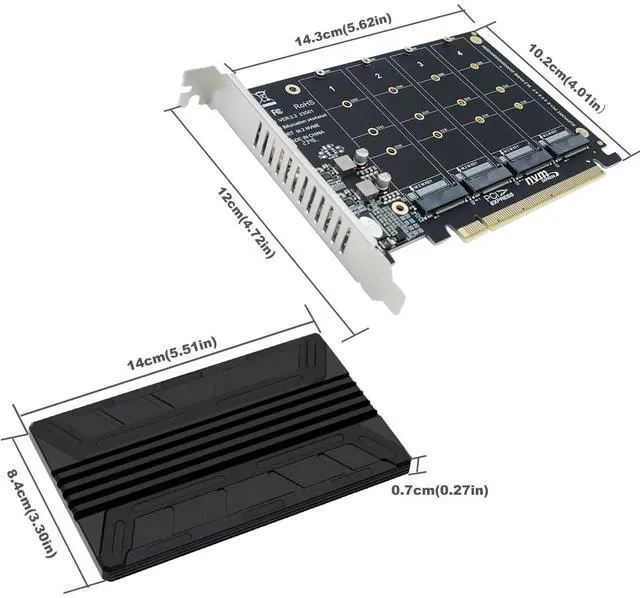

- CompatibilityCompatible with M.2 PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm.(Do not support any M.2 (SATA-Based B+M Key) SSD); Motherboard: X299, X399 and Most Servers supporting PCIe x16 Bifurcation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
The Quad NVMe PCIe Adapter allows you to add 4x NVMe SSDs simultaneously via PCI-e 4.0/3.0 x16 slot on the MOBO.
Specification:
Item Type: M.2 NVME SSD to PCIE X16 Adapter
Material: PCB
Support Hard Disk: M.2 NVME Protocol SSD, M.2 PCIE Device
Transmission Speed: 4x32Gbps
Motherboard support:
The PCI-e 4.0/3.0 x16 Slot on Mobo is required to support PCIe x16 Bifurcation itself and could be set as"PCI-e x4x4x4x4" in BIOS.
Compatible with:
The following motherboards have been verified to support PCIe Bifurcation.
GIGABYTE: X299X AORUS MASTER LGA 2066X, X299 AORUS, X299X DESIGNARE 10G, X299 UD4 PRO, X570 GAMING X, X570 AORUS ELITE,X570I AORUS PRO B450M AORUS ELITE, EVGA X299 FTW-K (need to update the BIOS to the latest version), EVGA X299 DARK (need to update the BIOS to the latest version).
ASROCK:X570 CREATOR, X570 STEEL LEGEND, X570 TAICHI, X299 TAICHI, X299 DESIGNER, X399 TAICHI
SUPERMICRO:X10 SDV, X11DAI-N
ASUS: ASUS PRIME X299-A II, ASUS PRIME X299-DELUSE II, ROG STRIX X570-I GAMING, ROG STRIX X570-F GAMING ,ROG STRIX, X570-E GAMING, ROG CROSSHAIR VIII DARK HERO, ROG STRIX TRX40-XE GAMING, ROG RAMPAGE VI EXREME ENCORE, ASUS PRIME Z390-P, TUF, Z390-PLUS GAMING, ROG RAMPAGE VI EXTREME, ROG RAMPAGE VI APEX, ROG STRIX X299-XE GAMING, ROG STRIX X299-E GAMING, PRIME X299-DELUXE, PRIME X299-A, TUF X299 MARK 1, TUF X299 MARK 2, TUF GAMING X570-PLUS, More model please check ASUS support/FAQ/1037507

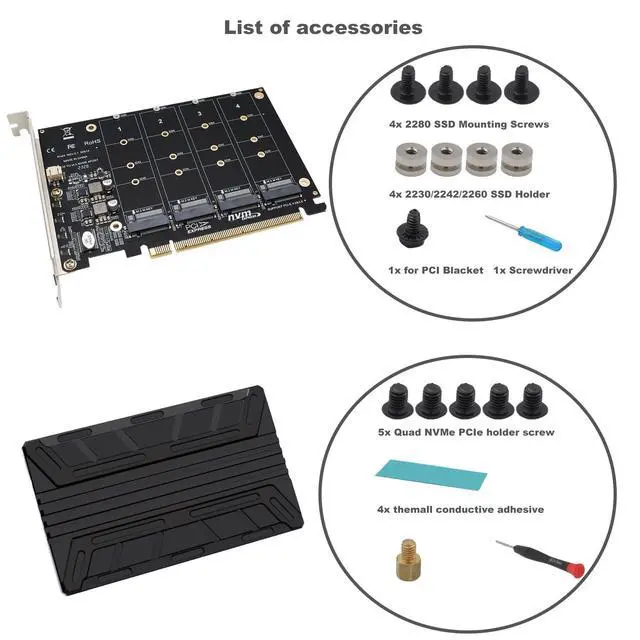

Package List:
1 x Expansion Card
5 x Nuts
5 x Screws
1 x Screwdriver
Additional Features
- NoteDo not Support Hardware Raid, only support the formation of soft raid in Win10 , or you may build raid via Third-party Software, and the 4 SSDs should be same model. The motherboard need support "PCIEX16 Bifurcation",otherwise, only one M.2 SSD can be recognized.
