Mercury MR16OUT-S3 16-Output Series-3 Interface Panel Module(NOB)
- Brand: Mercury
- Model: MR16OUT-S3
- Product Type: Interface Panel Module
- Condition: New Open Box
- Note: 90 Days Warranty from Seller Only
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

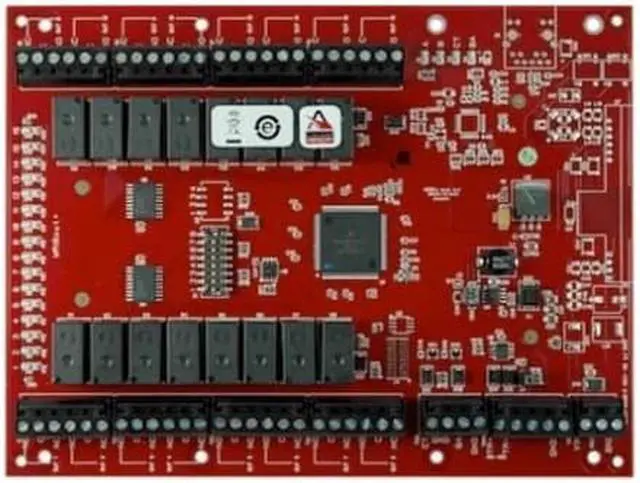

Mercury MR16OUT-S3 16-Output Series-3 Interface Panel Module(NOB)
Brand: Mercury
Model: MR16OUT-S3
Product Type: Interface Panel Module
Primary Power: 12-24 VDC +/- 10%, 1100mA maximum
Host Communication: RS485, 2-wire, 4,000 (twisted pair with shield, Belden 9841)
Output Relays: Sixteen Form-C Relays: Normally open contact (NO): 5A @ 30 VDC resistive Normally closed contact (NC): 3A @ 30 VDC resistive
Inputs 2 Dedicated: Tamper and Power Monitor
Storage Temperature: -55° - 85° C
Operational Temperature: 0° - 70° C
Humidity Temperature: 5% to 95% RHNC
Features
16 programmable relay outputs; 2 dedicated inputs
AES 128/256 Data Encryption
UL 294 recognized, CE compliant, FCC, RoHS
Easily integrates lighting, heating/ cooling, door or elevator control systems
Initiates commands by operator, by time schedules, or by events
Built-in capacity to control and respond to external device commands
