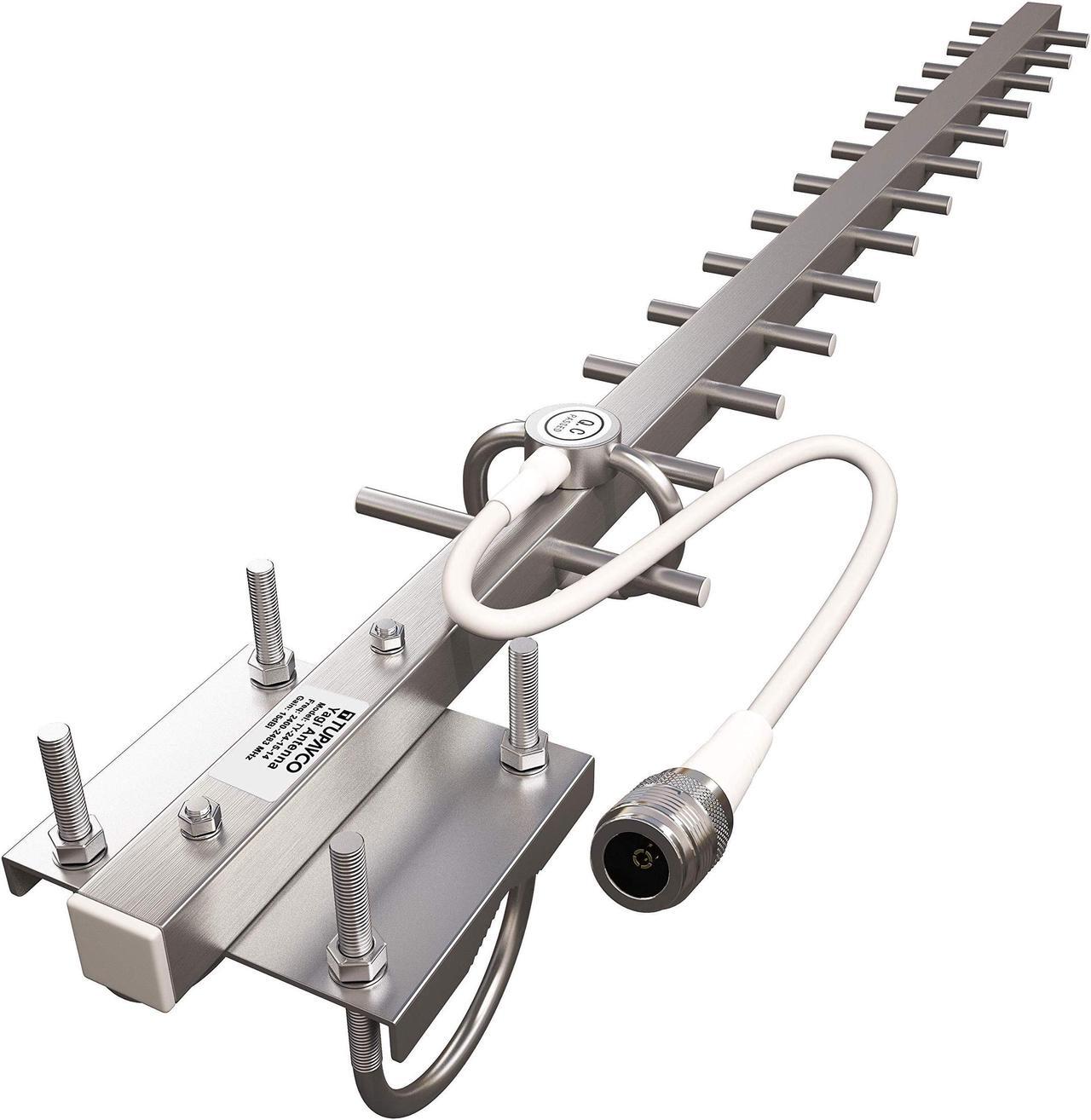

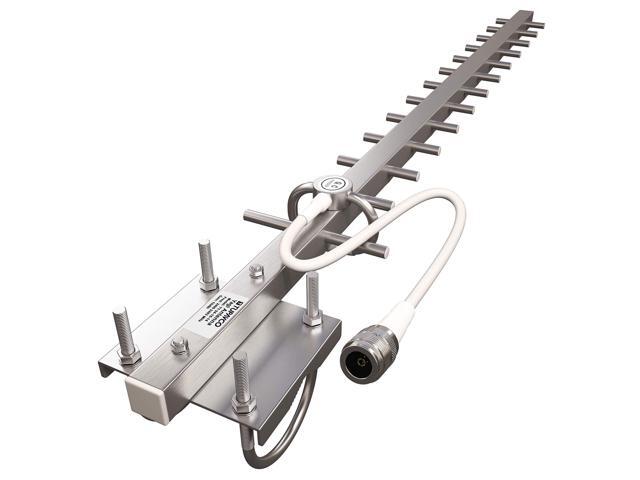

Yagi WiFi Antenna 2.4GHz (15dBi) Outdoor Directional Signal (H:30deg V:25deg) Long Distance Range (High-Gain Weatherproof) Wireless Network (Pole Mount) N-Female Pigtail Connector Tupavco TP512

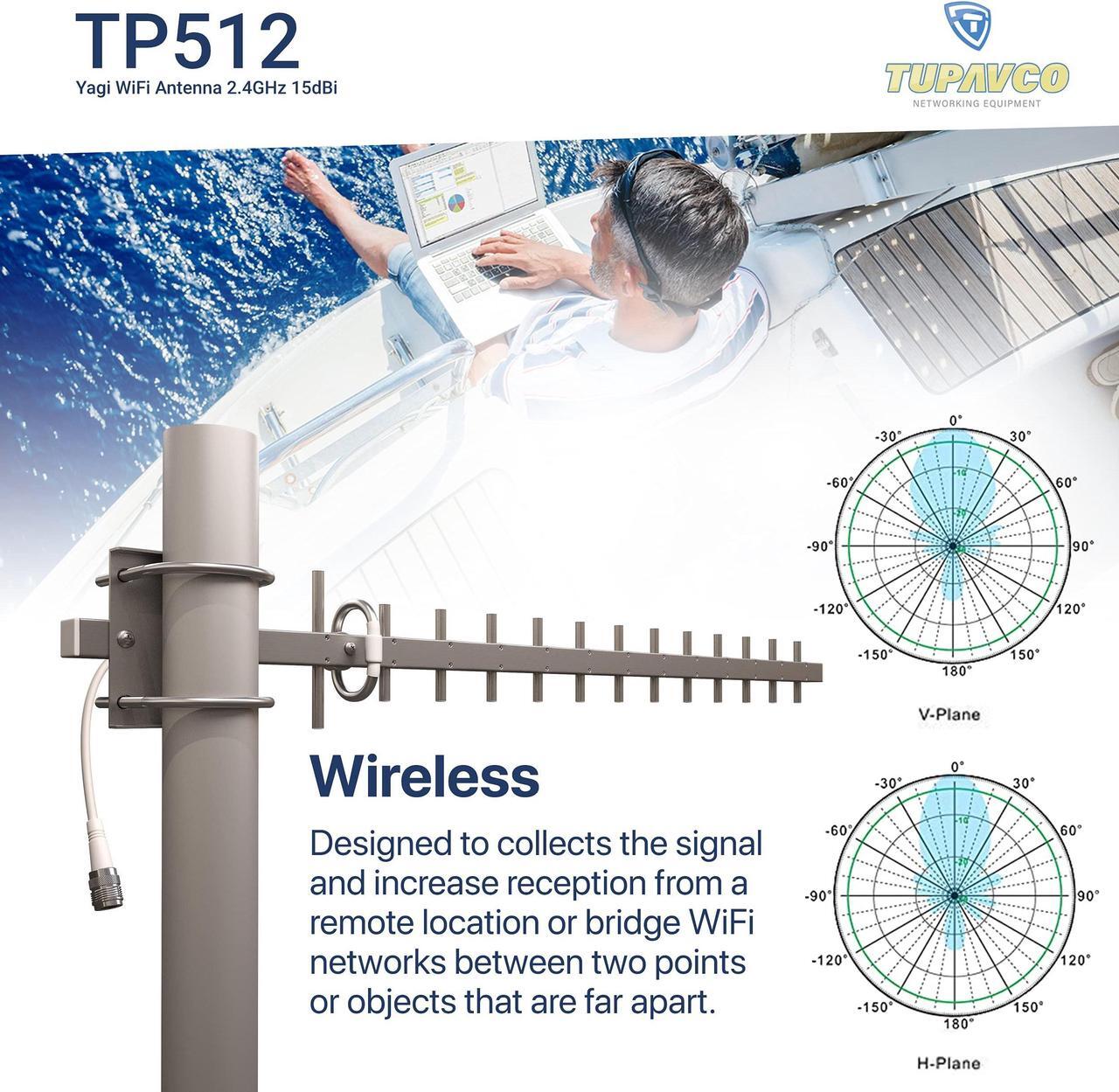

Wireless Yagi is ideally suited for directional and multipoint 2.4 MHz band applications. Wi-fi Yagi antenna is the most popular type of directional antenna in use today. The 15dBi 2.4GH z outdoor Yagi antenna offers 25 deg vertical and 30 deg horizontal beam width. It is only 25" Long. This Wi-Fi antenna comes with an N-Female pigtail connector. N-female is an industry standard connector. It has threads on the outside and a center socket. The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer Conductor of the connector and the cable, or through the mounting hardware.

We do, however, recommend you install a Lightning surge protector between the Yagi and a device to prevent a Lightning strike to the antenna from damaging your device and equipment. Wireless Yagi antenna TP512 in most cases can not be attached directly to the device (Wi-Fi router, signal booster, etc. ) without some Type of cable converter/adapter This antenna has N-Female Cable/connector so it will need the cable/converter from N-Female Type to [your device connector Type], usually to some pigtail coax RP-SMA Cable connector. Also, you can put amp of some kind or signal booster between device and antenna.

The Yagi antenna is used to direct the Wi-Fi beam. It will increase the signal/reception in the direction It is pointing.
Electrical data:
frequency: 2400-2483
MHz gain: 15 dBi
VSWR: 16 dB Max
Input Power: 100
W Lightning protection: DC
ground mechanical data:
connector: N female
Dimensions: 24.81 in
Weight: 0.93 lb.
Cable length: 9.45 in antenna
Material: Aluminum alloy
Size: O40-O50mm rated wind
Velocity: 210km/H
Operating temperature: -40+65c.
