ESP32-S3 Development Board with 1.28inch Round Touch LCD 240x240 Pixel 65K RGB Color, 32-bit LX7 Dual-Core Processor with 6-axis Sensor, Support 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-Tooth 5

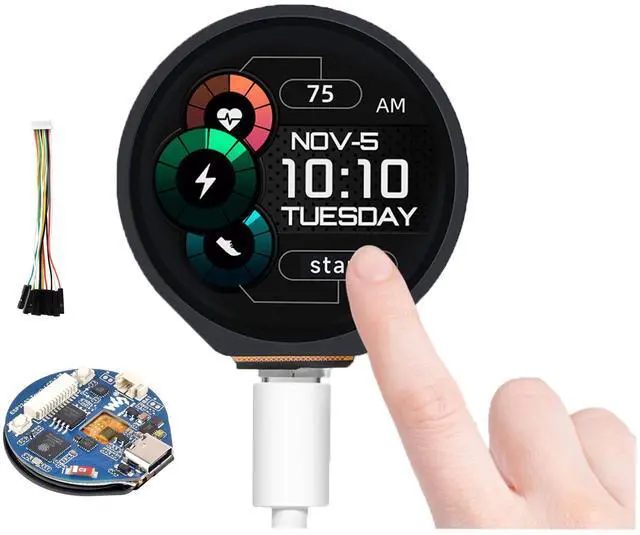

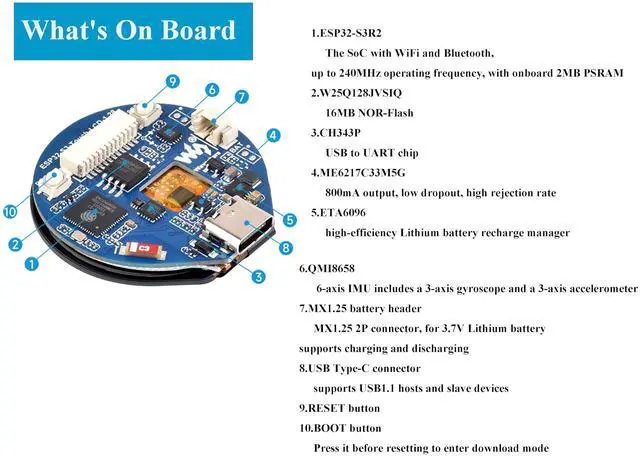

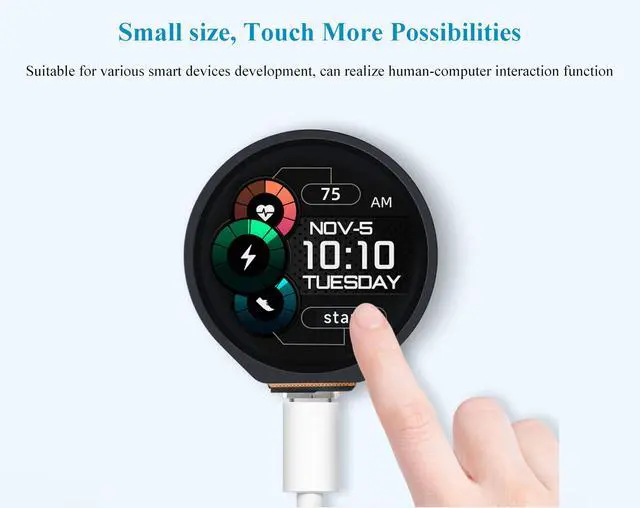

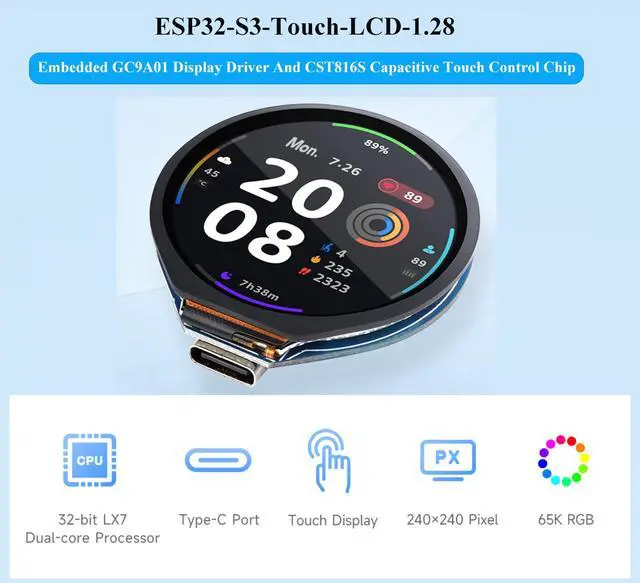

- ESP32-S3-Touch-LCD-1.28 is a high-performance MCU board designed by Waveshare, Compact size. ESP32-S3 Development Board onboard with 1.28inch Round Capacitive Touch LCD, 240x240 resolution, 65K RGB color.
- It is also onboard with batt-ery rechar-ge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, which makes it easy for you to develop and integrate it into products quickly.

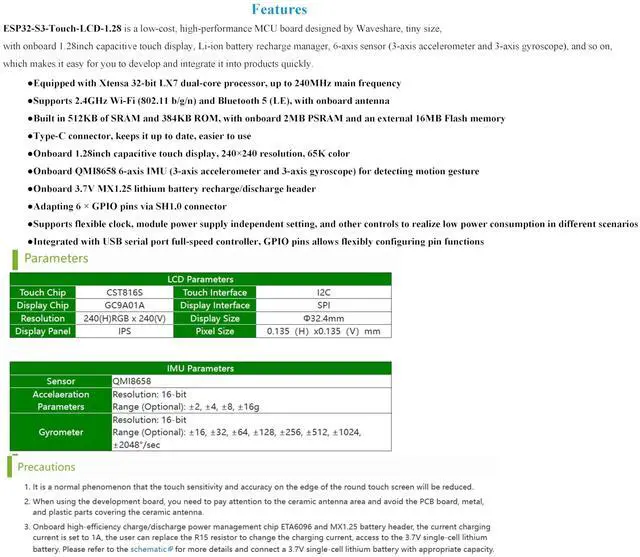

- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard an tenna.
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V MX1.25 lith--ium batt-ery rechar-ge/dischar-ge header.
- Type-C connector, keeps it up to date, easier to use. Adapting 6 x GPIO pins via SH1.0 connector. Comes with SH1.0 12PIN cable.
- Support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 Development Board with 1.28 inch Round Touch LCD 240x240 Pixel 65K RGB Color, 32-bit LX7 Dual-Core Processor with 6-axis Sensor, Support 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-Tooth 5
