Mini Base Board (B) Compatible with Raspberry Pi Compute Module 5,Suitable for Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Overview
Introduction

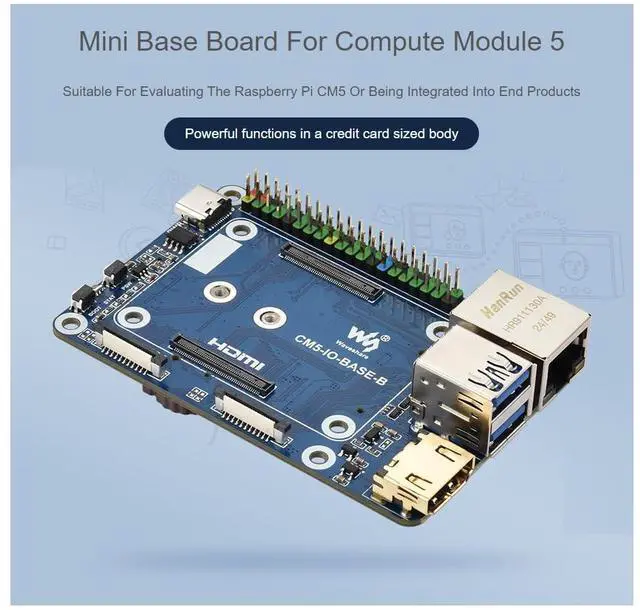

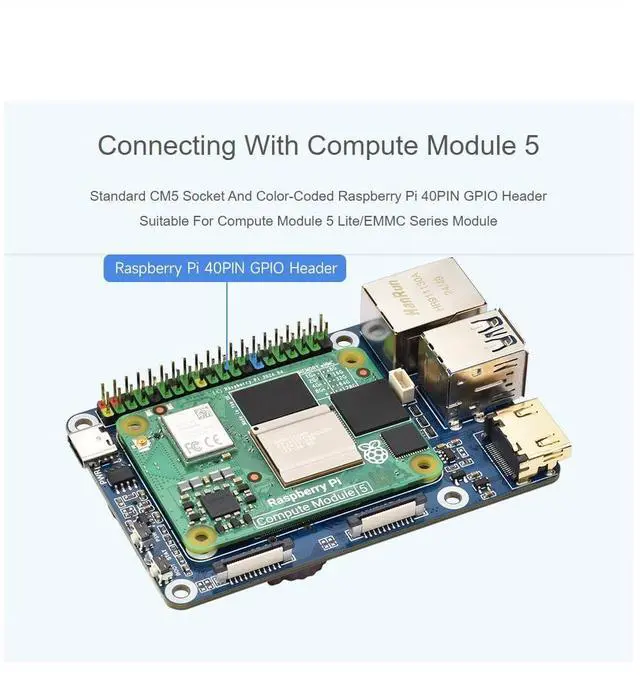

As the IO board of the Raspberry Pi Compute Module 5, CM5-IO-BASE-B is a baseboard that can be used with the Raspberry Pi Compute Module 5. With
powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB 3.2 Gen1 ports and two USB 2.0 ports onboard,
making it convenient for users.

Features and Precautions
1. Do not plug or unplug any device other than USB and HDMI when the device is powered on
2. Type C can be used as a USB SLAVE interface to flash images.
3. Onboard default 2 USB 3.2 Gen1 ports
4. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect,
the screen will display in split-screen mode (related to the system version)
5. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode
6. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized
7. The USB ports have a total maximum power output of 2A

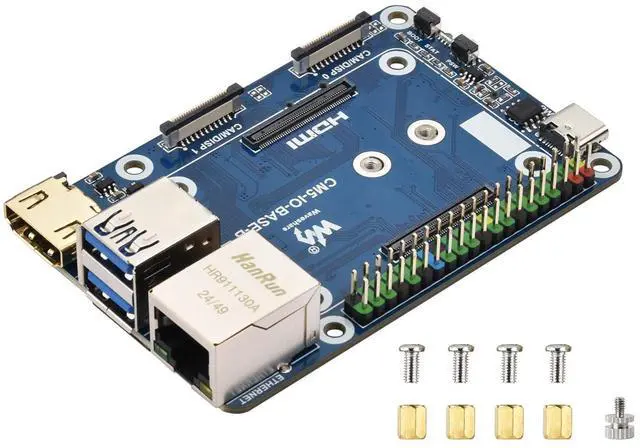

Package Content
CM5-IO-BASE-B x1
Screws pack x1
SSD mounting screw x1

FAQ
Can the old versions of the Raspberry Pi operating system be used with CM5?
CM5 requires the latest version of Raspberry Pi OS Bookworm (2024-11-19 or later).
