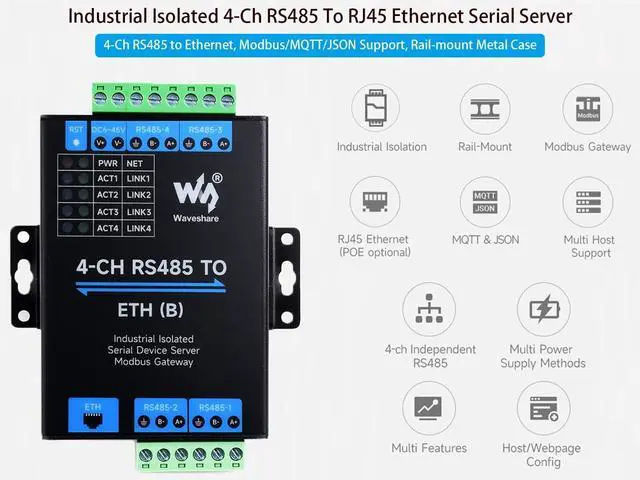

Rail-Mount Industrial Isolated Serial Module 4-Ch RS485 to RJ45 Ethernet Serial Server Adapter, 4-CH Independent RS485, Support Modbus Gateway/MQTT/JSON, Bi-Directional Transparent Transmission

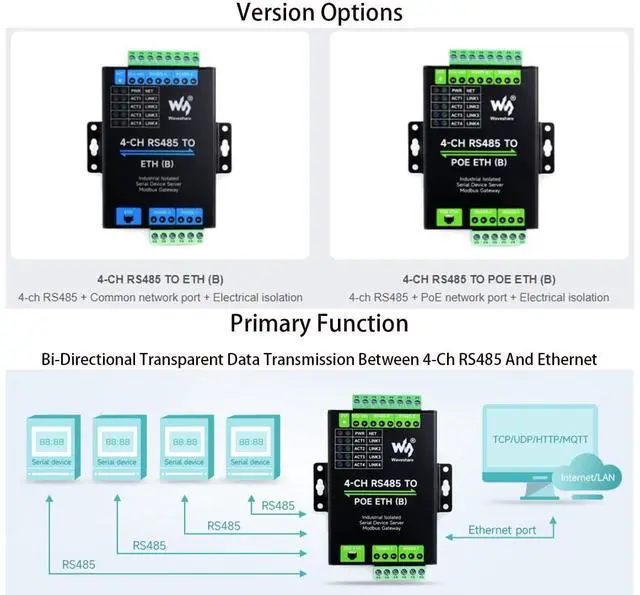

- This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port, small in size, easy to install, and cost-effective. Bi-directional transparent data transmission between 4-Ch RS485 and Ethernet.
- 4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission.

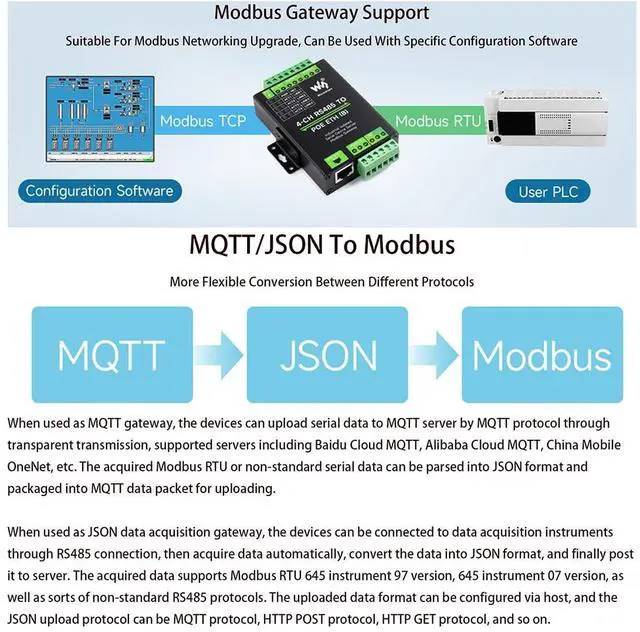

- Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc. Suitable for Modbus networking upgrade, can be used with specific configuration software.
- Multi hosts roll-polling Support---Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices.
- Multi configuration methods---Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
- Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliabil
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewThis is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port, small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios. Specifications1.
Basic IntroductionProduct Type: Serial server, Modbus Gateway, MQTT
GatewayBasic Function: Bi-directional transparent data transmission between RS485 and
EthernetCommunication interface: RS485 port x 4, Ethernet

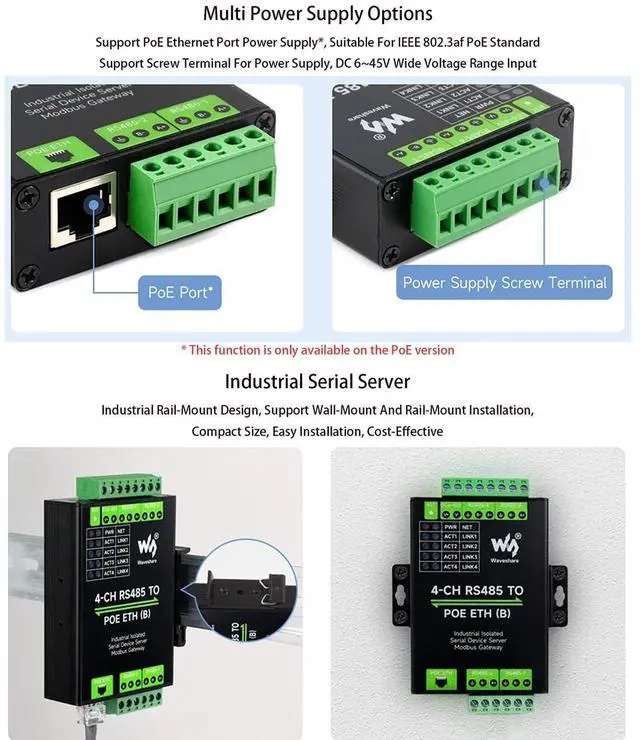

port x 1Power supply: DC 6 ~ 45V screw terminalIsolation
Protection: Power isolation, Signal isolation2.
CommunicationEthernet: RJ45, 10 / 100M auto-negotiation RJ45 connector, 2
KV surge protectionSerial port: Isolated RS485 (the 4 channels can receive and transmit independently at the same time) 3.
Serial specificationBaudrate: 300
~ 115200 bpsParity bit: none, odd, even, mark, spaceData
bit: 5 ~ 9 bits4.
Software Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration: host, web browser, device
management functions libraryCommunication method: TCP/IP direct communication, VCOM
Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast5.
OthersOperating temperature: -40
~ 85Humidity range: 5%
~ 95% relative humidityDimensions: L
W H: 91.0 64.5 24.2 mmOnline Development Resources /User
Manual: bit. ly/3NGN9SbPackage Content4-CH RS485 TO ETH (B) x1Rail-mount buckle x1Screwdriver x1Screws pack x1
