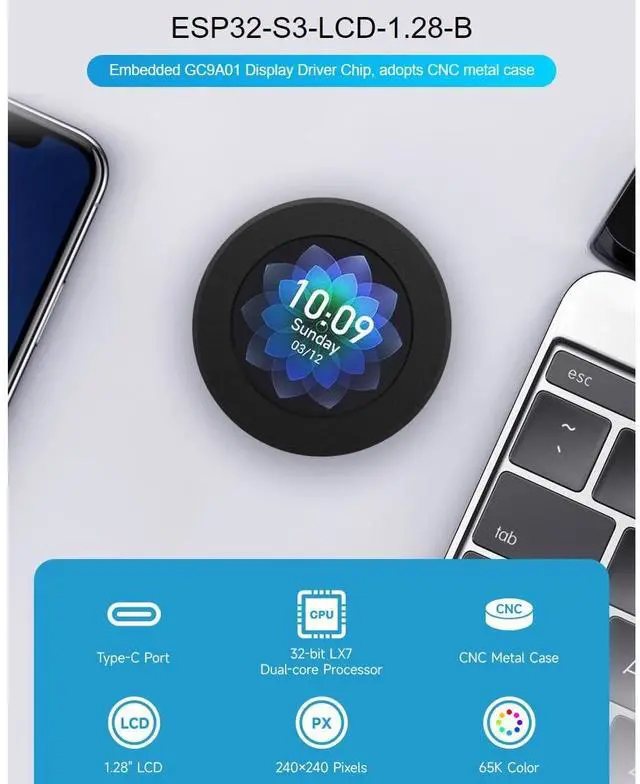

waveshare ESP32-S3 Development Board Onboard 1.28inch Round LCD Display with CNC Metal Case,Support 2.4 GHz Wi-Fi and Bluetooth 5(LE),Embedded GC9A01 Driver
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.Type-C connector, keeps it up to date, easier to use

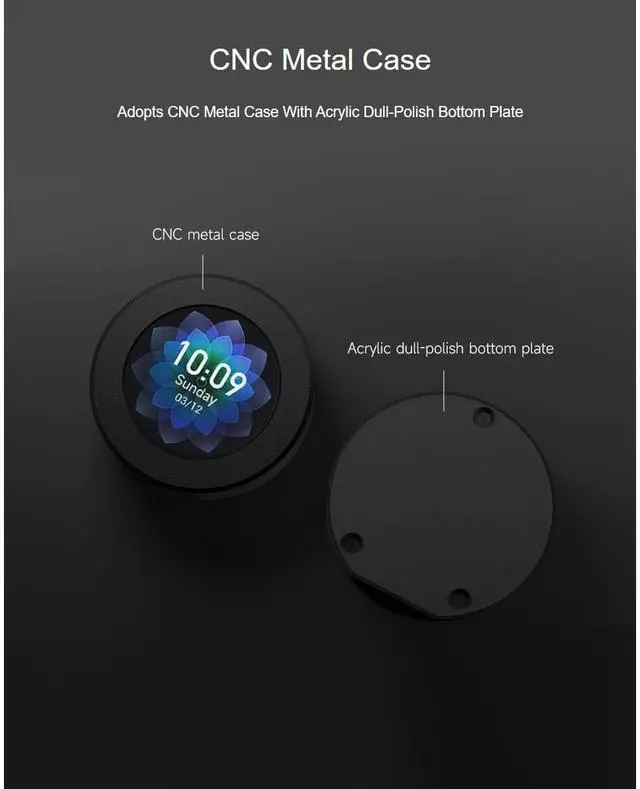

- Onboard 1.28inch LCD display, round IPS panel, 240240 resolution, 65K color.Adopts CNC metal case with Acrylic dull-polish bottom plate
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V lithium battery recharge/discharge header and GPIO headers

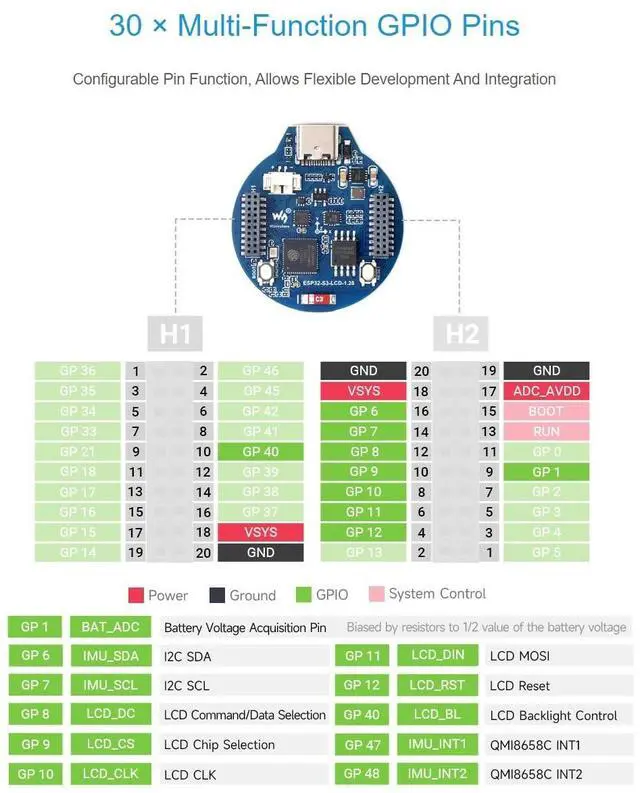

- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview Introduction The ESP32-S3-LCD- 1.28 (referred to as the development board hereafter) is a low-cost, high-performance microcontroller development board designed by Waveshare. It features a 1.28 -inch LCD screen, a lithium battery charging chip, and peripherals such as a six-axis sensor (three-axis accelerometer and a three-axis gyroscope). The board utilizes the ESP32-S3R2, an integrated system-on-chip (SoC) with low-power Wi-Fi and BLE 5.0 capabilities. Additionally, it comes with an external 16MB Flash and 2MB PSRAM. The SoC includes hardware encryption accelerators, RNG (Random Number Generator), HMAC (Hash-based Message Authentication Code), and a Digital Signature module, meeting the security requirements of the Internet of Things (IoT).
Its various low-power operating modes cater to power consumption needs in IoT, mobile devices, wearable electronics, smart homes, and other application scenarios. Parameters LCD Parameter Display Chip---GC9A01A Resolution---240 (H) RGB x 240 (V) Display Panel---IPS Display Interface---SPI Display Size--- 32.4 mm Pixels--- 0.135H x 0.135V mm IMU Paramters Sensor Name---QMI8658 Accelerator Resolution: 16-bit
Measurement Range (Optional): 2, 4, 8, 16g
Gyroscope Characteristics Resolution: 16 bits Measuremnet

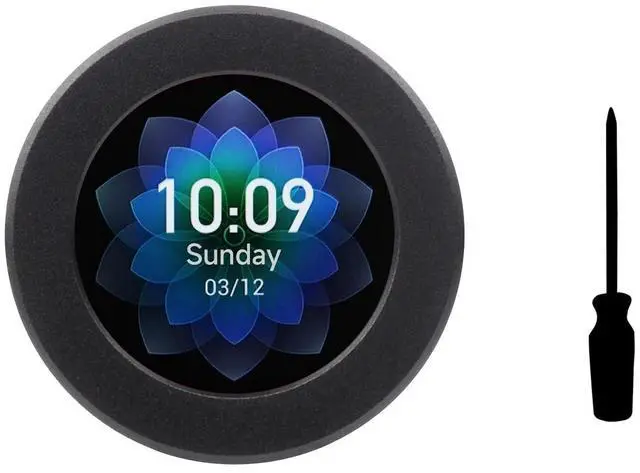

Range (Optional): 16, 32, 64, 128, 256, 512, 1024, 2048/sec Package Content ESP32-S3-LCD- 1.28 -B x1 Screwdriver x1
Its various low-power operating modes cater to power consumption needs in IoT, mobile devices, wearable electronics, smart homes, and other application scenarios. Parameters LCD Parameter Display Chip---GC9A01A Resolution---240 (H) RGB x 240 (V) Display Panel---IPS Display Interface---SPI Display Size--- 32.4 mm Pixels--- 0.135H x 0.135V mm IMU Paramters Sensor Name---QMI8658 Accelerator Resolution: 16-bit
Measurement Range (Optional): 2, 4, 8, 16g
Gyroscope Characteristics Resolution: 16 bits Measuremnet
Range (Optional): 16, 32, 64, 128, 256, 512, 1024, 2048/sec Package Content ESP32-S3-LCD- 1.28 -B x1 Screwdriver x1
