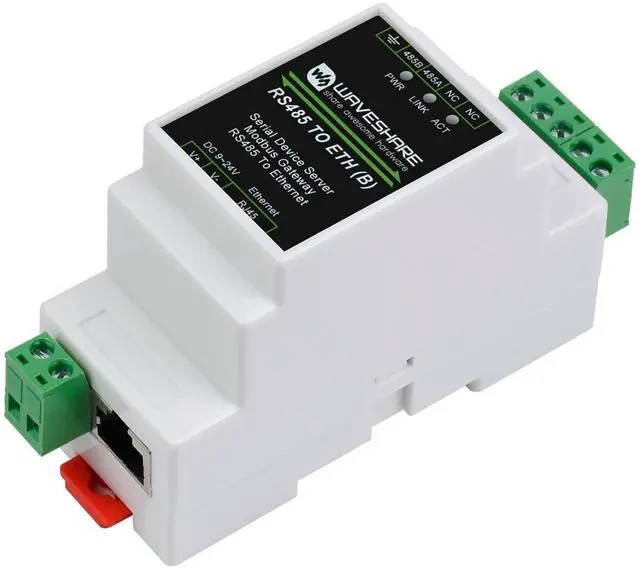

waveshare Ethernet Industrial Serial Server RS485 to RJ45 Ethernet Module, TCP/IP to Serial, Support Rail-Mount/Modbus Gateway, TCP Server/TCP Client/UDP Mode/UDP Multicast Multi Communication Modes

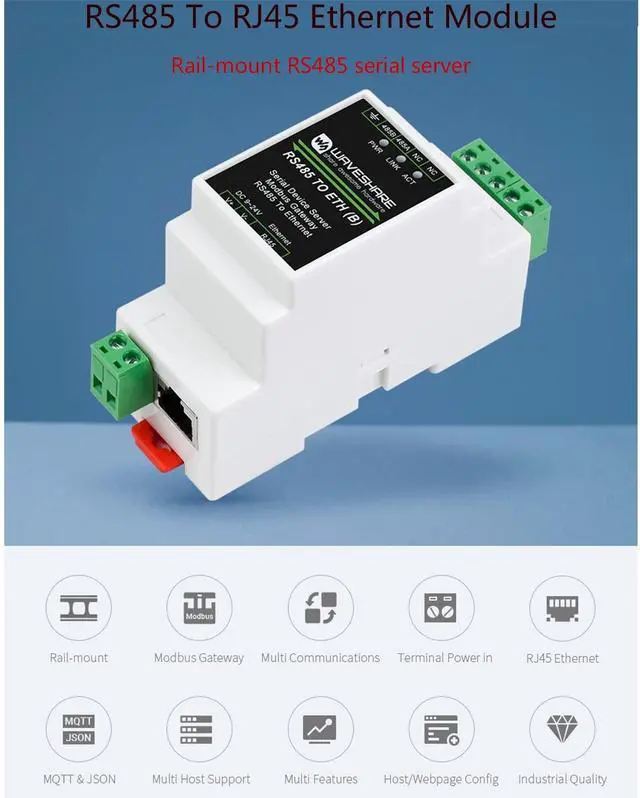

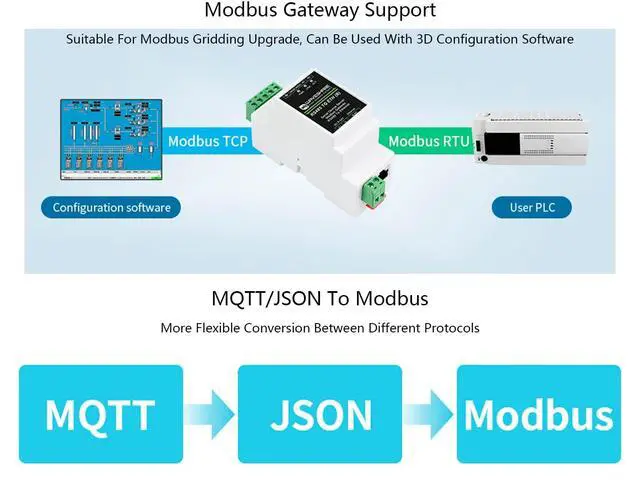

OverviewThis is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring. etc. Specifications1. Primary IntroductionProduct Type--- Serial server, Modbus Gateway, MQTT GatewayBasic Function--- Bi-directional transparent data transmission between RS485 and EthernetCommunication interface --- RS485 port x 1, Ethernet port x 1Power supply --- 9 ~ 24V DC screw terminal2.

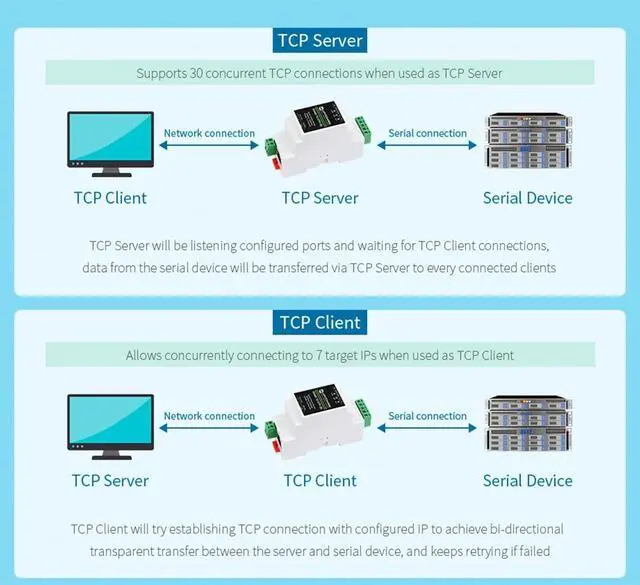

CommunicationEthernet--- common network port, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection. Serial port--- RS 485.3. Serial specificationBaudrate---300 ~ 115200 bpsParity bit--- none, odd, even, mark, spaceData bit--- 5 ~ 9 bits4. SoftwareProtocol--- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNSConfiguration--- host, web browser, device management functions libraryCommunication method--- TCP/IP direct communication, VCOMOperating mode--- TCP server, TCP client (coexisting with TCP server), UDP, UDP multicas5. Environment requirementOperating temperature--- -40 ~ 85Storage temperature: -45 ~ 125Humidity range--- 5% ~ 95% relative humidityDimensions --- L x W x H--- 87x 36 x 59 mmOnline
Document/How to use: //bit. ly/3rWrjyzPackage ContentRS485 TO ETH (B) x1
