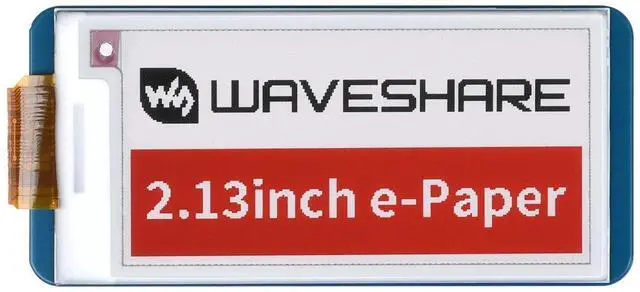

waveshare 2.13inch E-Ink Display HAT Compatible with Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, 212x104 Resolution Three-Color SPI Interface

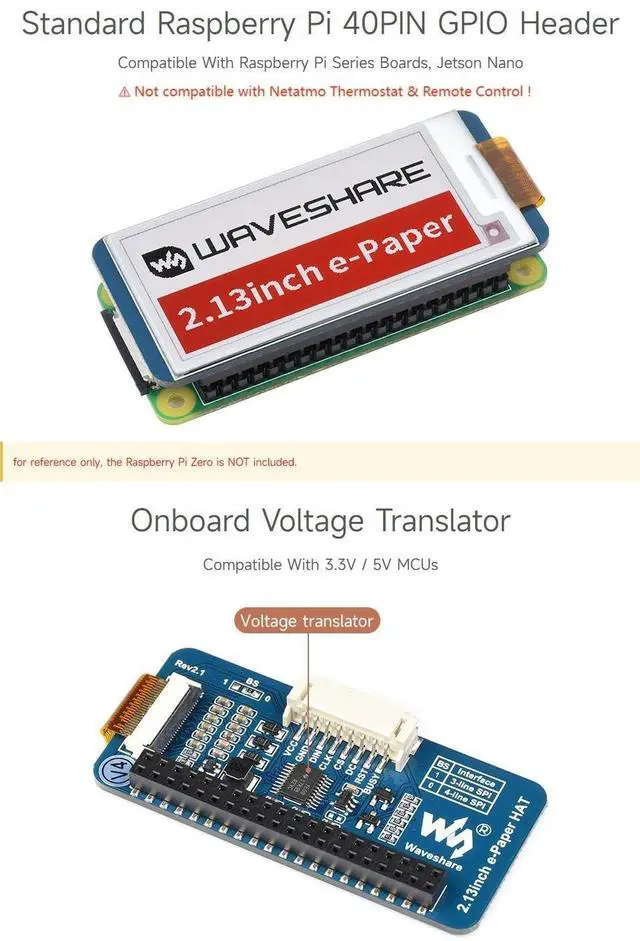

Overview This is an E-Ink display HAT for Raspberry Pi, 2.13 inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

Onboard voltage translator, compatible with 3.3V /5V MCUs Comes with development resources and manual (examples for
Raspberry Pi/Jetson Nano/Arduino/STM32)Specifications Operating voltage: 3.3V /5V
Interface: 3-wire SPI, 4-wire
SPI Outline dimension: 65mm 30.2 mm
Display size: 23.71 mm 48.55 mm
Dot pitch: 0.229 0.228
Resolution: 212 104
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW Viewing angle: > 170Development
ResourcesWiki: www. waveshare. com/wiki/ 2.13 inch_e-Paper_HAT_ (B)? Package Content 2.13 inch e-Paper HAT (B) x1RPi screws pack (2pcs) x1PH 2.0 20cm 8Pin x1
