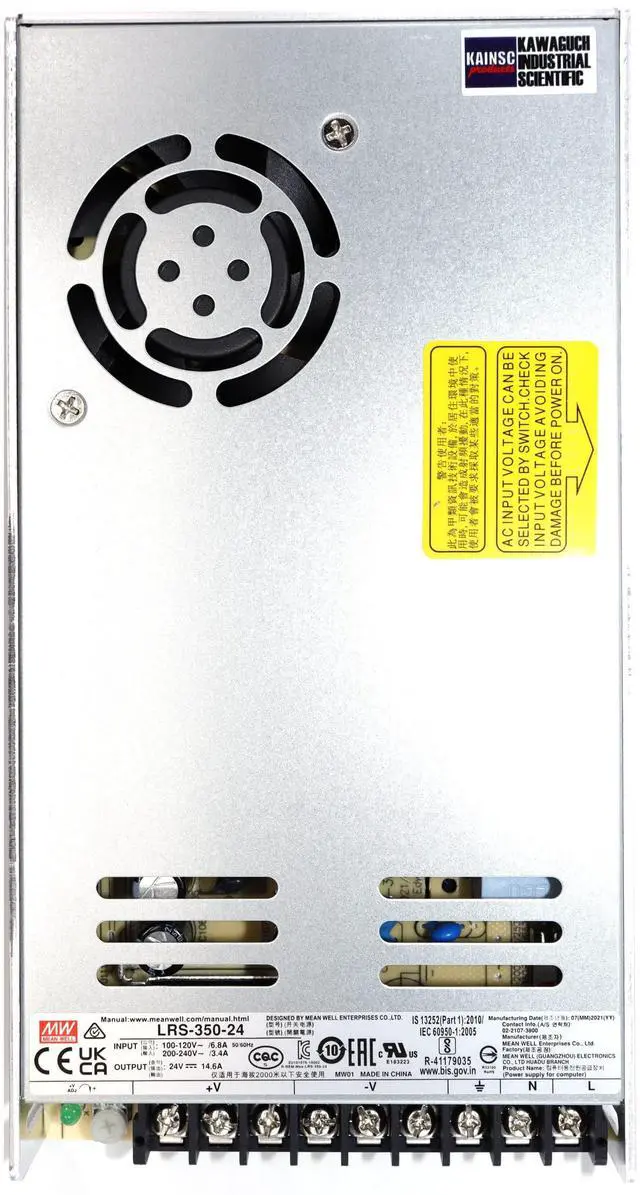

Mean Well LRS-350-24 AC/DC Switching Power Supply 350.4W 24V 14.6Amp Single Output Provided by KAINSC Products
- Output Voltage: 24V; Rated Current & Rated Power: 14.6A, 350W
- Input Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC by Switch; Input Switch Default On 115VAC
- UL and CE Certificated; Output Voltage adjustable range: 21.6~28.8 VDC; Ripple & Noise (max.): 150mVp-p (measured at 20MHz of bandwidth by using 12 twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
- Built-in cooling FAN ON-OFF control, RTH3 Reaches 50, FAN ON, Under 40, FAN OFF
- Full Protections: Short Circuit / Overload / Over Voltage /Over Temperature
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ensure optimal performance of your 3D Printer or CNC machine with the use of this LRS-350-24 AC to DC power supply from MEAN WELL.
It has a voltage of 24 V and maximum output power of 350.4 W.
This part's single output can handle a current up to 14.6 A.
This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5 %
Load Regulation: 0.5 %
Maximum Input Current (A): 6.8 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88 (Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV (Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30mm
Package Length: 215mm
Package Width: 115mm
It has a voltage of 24 V and maximum output power of 350.4 W.
This part's single output can handle a current up to 14.6 A.
This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5 %
Load Regulation: 0.5 %
Maximum Input Current (A): 6.8 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88 (Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV (Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30mm
Package Length: 215mm
Package Width: 115mm
