Lonely Binary ESP32-S3 N16R8 Gold Edition Kit with PinPulse Shield, 16MB Flash 8MB PSRAM, Visual GPIO LEDs, Dual USB-C, WiFi BLE 5.0 - for Arduino IDE, MicroPython, ESP-IDF, C/C++

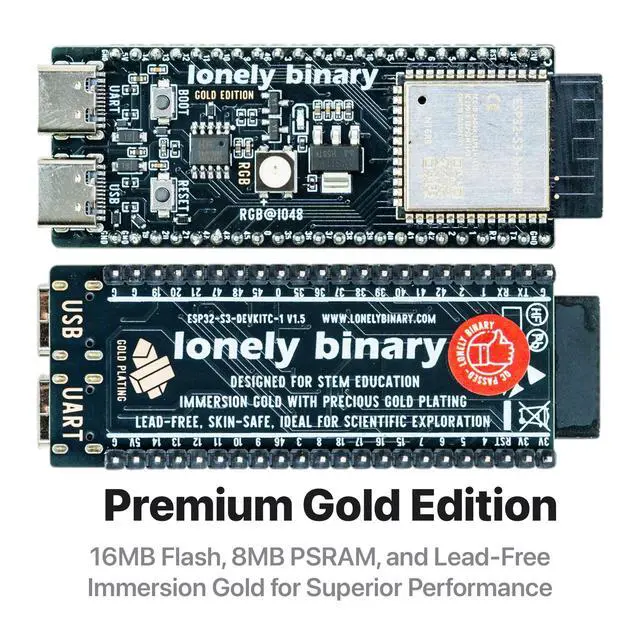

PREMIUM ESP32-S3 GOLD EDITION BOARDPowered by the ESP32-S3-WROOM-1 module with dual-core 240MHz Xtensa LX7 CPU and AI vector instructions, WiFi 802.11 b/g/n, and Bluetooth 5.0 LE. Lead-free ENIG (Electroless Nickel Immersion Gold) finish for superior durability, oxidation resistance, and signal integrity. ^^ MASSIVE 16MB FLASH + 8MB PSRAM Upgraded 16MB Flash (4 the standard ESP32's 4MB) holds large programs, web servers, OTA partitions, and asset libraries. Dedicated 8MB

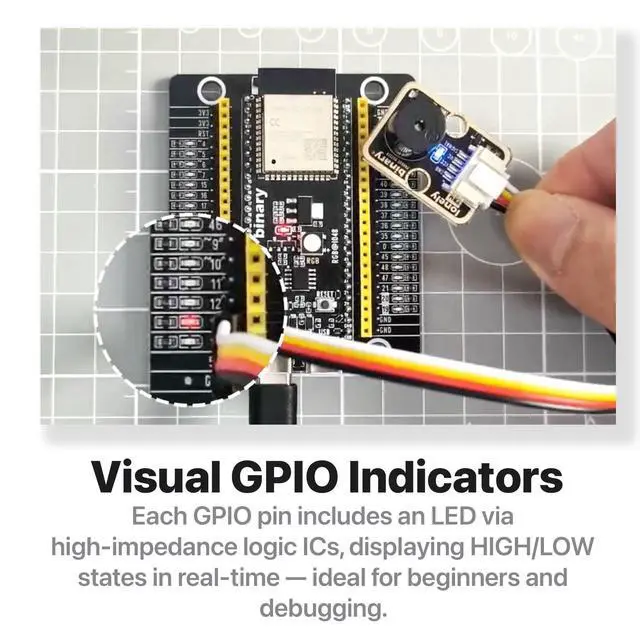

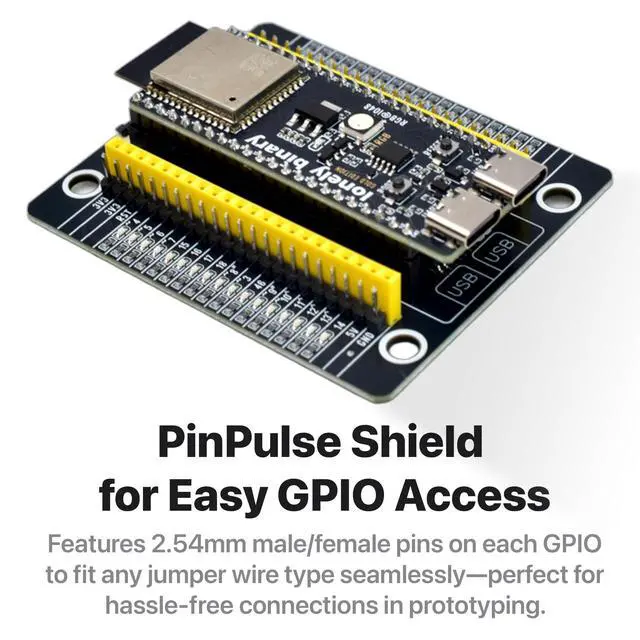

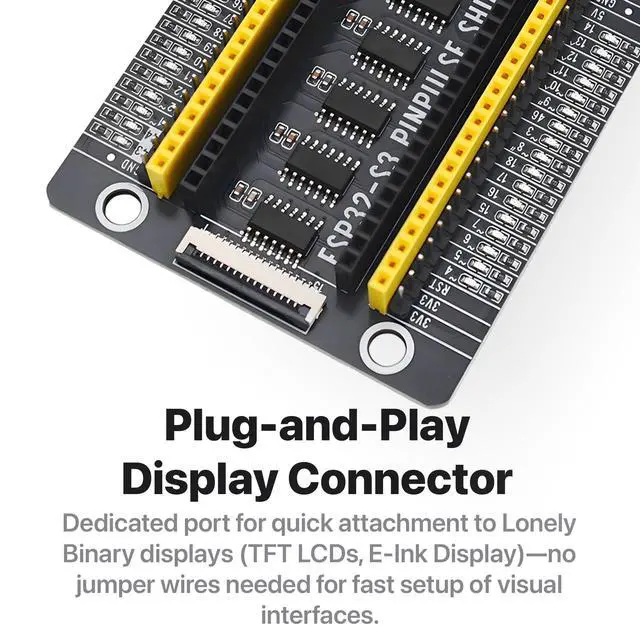

PSRAM enables graphics-intensive applications: LVGL touch UIs, ESP32-CAM streaming, audio playback with decoding, AI/ML on-device inference, and complex IoT systems that the standard ESP32 cannot handle. ^^ PINPULSE SHIELD WITH DUAL HEADERS + GPIO LEDsEvery GPIO breaks out to both 2.54 mm male and female headers, accepting any jumper wire type (M-M, M-F, F-F). Each pin includes an indicator LED via 74HC14D high-impedance buffered logic ICs see HIGH/LOW states instantly without a multimeter, while SPI, I2C, UART, and PWM signals stay clean and uncorrupted. ^^ PLUG & PLAY DISPLAY + DUAL USB-CDedicated 15-pin FPC connector snaps directly into Lonely Binary TFT, E-Ink, and touch displays via a single ribbon cable. The board features two

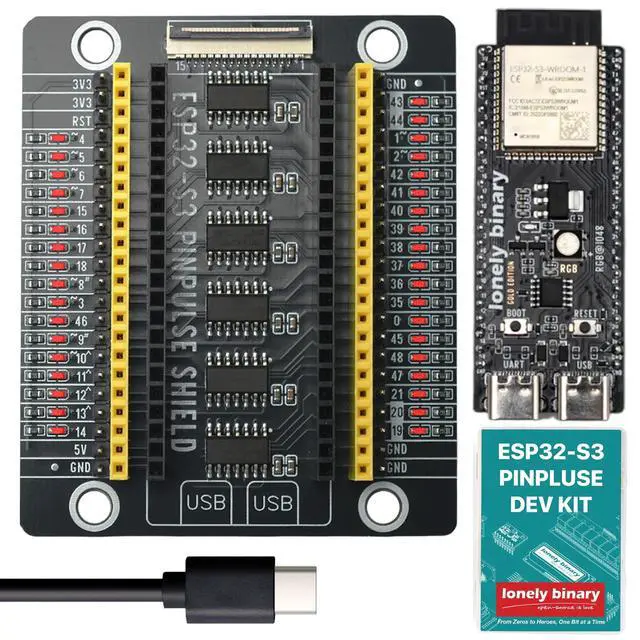

USB-C ports: one for native USB OTG (HID/MSC/CDC) and one for UART programming/debugging no more swapping cables between modes. ^^ CODE YOUR WAY + WHAT'S INCLUDEDFull compatibility with Arduino IDE, ESP-IDF, MicroPython, C/C++, and PlatformIO. Box includes 1x ESP32-S3 Gold Edition board, 1x PinPulse Shield, and 1x USB-A to USB-C cable. Displays sold separately. Perfect for IoT engineers, makers, robotics, AI/ML on edge, and educators teaching advanced embedded systems.
