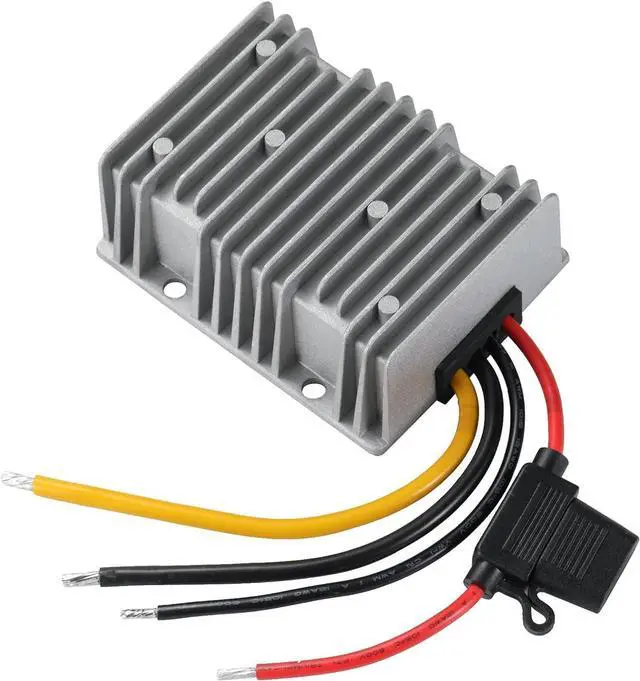

YABOANG DC Converter Buck 24V to 12V 20A,DC Voltage Converter 24V setp Down 12V40A 480W MAX Power Transformer Waterproof Step Down Module for Automotive, LED Lights, Trucks, Instrument

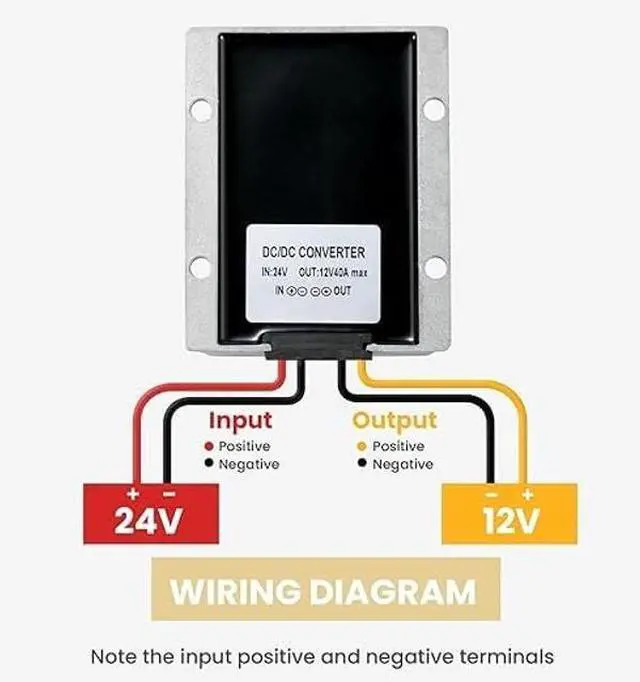

- 12V DC Voltage TransformerInput range:20V to 40V; output voltage : 12V(fixed output) output current : 40A output power : 480W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.

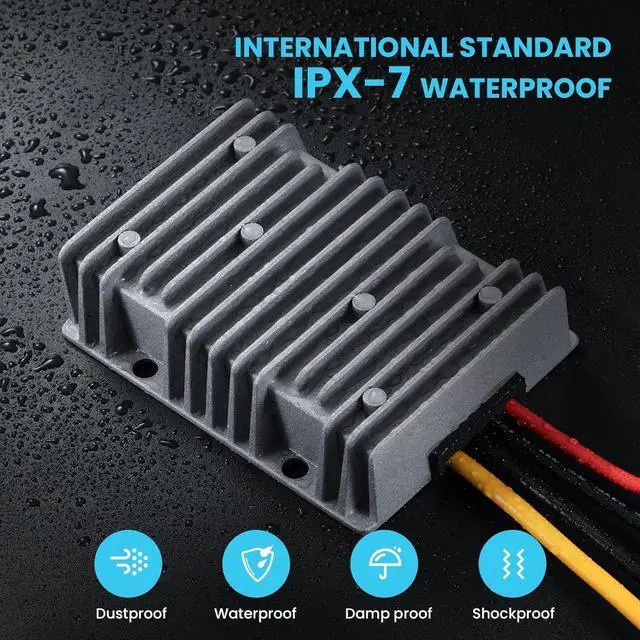

- Heat Dissipation PerformanceThe 12V voltage regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.
- Intelligent ProtectionAssembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the 12 V power transfomer voltage.
- Widely ApplicationThe 12 V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.
- Please NoteThe load connected to the transformer converter output should not exceed the specified maximum load. (Any greater load will dama
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

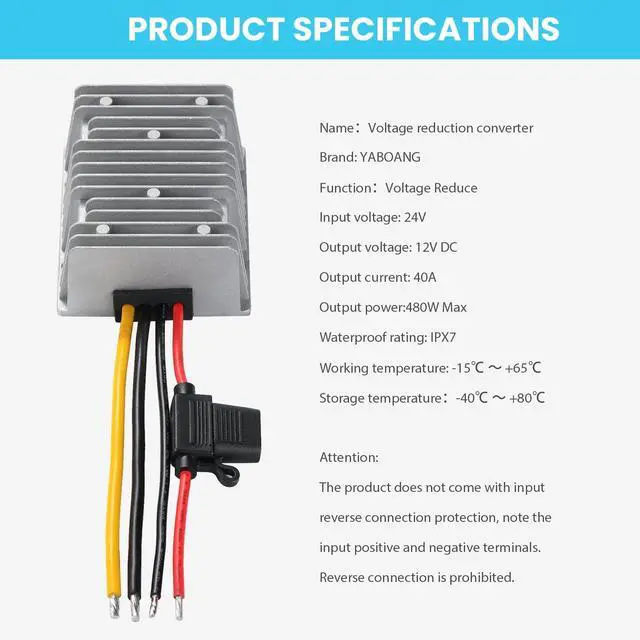

A. Test the environmental conditionsB. Unless otherwise specified, the tests in this specification shall be conductedunder the standard atmospheric conditions testedC.
temperature: 15~35. D.
Relative humidity: 45%~75%E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 K / V. F. The instrument accuracy of measuring current shall not be less than the 0.5 levelG. The accuracy of the instrument used for measuring the temperature shall not be less than 1Input range: 20-35VRated
input voltage: 24Vtransfer
efficiency: 95%incoming
line: 15-16CM(R+
B-)output voltage:
12Voutput: 40A
MAXmaximumoutput: 480W MAX
No-load adjustment rate: 2%load
regulation: 3%quiescent
dissipation: 65MADo not use it near a heat source (such as a fire or a heater) Do not connect the input line to 220V electricityDo not put the product into the fire or heat itDo not short-circuit the positive or negative poles of the product with wires or other metal objectsNon-professional personnel are prohibited to disassemble and repair by themselves
temperature: 15~35. D.
Relative humidity: 45%~75%E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 K / V. F. The instrument accuracy of measuring current shall not be less than the 0.5 levelG. The accuracy of the instrument used for measuring the temperature shall not be less than 1Input range: 20-35VRated
input voltage: 24Vtransfer
efficiency: 95%incoming
line: 15-16CM(R+
B-)output voltage:
12Voutput: 40A
MAXmaximumoutput: 480W MAX
No-load adjustment rate: 2%load
regulation: 3%quiescent
dissipation: 65MADo not use it near a heat source (such as a fire or a heater) Do not connect the input line to 220V electricityDo not put the product into the fire or heat itDo not short-circuit the positive or negative poles of the product with wires or other metal objectsNon-professional personnel are prohibited to disassemble and repair by themselves
