Chengying 32 inch Multi-Touch 10 Point Infrared Touch Frame, ir Touch Panel, Infrared Touch Screen Overlay ...
- No display, No monitor, No screen. This Touch Overlay is not a display, it is a touch pointing device, Touch function overlay only.
- Needs to be installed in front of your monitor or TV screen. Easy to install, Easy Integration. Can work with 2k 4k 8k monitors, but not for curved displays.
- Needs to be used with a computer, USB connection. Fully compatible with Windows OS, Fully compatible with Poly Conference System.
- Enterprises and schools: Education whiteboard, Conference touch machine, Advertising machines, Interactive touch tables, Command Center and Boardroom, Digital Signage, Kiosk, Exhibitions, Automatic retail machines, Checkout machines, Express
- For product developers, Re-development Provide: free SDK, support C/C++. Protocols: HID,TUIO,Flash.
+
+
Overview
Specs
Reviews
COMPANY PRODUCTION
Guangzhou Chengying Technology Co., Ltd is a professional manufacturer and supplier of touch screen overlay. We can provide 15 inches to 800 inches infrared touch frame, include 2, 4, 6, 10, 12, 16, 32, 40 touch points series product. SPECIFICATION
Standard Size: 32
inchRatio: 16:9

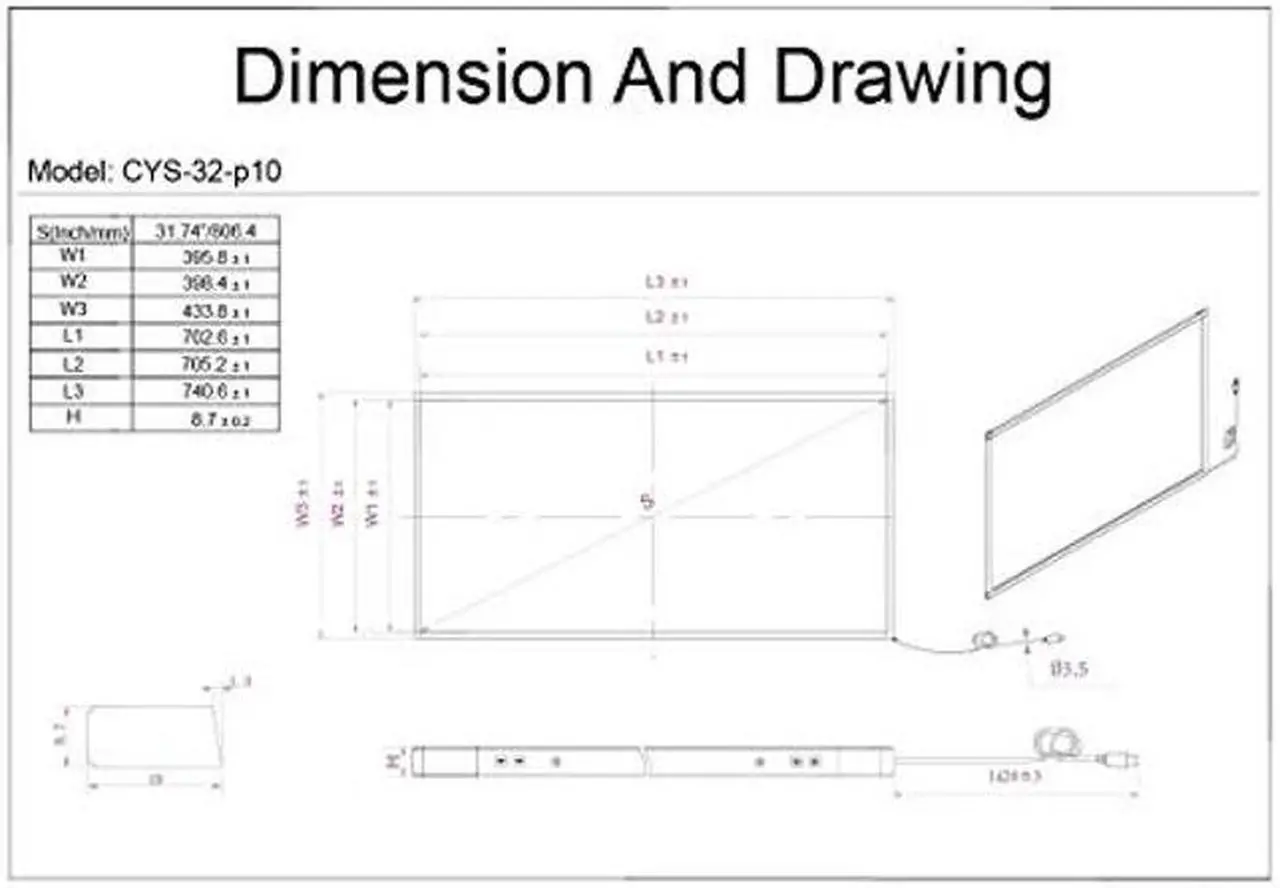

Dimension: 19mm width, 8.7 thickness (frame only, without glass, without screen)Number of
Touch Points: 10Minimum
Touch Object: 5mmTouch
Activation Force: No minimum touch pressure requiredTouch
Durability:
UnlimitedDurabilityResolution: 32768*32768Linearity
Deviation: +-1mmFault
Tolerance: Workable even 75% sensors are damagedFrames per
Second: Up to 450 fpsTypical
Response Time: 3-10msLight
Transmission: 100% without glassOperating

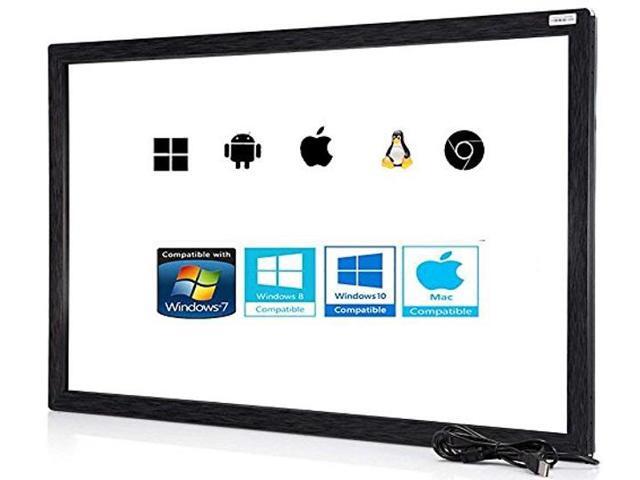

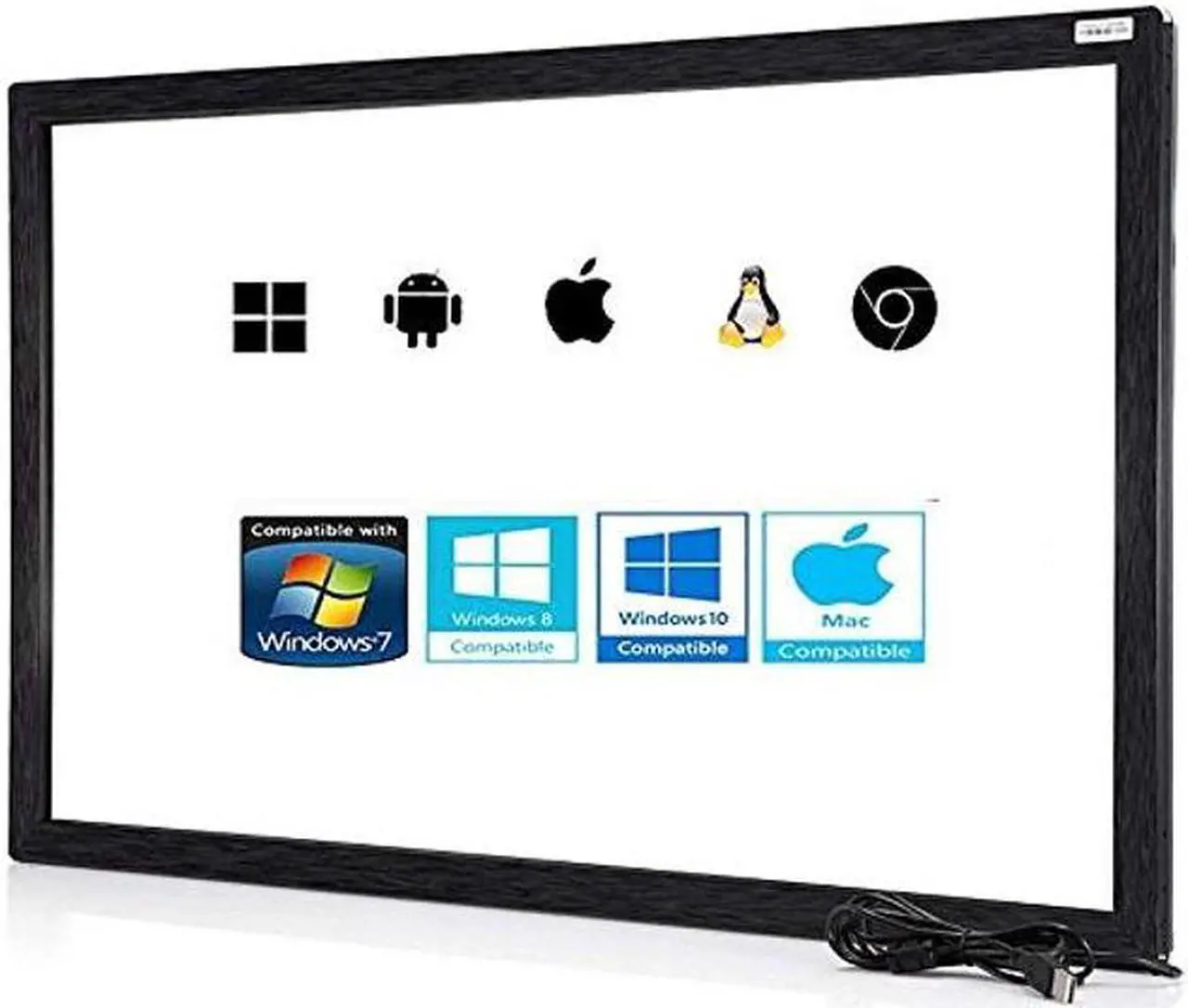

Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android. Need to install the HID driver in Mac OS. (Does not support Smart TV Android system, Raspberry
Pi)Protocols: HID, TUIO, FlashRe-development
Provide: free SDK, support C/C++, C#, Java etc. ElECTRICAL
Power Supply: Single
USB ConnectionLow Power Consumption: Operating <=2W, Stand
By <= 250mWESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pinsENVIRONMENT
Operating Temperature: -20degC~70degCStorage
Temperature: -40degC~85degCOperating
Humidity: 10%~90%RH(Non-condensing)Storage
Humidity: 10%~90%RH
Certification: FCC, CE,
ROHS
Warranty: 1 year
Guangzhou Chengying Technology Co., Ltd is a professional manufacturer and supplier of touch screen overlay. We can provide 15 inches to 800 inches infrared touch frame, include 2, 4, 6, 10, 12, 16, 32, 40 touch points series product. SPECIFICATION
Standard Size: 32
inchRatio: 16:9
Dimension: 19mm width, 8.7 thickness (frame only, without glass, without screen)Number of
Touch Points: 10Minimum
Touch Object: 5mmTouch
Activation Force: No minimum touch pressure requiredTouch
Durability:
UnlimitedDurabilityResolution: 32768*32768Linearity
Deviation: +-1mmFault
Tolerance: Workable even 75% sensors are damagedFrames per
Second: Up to 450 fpsTypical
Response Time: 3-10msLight
Transmission: 100% without glassOperating
Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android. Need to install the HID driver in Mac OS. (Does not support Smart TV Android system, Raspberry
Pi)Protocols: HID, TUIO, FlashRe-development
Provide: free SDK, support C/C++, C#, Java etc. ElECTRICAL
Power Supply: Single
USB ConnectionLow Power Consumption: Operating <=2W, Stand
By <= 250mWESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pinsENVIRONMENT
Operating Temperature: -20degC~70degCStorage
Temperature: -40degC~85degCOperating
Humidity: 10%~90%RH(Non-condensing)Storage
Humidity: 10%~90%RH
Certification: FCC, CE,
ROHS
Warranty: 1 year
