Topping P50 Linear Power Supply for Topping E50/D50/D50s/DX3 Pro+/A50 Ultra Low Noise 2X 5V 1A + 15V 1A Silver
- Excellent Power Supply - Topping p50 match to E50/D50s&D50/D50s+A50.It is a excellent partner to DX3 Pro
- Compatible with Globlal Voltage - 115V for AC 100V-120V 50/60 Hz,230V for AC220V-240V 50/60 Hz

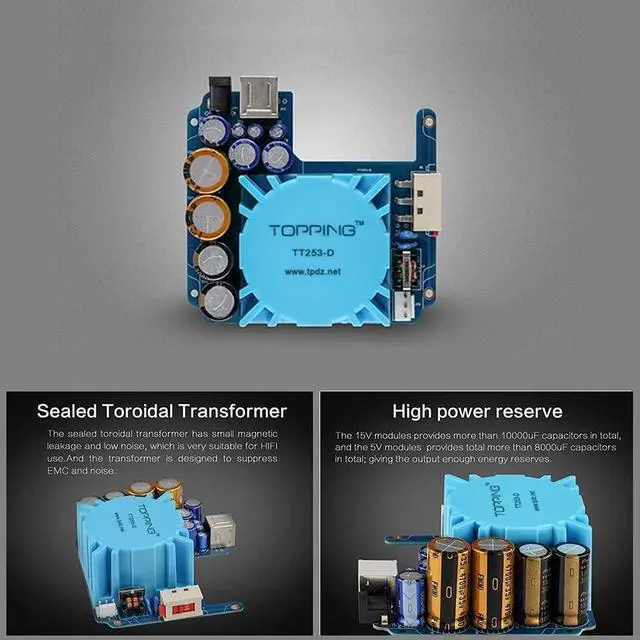

- Low Noise - The sealed toroidal transformer has small magnetic leakage and low noise,which is very suitable for HIFI use.And the transformer is designed to suppress EMC and noise
- High Power Reserve - The 15V modules providesmore than 10000uF capacitors in total,and the 5V modules provides total more than 8000uF capacitors in total;giving the out enough energy reserves

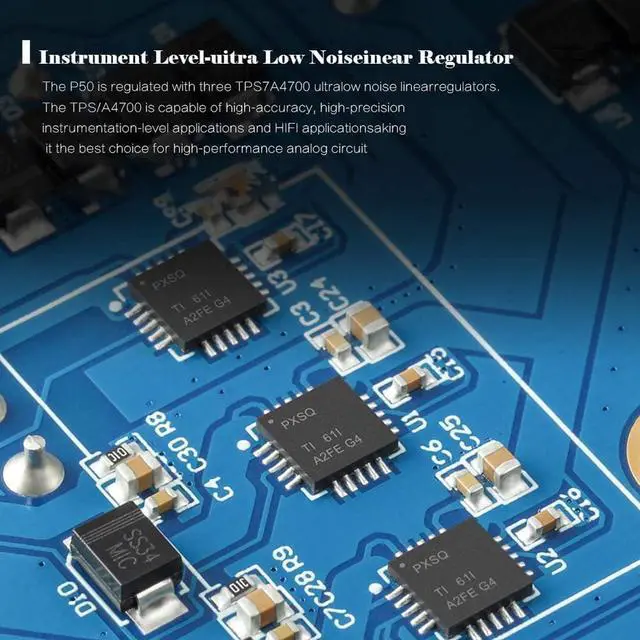

- Linear Regulator - The P50 is regulated with three TPS7A4700 ultralow noise linear regulators.It is capable of high-accuracy,high-precision instrumentation-level applications and HIFI applications,making in the best choice for high-performance analog circuits
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

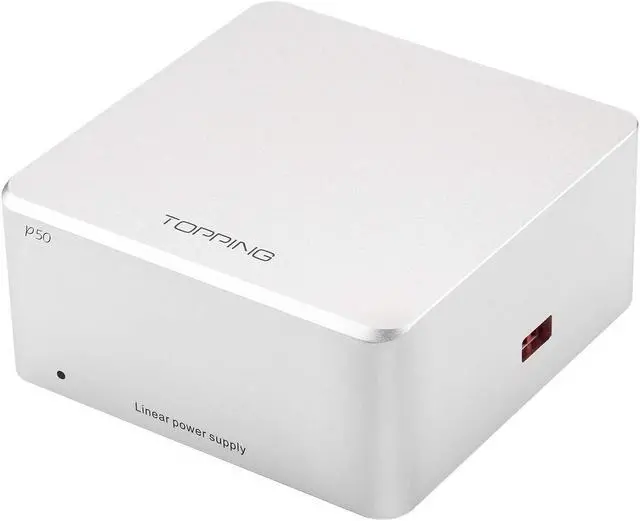

The P50 is a high quality linear power supply with one 15V/1A DC output and two 5V/1A DC outputs. It supports 110V/220V AC input. We believe that the P50 will bring you more fun!

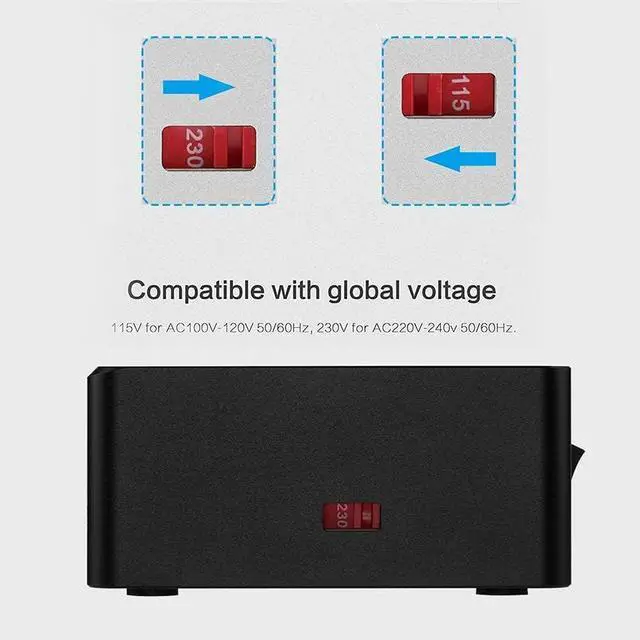

Voltage setting on side panel
Voltage selector switch:
115 V for AC100V-120V50/60Hz,
230 V for AC220V-240V50/60Hz.
Note:
1. Please choose the correct voltage before using; the wrong voltage setting will damage your P50.
2. For reducing the noise and get the best output quality, please use three-phase power cable which is including the ground terminal and ensure the ground is reliable connected.
Contents list
P50 x 1
AC cable x 1
0.2 m USB to DC line x1
0.2 m DC to DC line x 1
1.2 m DC to DC line x 1
User's manual x 1
Warranty card x1
Precautions for daily use
1. Ensure the outputjack could not short circuit or connect to ground.
2. You must not keep the power supply in a hot, humid environment or make it subject to strong shocks.
3. Opening the case instantly voids the warranty!
4. Indoor use only.

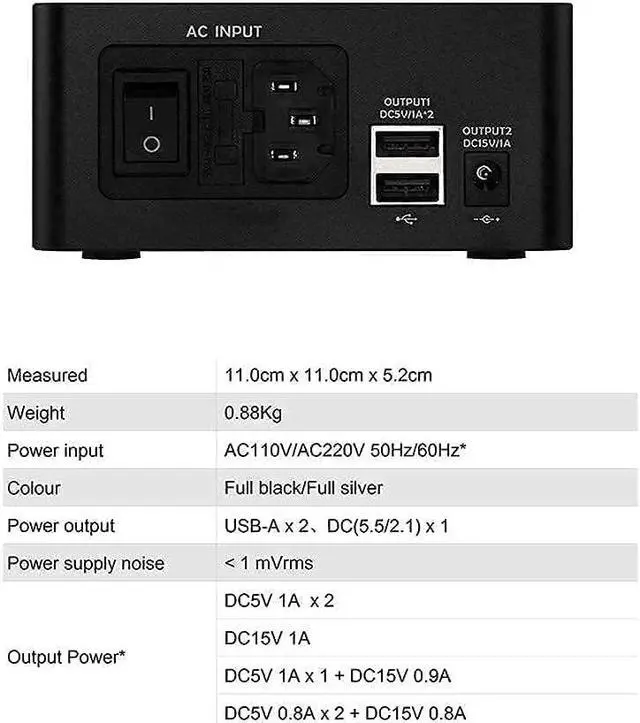

Attribute
Measured: 11.0 cmx 11.0 cmx 5.3 cm
Weight: 0.88K g
Power input: AC110V/AC220V*
Power output1: USB-A x2
Power output2: DC( 5.5 / 2.1 )
Power supply noise <1 mVrms
Output Power*
(1) DC5V 1Ax2
(2) DC15V 1A
(3) DC5V 1Ax1 + DC15V 0.9A
(4) DC5V 0.8A x2 + DC15V 0.8A
*Warning: Please select to your local voltage. The shell will be quite hot at high power output, this is normal.
Voltage setting on side panel
Voltage selector switch:
115 V for AC100V-120V50/60Hz,
230 V for AC220V-240V50/60Hz.
Note:
1. Please choose the correct voltage before using; the wrong voltage setting will damage your P50.
2. For reducing the noise and get the best output quality, please use three-phase power cable which is including the ground terminal and ensure the ground is reliable connected.
Contents list
P50 x 1
AC cable x 1
0.2 m USB to DC line x1
0.2 m DC to DC line x 1
1.2 m DC to DC line x 1
User's manual x 1
Warranty card x1
Precautions for daily use
1. Ensure the outputjack could not short circuit or connect to ground.
2. You must not keep the power supply in a hot, humid environment or make it subject to strong shocks.
3. Opening the case instantly voids the warranty!
4. Indoor use only.
Attribute
Measured: 11.0 cmx 11.0 cmx 5.3 cm
Weight: 0.88K g
Power input: AC110V/AC220V*
Power output1: USB-A x2
Power output2: DC( 5.5 / 2.1 )
Power supply noise <1 mVrms
Output Power*
(1) DC5V 1Ax2
(2) DC15V 1A
(3) DC5V 1Ax1 + DC15V 0.9A
(4) DC5V 0.8A x2 + DC15V 0.8A
*Warning: Please select to your local voltage. The shell will be quite hot at high power output, this is normal.
