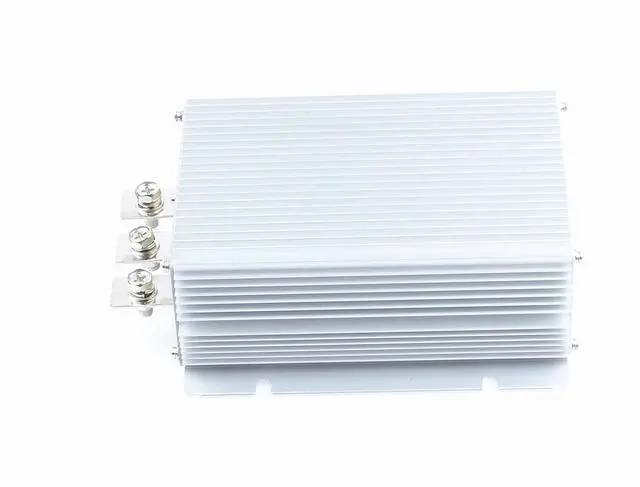

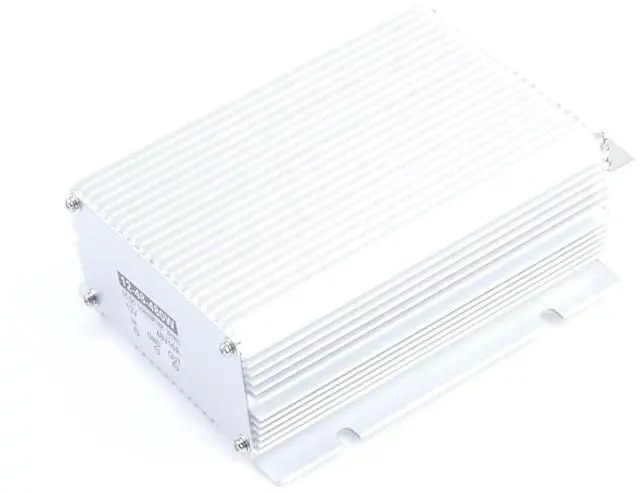

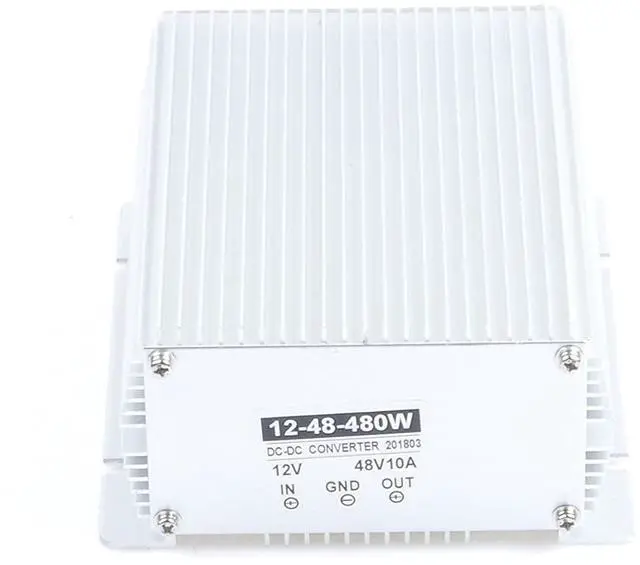

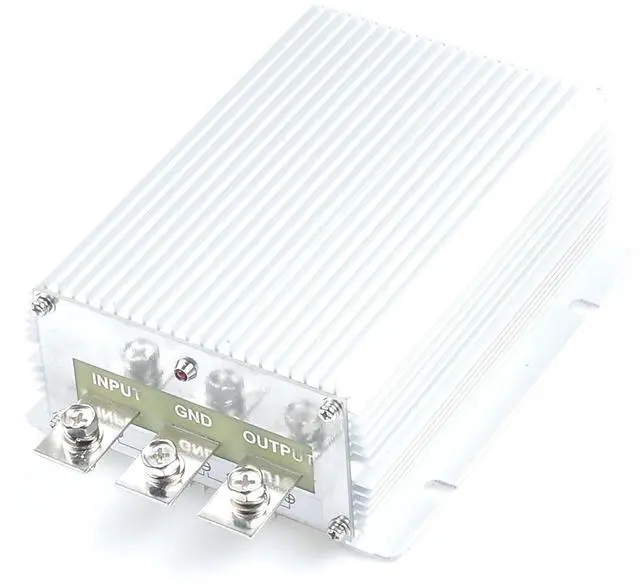

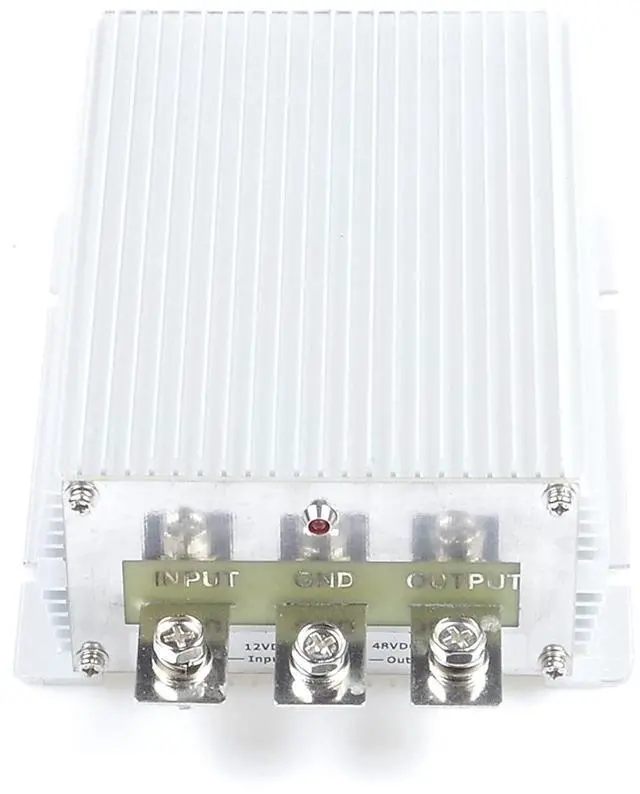

KNACRO DC Voltage Converter Regulator DC 12V (10V-18V) Step-Up to 48V 10A 480W Power Boost Waterproof (10A)
- Waterproof IP68 Voltage Converter Regulator DC 12V to DC 48V 10A 48W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.
- Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, car audio device.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5. 1 year warranty, lifetime up to 100, 000 hours. 6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-18V DC*
Output voltage: DC 48V 10A*
Output Rated Power: 480W*
Efficiency: 95% (half load); 94% (full load) *
Output Peak Power: 600W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 150*127*63mm (L*W*H) *
Weight: 1600gPackage
included: 1 * DC 12V to DC 48V Voltage Converter
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications
: *Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-18V DC*
Output voltage: DC 48V 10A*
Output Rated Power: 480W*
Efficiency: 95% (half load); 94% (full load) *
Output Peak Power: 600W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 150*127*63mm (L*W*H) *
Weight: 1600gPackage
included: 1 * DC 12V to DC 48V Voltage Converter
