Geekworm Raspberry Pi X735 V3.0 DC 6V-30V Width Voltage Input Power Management with Safe Shutdown & PMW Cooling Fan Expansion Board Compatible with Raspberry Pi 5/4B/3B+/3B
- Update: X735 V2.5 has been update to X735 V3.0 version with width voltage DC 6V-30V input in 2022 and remove latching switch port; You must install shell script to enable the PWM fan to work since it need PWM signal to run

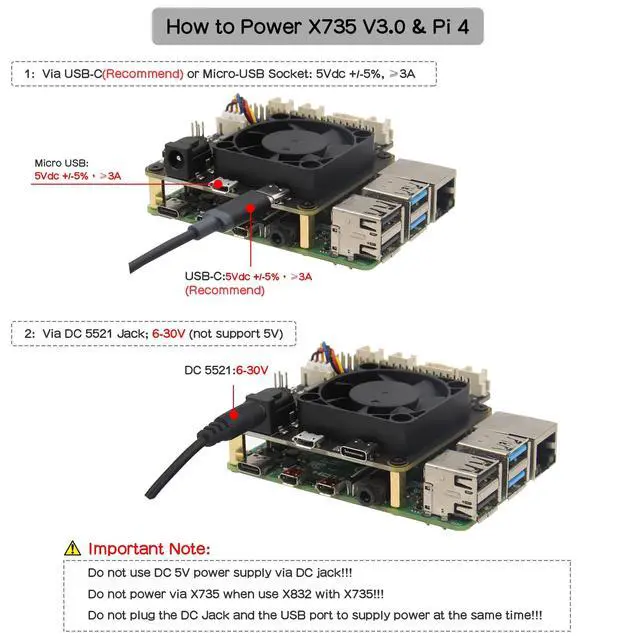

- How to Power X735 V3.0Via Type-C or Micro-USB 5Vdc +/-5%3A; Or via DC 5521 Jack 6-30V width voltage input (Not support 5V power supply via DC jack)
- Fully compatible with Raspberry Pi X825 V2.0, X862, X872/X873, X820, X850 to provide intelligent and safe power management; Reserved 40pin stackable header for add on boards
- User Manual: Google Geekworm Wiki and search X735 to visit the software guide; Not tested on openmediavault or other third party OS
- Note: Do not apply power to X735 via Type-C or Micro-USB and via DC 5521 Jack 6-30V at the same time
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Update: X735 V 2.5 has been update to X735 V 3.0 version with width voltage DC 6V-30V input in 2022 and remove latching switch port; You must install shell script to enable the PWM fan to work since it need PWM signal to run ^^ How to Power X735 V 3.0V ia Type-C or Micro-USB 5Vdc +/-5%3A; Or via DC 5521 Jack 6-30V width voltage input (Not support 5V power supply via DC jack) ^^ Fully compatible with Raspberry Pi X825 V 2.0, X862, X872/X873, X820, X850 to provide intelligent and safe power management; Reserved 40pin stackable header for add on boards ^^
User Manual: Google Geekworm Wiki and search X735 to visit the software guide; Not tested on openmediavault or other third party OS ^^
Note: Do not apply power to X735 via Type-C or Micro-USB and via DC 5521 Jack 6-30V at the same time
User Manual: Google Geekworm Wiki and search X735 to visit the software guide; Not tested on openmediavault or other third party OS ^^
Note: Do not apply power to X735 via Type-C or Micro-USB and via DC 5521 Jack 6-30V at the same time
