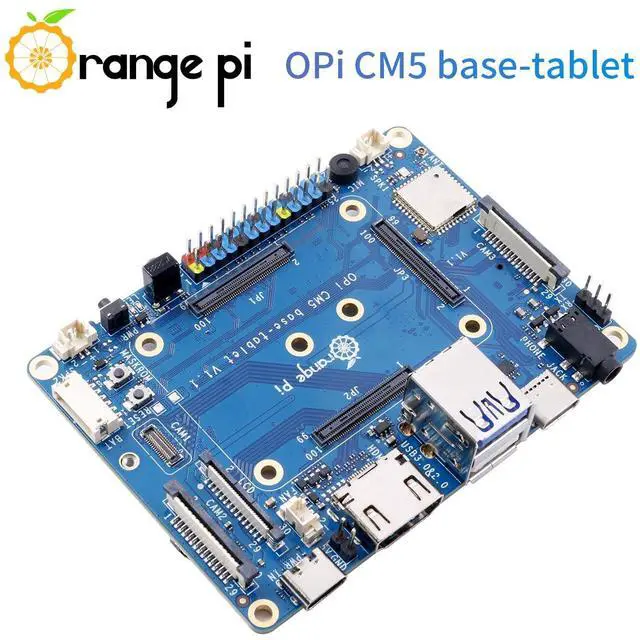

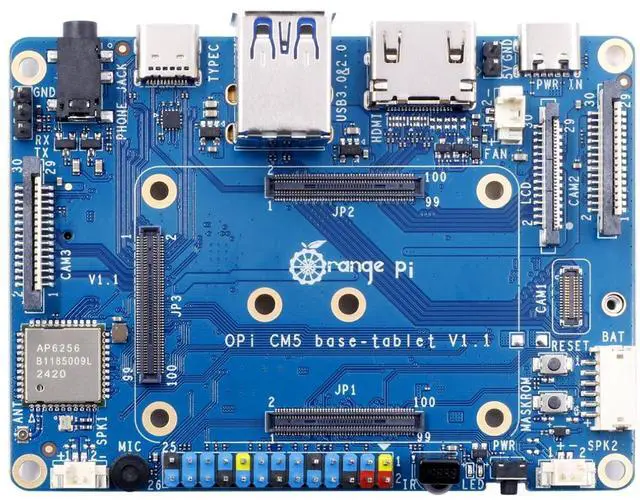

Orange Pi CM5 Tablet Base Board Rich Interface, Up to 8K @60Hz, with Wi-Fi5+BT 5.0, BLE Support for Orange Pi CM5
- Orange Pi CM5 tablet base board is an official Orange Pi base board that can be used with Orange Pi CM5 core board.
- Orange Pi CM5 tablet base board has Wi-Fi5+BT 5.0, BLE support, and standard CM5 connectors
- Orange Pi CM5 tablet base board can be used as a CM5 development system or as an embedded board integrated into end products.
- Makeing Orange Pi Compute Module 5 Rich interface and making it easy to use.
- USB: Type-C USB3.0, USB3.0 + USB2.0
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

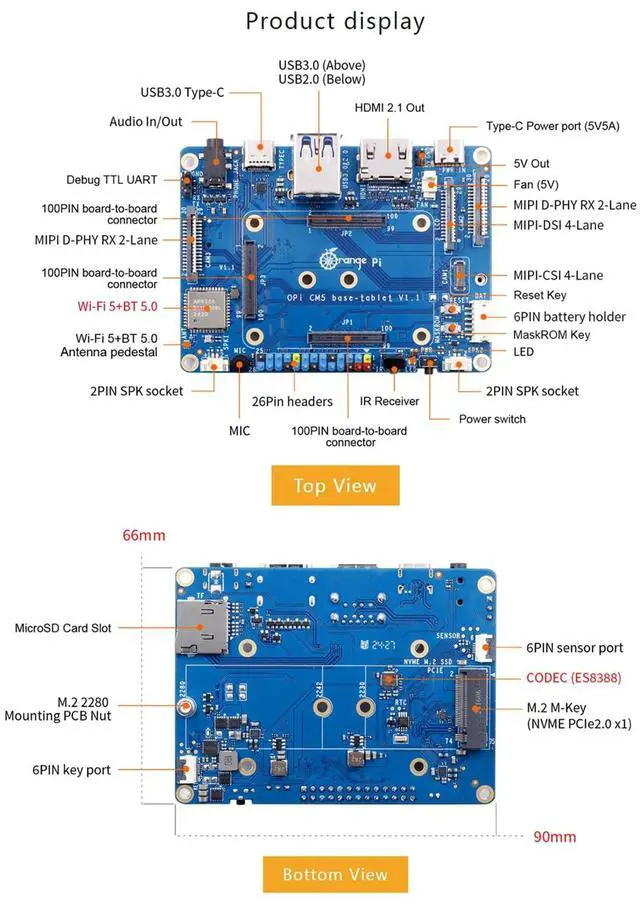

Hardware Parameters
Board-to-board connector: 3*100pin, 0.4 mm pin pitch, connector
model: df40c-100ds- 0.4 v

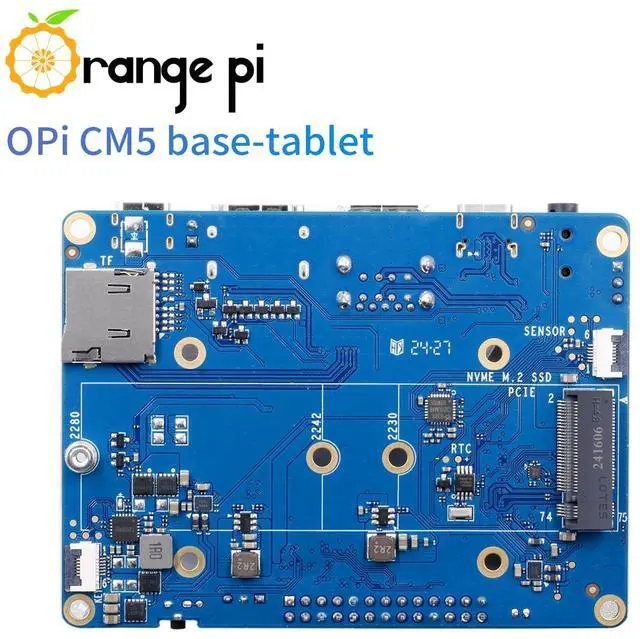

Memory: MicroSD (TF) slot
M. 2
MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or SATA 3.0 SSD
USB: Type-C USB 3.0
USB 3.0 + USB 2.0
Video output: HDMI 2.1, supports up to 8K @60Hz
DP 1.4 ALT 4Lane (shared TYPE C connector)
MIPI DPHY TX 4 Lane
Camera: MIPI CSI 4 Lane
2*MIPI DPHY RX 2Lane
Audio: 3.5 mm headphone jack audio in/out
HDMI 2.1 eARC
Input: onboard MIC
Output: 2*SPK sockets, 2pin 1.25 mm
Wi-Fi,
BT module: Onboard Wi-Fi5+BT 5.0 /BLE module: AP6256
Wi-Fi interface: SDIO 3.0
BT interface: UART/PCM

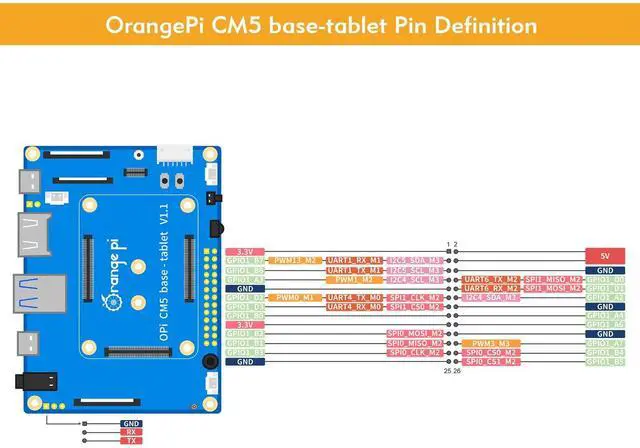

Expansion port - 26pin double-row pins: Dual row pin: 2.54 mm 26Pin
Support DC 5V and 3.3V power output.
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* MaskROM1*RESET1 * PWR IN
Power supply: Support Type-C power supply, 5V @ 5A
Battery Holder: Battery
holder: board-to-wire connection, 6pin, 1.5 mm pitch, supports single Li-ion battery charging function, charging current up to 3.78A
Button interface: 6pin FPC socket, pin distance 0.5 mm
Sensor interface: 6pin FPC socket, pin distance 0.5 mm
LED: Power indicator: red; status indicator: green
Fan: 5V 2pin 1.25 mm socket
SPK: 2PIN 1.25 mm socket
RTC: Test pad spare, can be connected to 3V spare RTC battery
Debugging: Debugging serial port UART
PCB:
Length: 90mm, width: 66mm, thickness: 1.6 mm
Weight: 43g
Board-to-board connector: 3*100pin, 0.4 mm pin pitch, connector
model: df40c-100ds- 0.4 v
Memory: MicroSD (TF) slot
M. 2
MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or SATA 3.0 SSD
USB: Type-C USB 3.0
USB 3.0 + USB 2.0
Video output: HDMI 2.1, supports up to 8K @60Hz
DP 1.4 ALT 4Lane (shared TYPE C connector)
MIPI DPHY TX 4 Lane
Camera: MIPI CSI 4 Lane
2*MIPI DPHY RX 2Lane
Audio: 3.5 mm headphone jack audio in/out
HDMI 2.1 eARC
Input: onboard MIC
Output: 2*SPK sockets, 2pin 1.25 mm
Wi-Fi,
BT module: Onboard Wi-Fi5+BT 5.0 /BLE module: AP6256
Wi-Fi interface: SDIO 3.0
BT interface: UART/PCM
Expansion port - 26pin double-row pins: Dual row pin: 2.54 mm 26Pin
Support DC 5V and 3.3V power output.
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* MaskROM1*RESET1 * PWR IN
Power supply: Support Type-C power supply, 5V @ 5A
Battery Holder: Battery
holder: board-to-wire connection, 6pin, 1.5 mm pitch, supports single Li-ion battery charging function, charging current up to 3.78A
Button interface: 6pin FPC socket, pin distance 0.5 mm
Sensor interface: 6pin FPC socket, pin distance 0.5 mm
LED: Power indicator: red; status indicator: green
Fan: 5V 2pin 1.25 mm socket
SPK: 2PIN 1.25 mm socket
RTC: Test pad spare, can be connected to 3V spare RTC battery
Debugging: Debugging serial port UART
PCB:
Length: 90mm, width: 66mm, thickness: 1.6 mm
Weight: 43g
