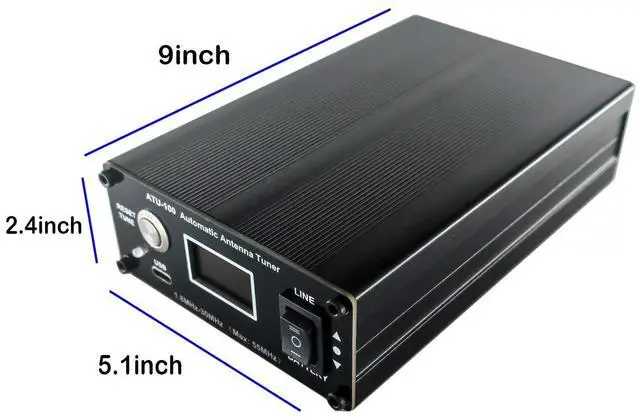

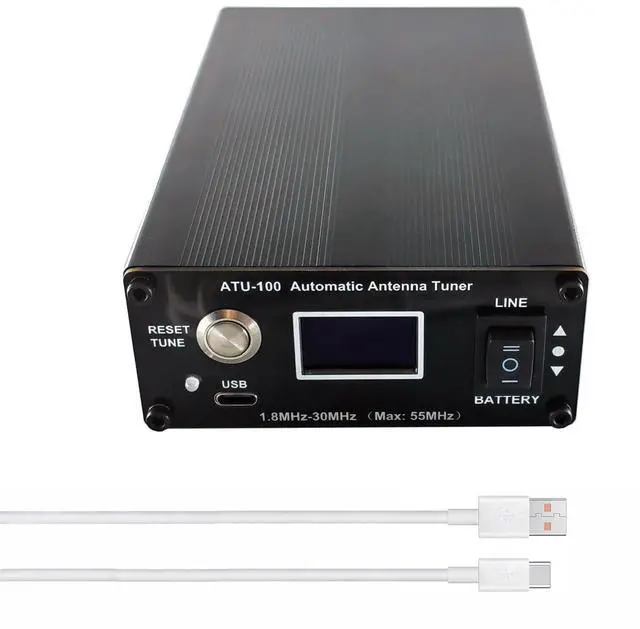

ATU-100 Automatic Antenna Tuner for Ham Radio, WOOKLEA 1.8-55MHz Auto Tuner with 5000mAh Battery, Low SWR OLED Display, Portable ATU 100 for POTA SOTA Field Operations
- Fast Auto-Tuning, Low SWR: Quick automatic tuning across 1.8-55MHz range - significantly reduces SWR adjustment time on all bands - A/M switch on back for seamless auto/manual mode toggle - compatible with most ham radios and antennas for flexible operation

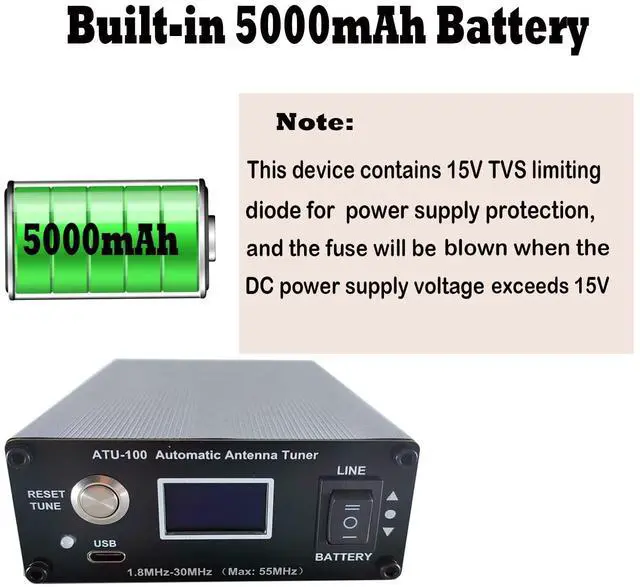

- 5000mAh Battery, Extended Field Use: High-capacity built-in battery supports all-day outdoor activities - ideal for POTA, SOTA, and portable operations - lightweight design for easy transport - charge with any USB output below 5V (charger not included)

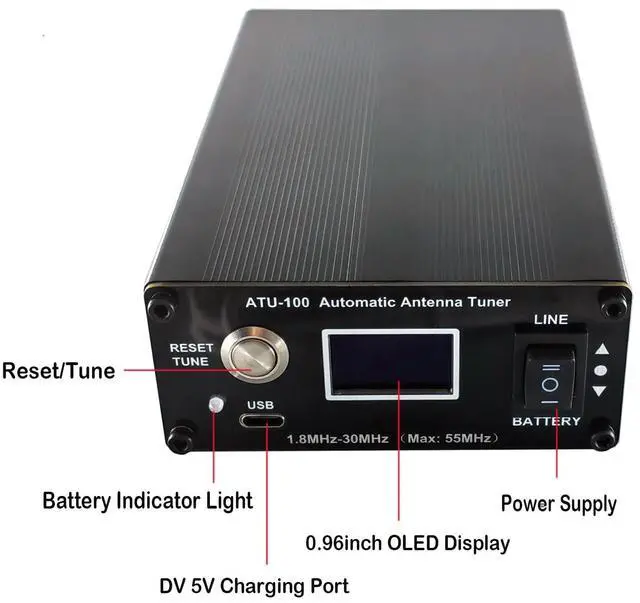

- Color OLED Display, Easy Operation: Vibrant color screen with clear, readable digits - real-time SWR and tuning status at a glance - intuitive interface suitable for beginners and experienced operators - no complex setup required
- Wide Compatibility, Versatile Use: Works with dipole, vertical, loop antennas and most ham radios - perfect for amateur radio communication, emergency comms, shortwave testing - essential gear for POTA, SOTA, DX contact and field day events
- Durabl
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Charging
port voltage: 5v (USB)
Optimal tuning frequency range: 1.8 -30MHz (maximum available frequency 55MHz, transmission
loss<8dBPower range: 1-18MHz or SSB/CW, 100W; 18-30MHz or FM/AM/FT8, 50W, 30-5MHz pass-through onlyAllowable power supply voltage range: 10- 14.5
V DCMaximum current consumption: 400
mAMaximum working power: 100wMaximum
possible measured power: 150WPower
measurement accuracy: 10%Minimum
installation step of inductance: 0.05 uHMinimum capacitance
installation steps: 10 pFMinimum power required to start tuning: 5W
Minimum possible measured power: 0.1WM easurement step for power up to 10W: 0.1WM easurement step for power higher than 10W: 1WMaximum
installed inductance: 8.53
uHMaximum installed capacity: 1869
pFWorking temperature range: - 20~55
Manual mode: press and hold the TUNE key to trigger the automatic adjustment of the equipment, so as to match the output impedance of the power amplifier (PA) with the antenna feeder.
Automatic mode: no key is required, and the system automatically starts to adjust when it detects that the standing wave ratio is greater than 1:3: 1. (This value can be adjusted) This device is in manual operation mode by default. The starting power threshold is 5W, and the screen is always on. At present, the optional functions include 1-5W startup, 10-second screen self-extinguishing/constant lighting, full automatic/manual mode, etc. The parameters used by the product are the main parameters tested by the developer during the software development process, ensuring the reliability of the equipment operation and use in the basic version. Many parameters can be changed by themselves, but they need to be changed carefully to prevent the equipment from being unavailable.
port voltage: 5v (USB)
Optimal tuning frequency range: 1.8 -30MHz (maximum available frequency 55MHz, transmission
loss<8dBPower range: 1-18MHz or SSB/CW, 100W; 18-30MHz or FM/AM/FT8, 50W, 30-5MHz pass-through onlyAllowable power supply voltage range: 10- 14.5
V DCMaximum current consumption: 400
mAMaximum working power: 100wMaximum
possible measured power: 150WPower
measurement accuracy: 10%Minimum
installation step of inductance: 0.05 uHMinimum capacitance
installation steps: 10 pFMinimum power required to start tuning: 5W
Minimum possible measured power: 0.1WM easurement step for power up to 10W: 0.1WM easurement step for power higher than 10W: 1WMaximum
installed inductance: 8.53
uHMaximum installed capacity: 1869
pFWorking temperature range: - 20~55
Manual mode: press and hold the TUNE key to trigger the automatic adjustment of the equipment, so as to match the output impedance of the power amplifier (PA) with the antenna feeder.
Automatic mode: no key is required, and the system automatically starts to adjust when it detects that the standing wave ratio is greater than 1:3: 1. (This value can be adjusted) This device is in manual operation mode by default. The starting power threshold is 5W, and the screen is always on. At present, the optional functions include 1-5W startup, 10-second screen self-extinguishing/constant lighting, full automatic/manual mode, etc. The parameters used by the product are the main parameters tested by the developer during the software development process, ensuring the reliability of the equipment operation and use in the basic version. Many parameters can be changed by themselves, but they need to be changed carefully to prevent the equipment from being unavailable.
