VSDISPLAY 12.3" 12.3 Inch 1920x720 FHD IPS LCD Screen HSD123KPW2-D10 with HD-MI USB SD Card LCD Controller Board VS-56S2 Multimedia Supports MP4

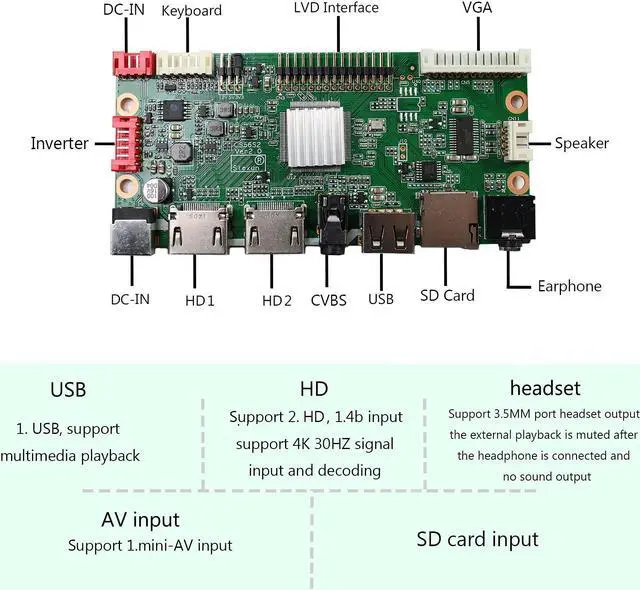

LCD Controller Board:
HD-MI USB SD AV LCD Controller Board Work for 12.3 in LVDS LCD Screen
Input Power Adapter: 12Vdc more than 2A
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Multimedia supports MP4
OSD: Support Menu Contrast Brightness
Audio Input: HD-MI USB SD AV
Audio Output: Speaker Earphone
Key Board: Power Menu Up Down Exit
Language: English

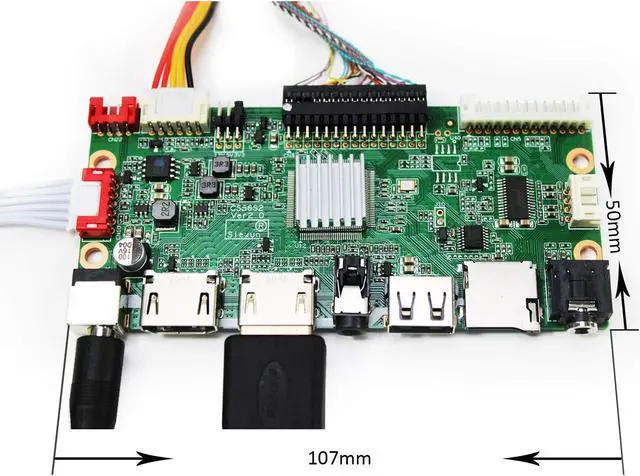

Board Size: 107mm x 50mm x 15mm

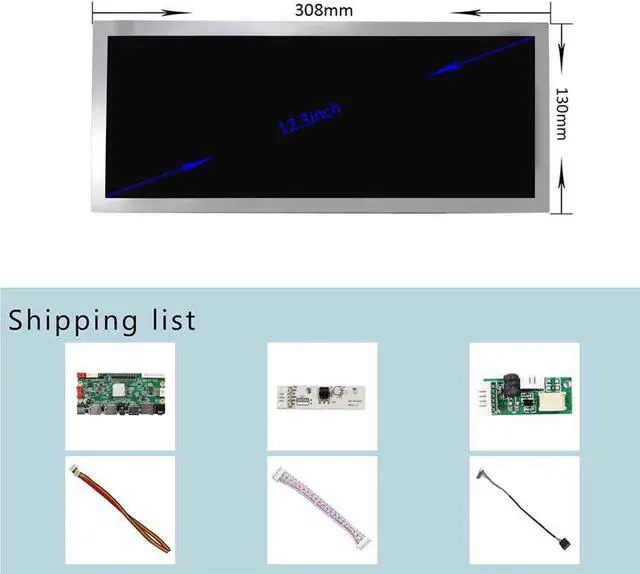

12.3" HSD123KPW2-D10 1920X720 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1920RGB)x720
Outline Size 308.1 x 130x 15.6 (HxVxD)
Display Area 292.032 x 109.512 (HxV)
Brightness 850 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50 pins
Backlight WLED
Input Voltage 3.3V (Typ. )

Packing list:
1x HD-MI USB SD AV LCD Controller Board Work for 12.3 in LVDS LCD Screen
1x 12.3 inch HSD123KPW2 1920X720 LCD Screen
1x Converter Board
1x Signal Cable
1x Keyboard With Cable
