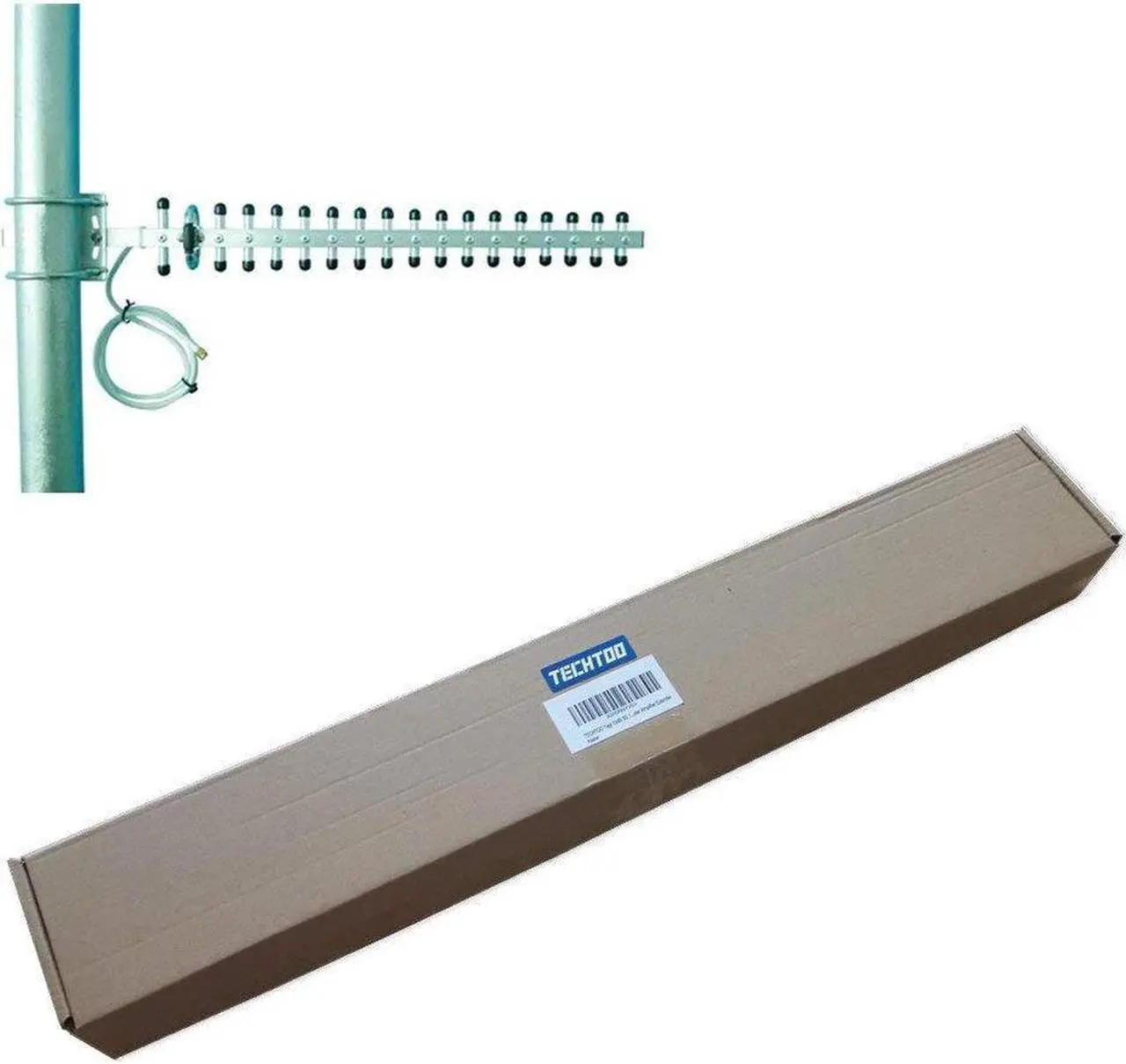

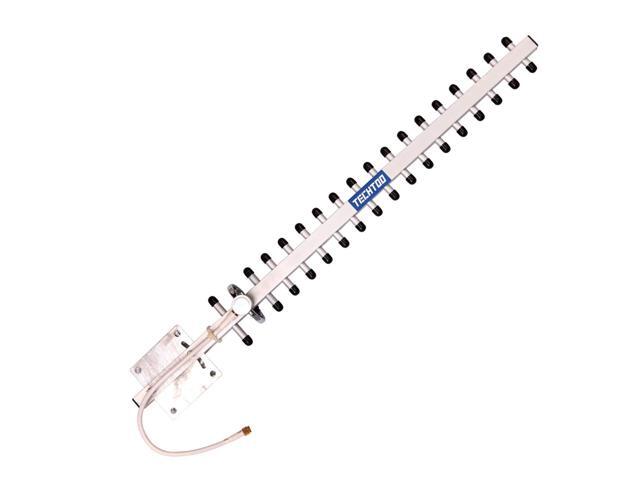

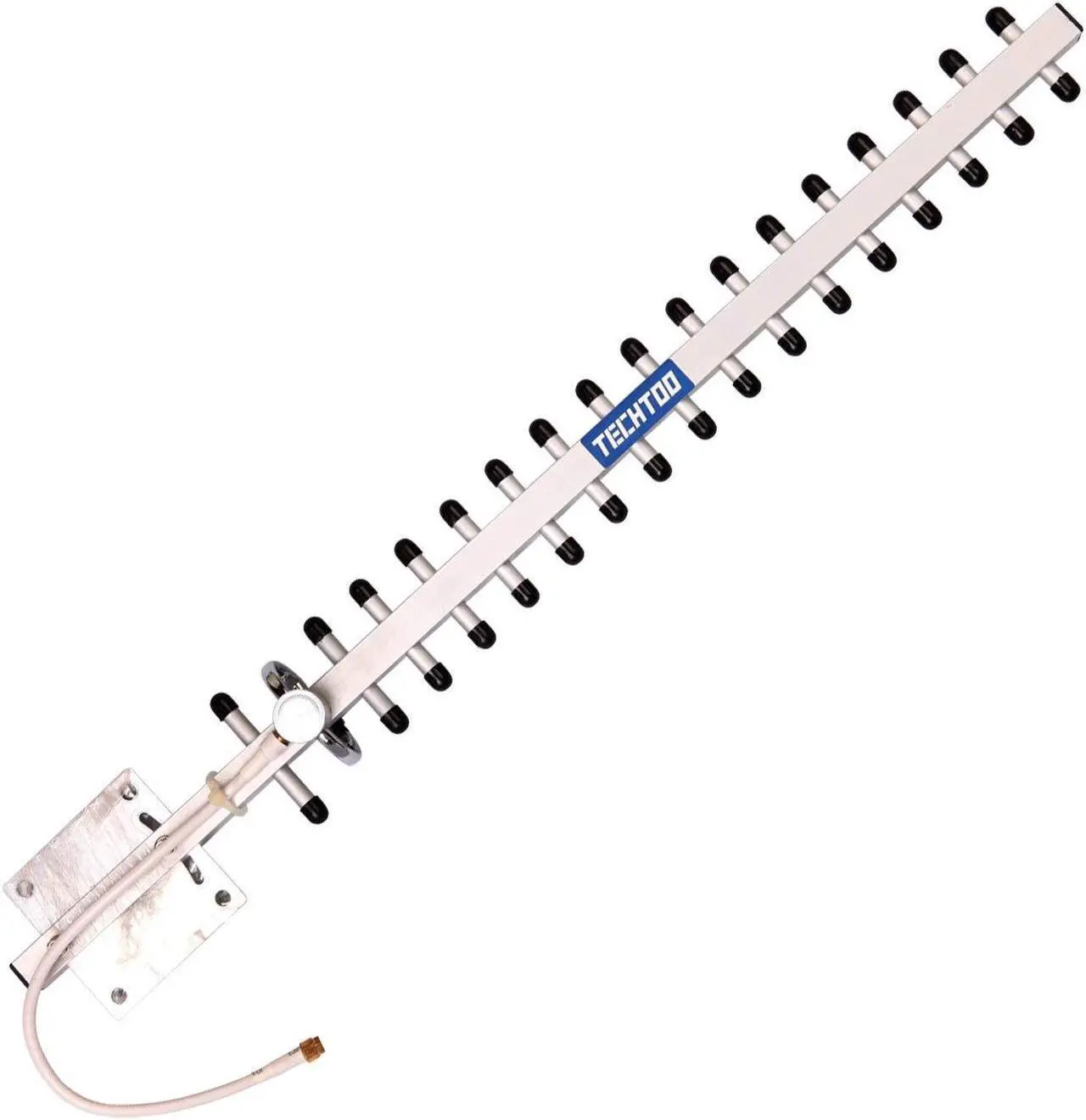

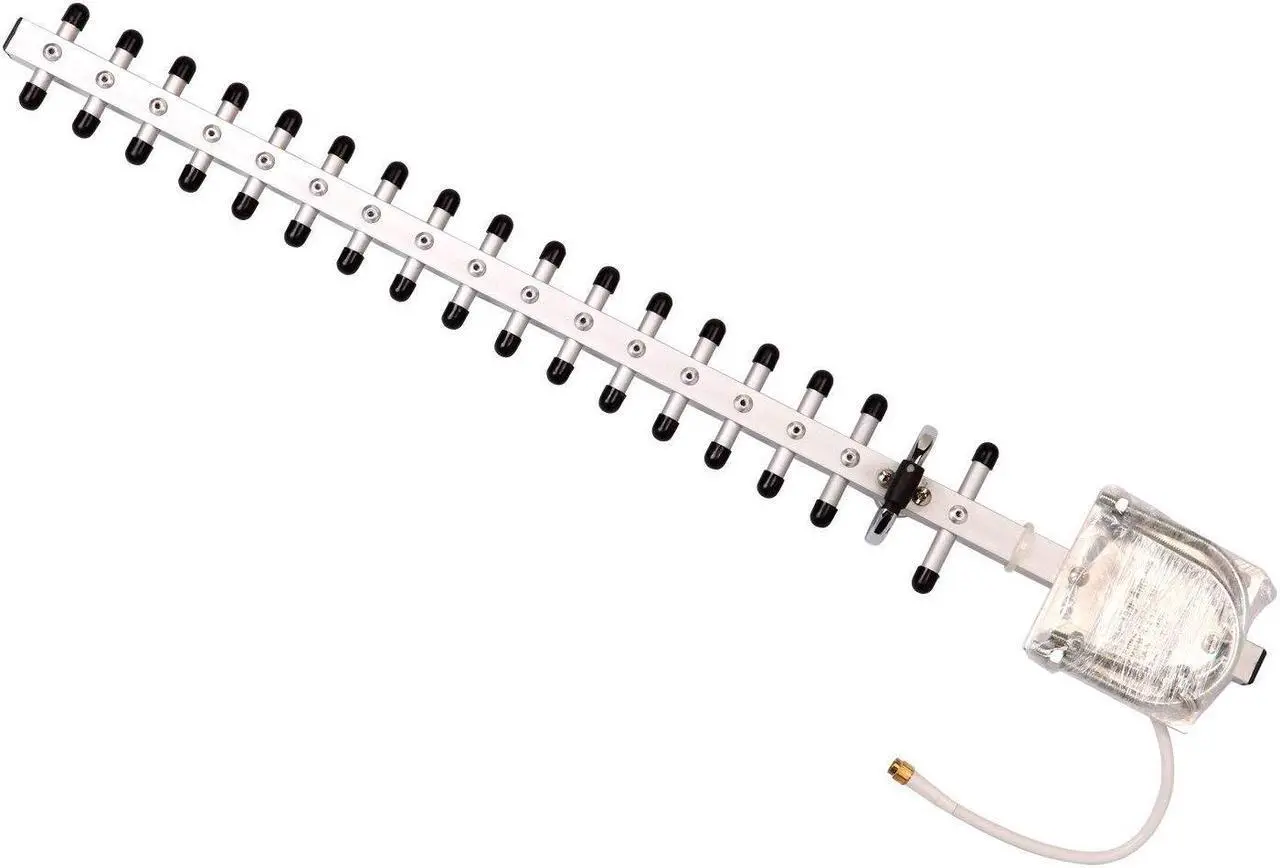

TECHTOO WiFi Antenna 2.4GHz 18dBi High Gain Yagi Directional Antenna Booster with RP-SMA Connector for Network Router/Reapter/USB Adapter/Extension Network PCI Card/Security Camera

TECHTOO High-Performance Yagi Antenna Series is Constructed of Aluminum for Outstanding Service Life.
Individual Elements Are Braised to The Main Beam for Permanent Attachment. These Antennas Have High Gain and Good Front to Back Performance to Minimize External Interference.

It can be mounted in vertical or horizontal polarization.
Provides the User with Anodized Aluminum Boom, Solid Elements, Heavy Duty Mounting Hardware Waterproof Design All-Weather operation.

Each of Our Yagi Antenna is Individually Tested Before Leaving Our Manufacturing Facility.
TECHTOO Yagi antenna features at Cost-Effective Price.

Electrical

Specifications

:
Range: 2400-2483
Bandwidth: 83
Gain (dBi): 18
Element: 18
Half-power beam width (deg): H30 V28
Front-to-back ratio (dB): 16
VSWR: 1.5
Input Impedance: 50
Polarization: Horizontal or Vertical
Maximum input power (W): 100
Lightning protection: DC Ground

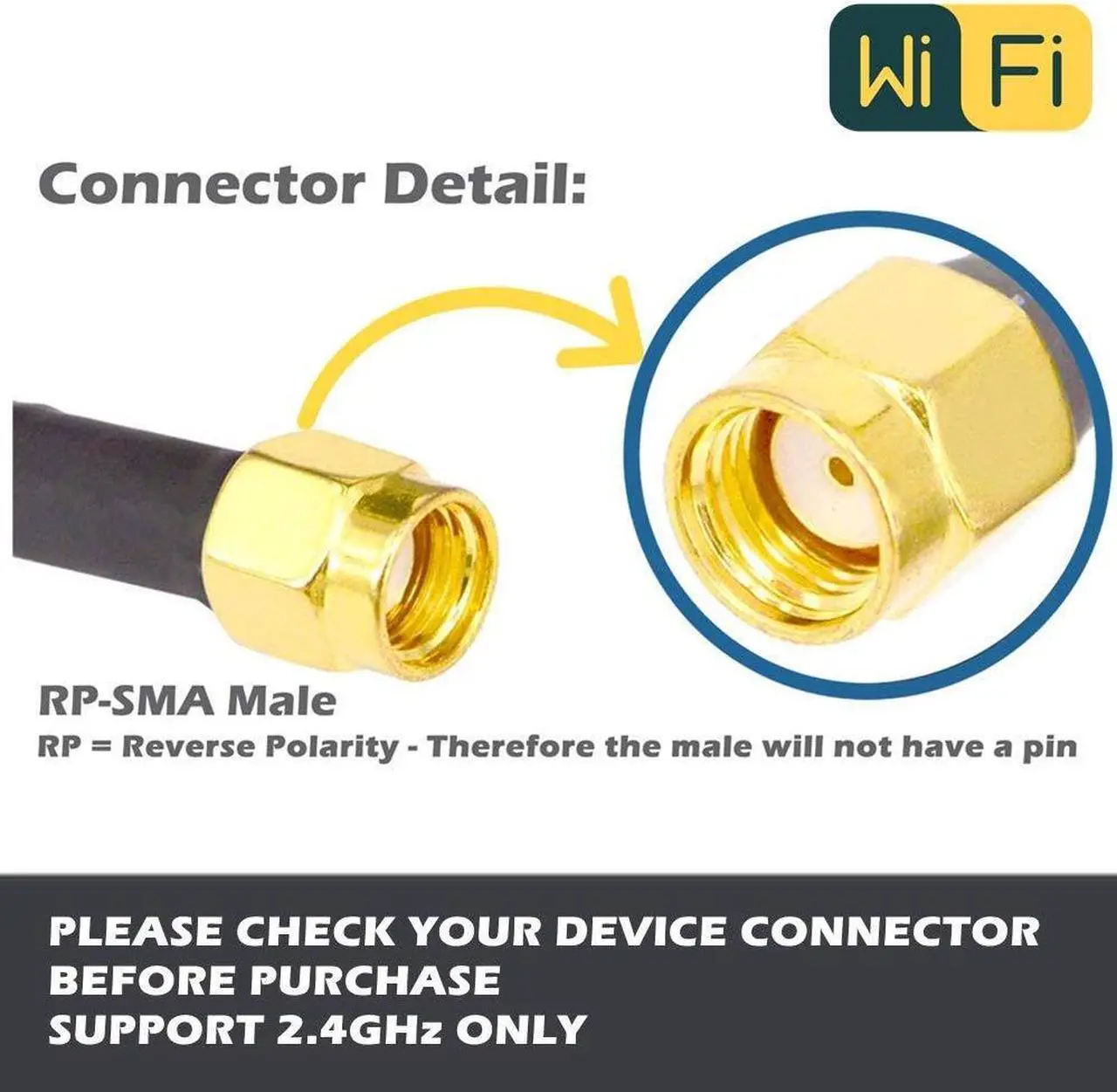

Input connector type: RP-SMA
Dimensions (mm): 580*70*44
Cable length (m): 0.3
Operating temperature (degc): -40? 60
Rated Wind Velocity(m/s): 60

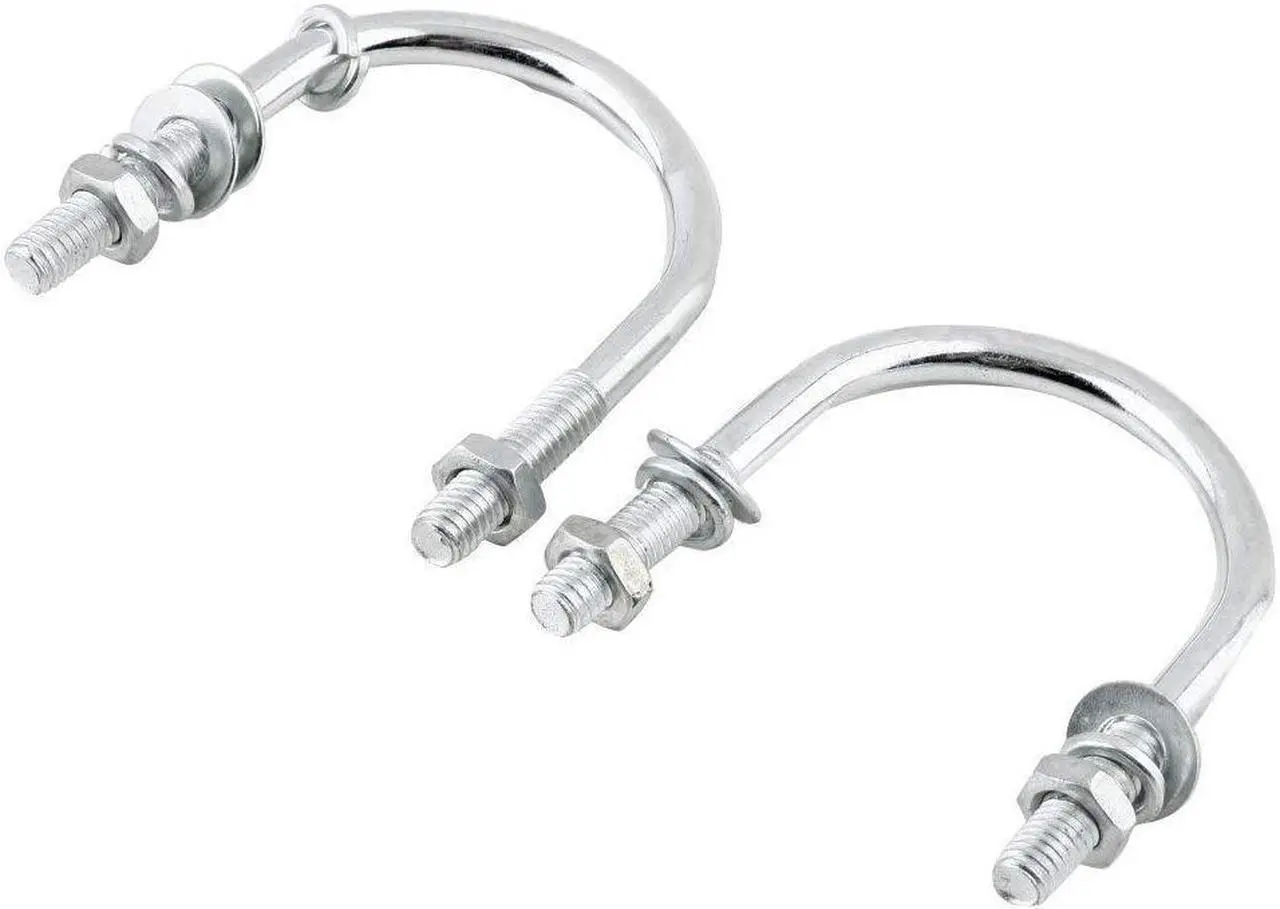

Clamp: U-Shape
Mounting hardware (mm): 35-50

Note:

1. This Yagi Antenna Compatible with 2400-2483 Only.

2. Please Contact Us If You Need Other Connector Instead of RP-SMA

IMPORTANT NOTE: This is a passive antenna, It can not work alone. It must work together with other active network device like signal booster/repeater/router/access point, etc.
