1MHz-6GHz Open Source Software Defined Radio with SDR Development Board for HackRF One, Compatible with GNU Radio, SDR, and More for Testing and Development
- Designed to support testing and development of modern and next-generation radio technologies, it is an open source hardware that can be used as a USB peripheral or programmed for independent .
- 1MHz to 6 GHz operating frequency.
- Software-configurable RX and TX gain and baseband filter.
- Software-controlled antenna port power (50mA at 3.3 V).
- SMA female clock input and output for synchronization.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Software Defined Radio Platform
Net Weight: 60 g / 2.1 oz(approx. )

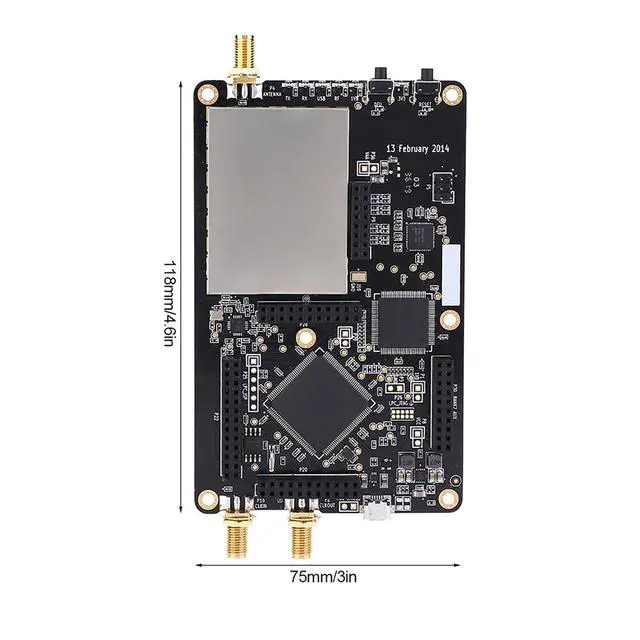

Product Size: Approx. 118 x 75 x 11mm / 4.6 x 3 x 0.4 in

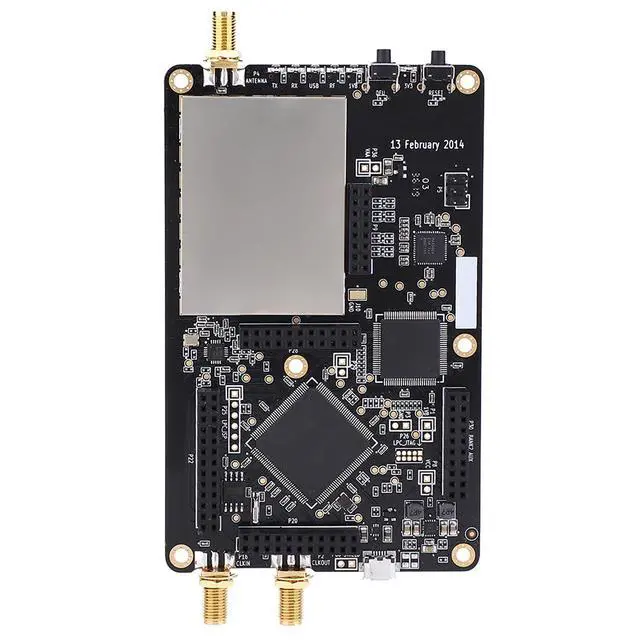

For HackRF One hardware is mainly composed of the following parts:
RFFC5072: The mixer provides a local oscillator from 80MHz to 4200MHz
2.3GH z to 2.7GH z Broadband RF Transceiver
MAXS864: ADC / DAC, 22MHz sampling rate 8bit
LPC4320 / 4330: ARM Cortex M4 processor, clocked at 204MHz
Si5351B: I2C programmable arbitrary CMOS clock generator, providing 40MHz50MHz and sampling clock by 800MHz frequency division
MGA- 81563: 0. 1-6GHz 3V, 14dBm amplifier
SKY 13317: 20 MHz- 6.0 GHz RF single pole three throw (SP3T) on
SKY 13350: 0. 01- 6.0GH z RF single pole double throw (SPDT) switch
Taking the receiving process as an example, the process after the enters through the antenna is as follows:
1. The RF switch determines whether the amplifier is amplified by a 14dB amplifier.
2. High-pass or low-pass filtering of the through the image suppression filter
3. RFFC5072 chip mixing to 2.6GH z fixed IF
a. The latest firmware
Item Type: Software Defined Radio Platform
Net Weight: 60 g / 2.1 oz(approx. )
Product Size: Approx. 118 x 75 x 11mm / 4.6 x 3 x 0.4 in
For HackRF One hardware is mainly composed of the following parts:
RFFC5072: The mixer provides a local oscillator from 80MHz to 4200MHz
2.3GH z to 2.7GH z Broadband RF Transceiver
MAXS864: ADC / DAC, 22MHz sampling rate 8bit
LPC4320 / 4330: ARM Cortex M4 processor, clocked at 204MHz
Si5351B: I2C programmable arbitrary CMOS clock generator, providing 40MHz50MHz and sampling clock by 800MHz frequency division
MGA- 81563: 0. 1-6GHz 3V, 14dBm amplifier
SKY 13317: 20 MHz- 6.0 GHz RF single pole three throw (SP3T) on
SKY 13350: 0. 01- 6.0GH z RF single pole double throw (SPDT) switch
Taking the receiving process as an example, the process after the enters through the antenna is as follows:
1. The RF switch determines whether the amplifier is amplified by a 14dB amplifier.
2. High-pass or low-pass filtering of the through the image suppression filter
3. RFFC5072 chip mixing to 2.6GH z fixed IF
a. The latest firmware
