BAOFENG UV-5R Mini Two Way Radio BF-5R Mini Walkie Talkie Wireless Power Adjustable Tiny Size Frequency Copy 999 Channels Type-C Portable Ham Walkie Talkie (Green)
- Frequency range: 144-148MHz/420-450MHz

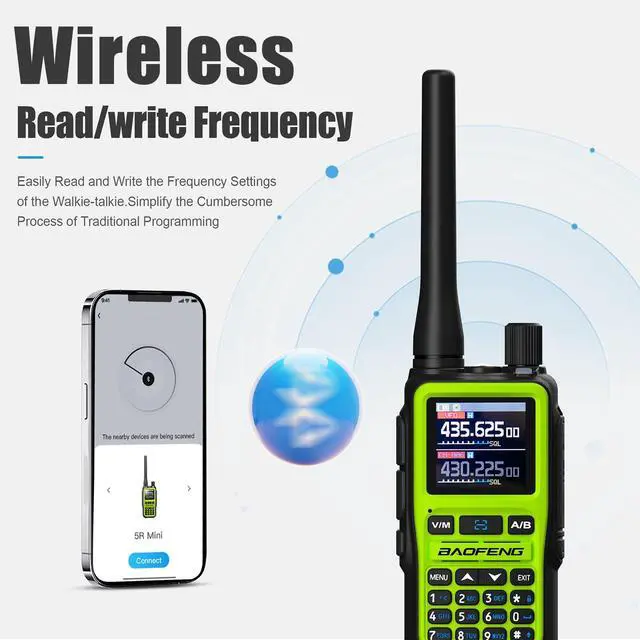

- Wireless APP ProgammingConnect to the application and easily, you can read and programme frequency through wireless, quickly programme frequencies anytime, anywhere

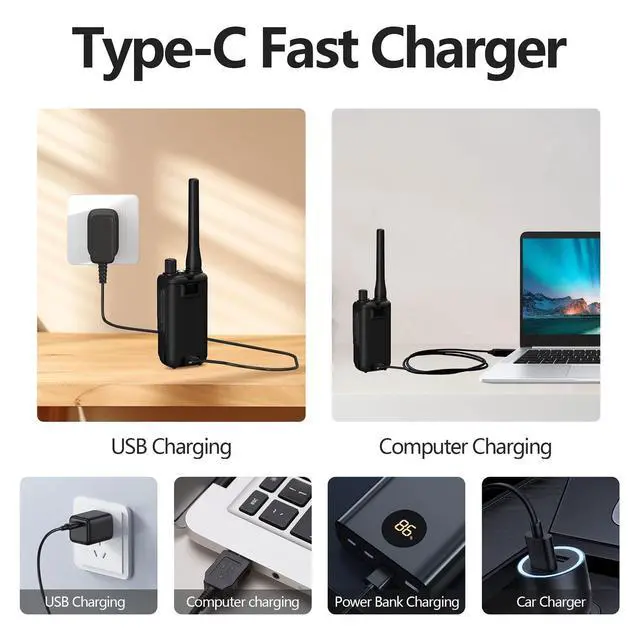

- The UV-5R MINI radio uses a Type-C charging port, allowing you to charge it in your car like a phone, or easily with a power bank or laptop. Its portability makes it easy to use on your travels

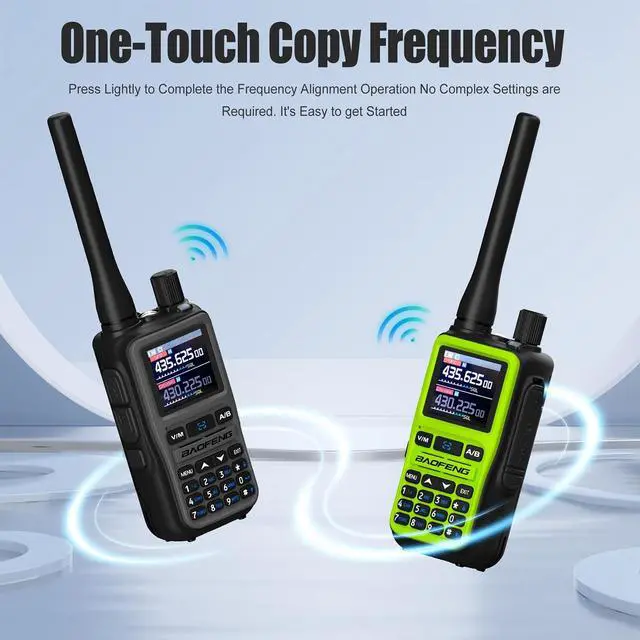

- Wireless Copy FrequencyPress the button to enter the "Search" interface. Press it again, and the 5r mini will search for other radio transmission frequencies and security codes
- Dual PTT, dual display, dual watch
+
+
Overview
Specs
Reviews

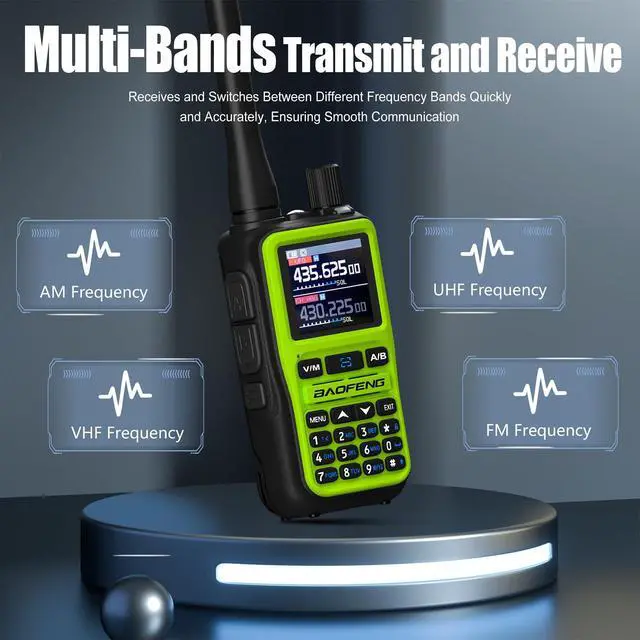

Features and Functions 1.6 band scan receiver, FM78-108MHZ; AM108-136MHZ; VHF136-174MHz, 220-260MHz; UHF400- 520MHz, 350-390MHz. 2. Transmit frequency VHF 144-148MHz; UHF420-450MHZ. 3.5W /2W RF output, dual PTT transmitter. 4. Wireless read/write frequency. 5.1. 44" TFT large screen, full keyboard, full open menu operation, local channel storage and deletion. 6. Full keyboard manual frequency input, 999 channel memory. 7. One-click frequency pairing, easy pairing and grouping. 8.
Relay function settings: frequency difference, frequency difference direction, relay activation audio settings. 9. Alarm function (three types of alarm settings), to protect your security. 10. Built-in input method, supports local editing of channel name, receiving frequency, transmitting frequency. 11. DTMF encoding and decoding function, 20 DTMF calls. 12. Frequency hopping function. 13.
Side button function customization: radio, scan, sweep, voice control, flashlight, alarm. 14. FM radio function (receive frequency 78~108MHz). 15. Automatic or manual keypad lock, backlight selection. 16. Support Type-C charge, more convenient range.
GeneralReceiver Frequency: FM 76-108
MHzTransmission Frequency: VHF 136-174MHz, UHF 400-520MHz, 350-390MHzVHF 144-148MHz, UHF 420-450MHzChannel
Spacing: 25.0KH z (Wide) / 12.5KH z (Narr)
Memory Channel: 999
GroupsOperation Voltage: DC 7.4
V 10%Dimensions: 108mmx52mmx37mm (No antenna)
Weight: 200g (Battery pack included)
Transmission current: 1600mAReceive
Sensitivity: 0.25 uV (12dB SINAD) Rated
Audio Power Output: 1W
@16 ohmsReceive current: 380mAConnection
for accessories: 2 pin
Kenwood jackAntenna impedance: 50

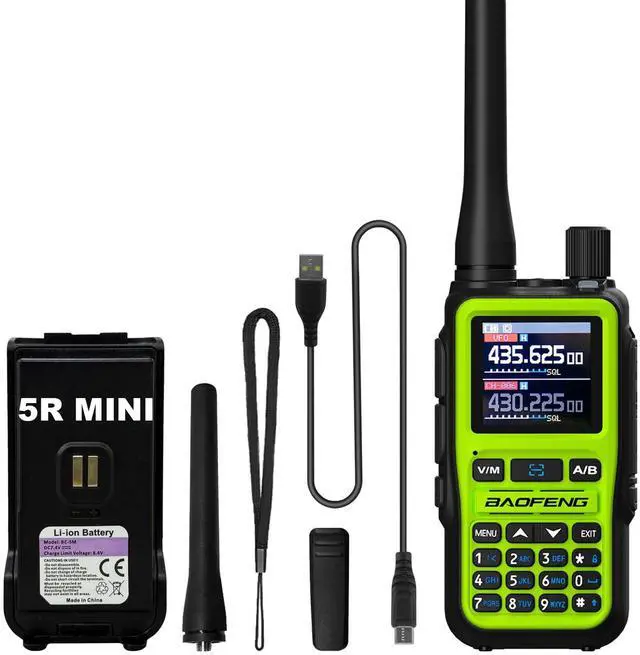

OhmPackage Included: 1 * Radio (The color of the intercom host is based on your choice of color) 1 * Antenna1 * battery1 * USB Type-C Charger1 * Lanyard1 * Belt Clip1 * User manualNote1. This link has four colors, please choose what you need before you order again to avoid unnecessary misunderstanding. 2. Please allow 1-2 CM differences due to manual measurement, thanks. 3. Because of the different monitors and resolutions, the actual object received will have a slight color difference from the picture, please understand.
Relay function settings: frequency difference, frequency difference direction, relay activation audio settings. 9. Alarm function (three types of alarm settings), to protect your security. 10. Built-in input method, supports local editing of channel name, receiving frequency, transmitting frequency. 11. DTMF encoding and decoding function, 20 DTMF calls. 12. Frequency hopping function. 13.
Side button function customization: radio, scan, sweep, voice control, flashlight, alarm. 14. FM radio function (receive frequency 78~108MHz). 15. Automatic or manual keypad lock, backlight selection. 16. Support Type-C charge, more convenient range.
GeneralReceiver Frequency: FM 76-108
MHzTransmission Frequency: VHF 136-174MHz, UHF 400-520MHz, 350-390MHzVHF 144-148MHz, UHF 420-450MHzChannel
Spacing: 25.0KH z (Wide) / 12.5KH z (Narr)
Memory Channel: 999
GroupsOperation Voltage: DC 7.4
V 10%Dimensions: 108mmx52mmx37mm (No antenna)
Weight: 200g (Battery pack included)
Transmission current: 1600mAReceive
Sensitivity: 0.25 uV (12dB SINAD) Rated
Audio Power Output: 1W
@16 ohmsReceive current: 380mAConnection
for accessories: 2 pin
Kenwood jackAntenna impedance: 50
OhmPackage Included: 1 * Radio (The color of the intercom host is based on your choice of color) 1 * Antenna1 * battery1 * USB Type-C Charger1 * Lanyard1 * Belt Clip1 * User manualNote1. This link has four colors, please choose what you need before you order again to avoid unnecessary misunderstanding. 2. Please allow 1-2 CM differences due to manual measurement, thanks. 3. Because of the different monitors and resolutions, the actual object received will have a slight color difference from the picture, please understand.
