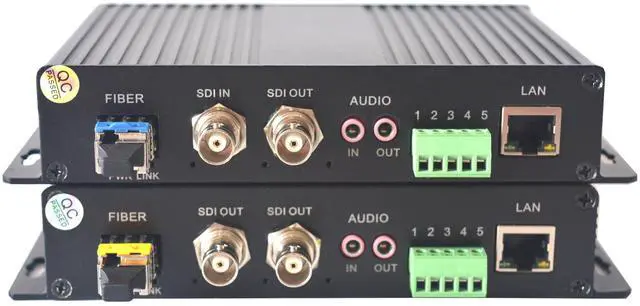

Wekuant 3G-SDI Over Fiber Optic Media Converter SDI Video Audio 100Mbps Ethernet RS422 Data to Fibre Adapter LC-LC Singlemode Single Fiber up to 20Km 3G SFP Include A Pair

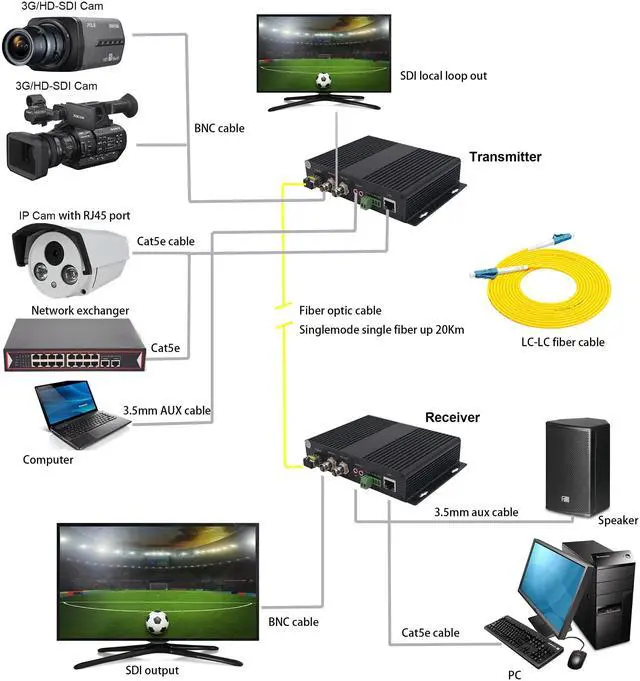

- The 3G-SDI fiber converter can extend one 3G-SDI or HD-SDI Video/Audio signal over a fiber optic to far end, long distance transmission, Up to 12.4Mile (20Km) by a Single-mode fiber. with two 3.125G SFP Optical module, LC simplex port, SDI signal is with embedded audio transmission
- Support SMPTE424M(3G-SDI), SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@60/30/25, 1080i@60/50, 59.94 and more
- Support Video loop out and Bi-directional RS422 data, Support embedded digital audio stream and 10/100Mps ethernet (RJ45 port) which can extend your networking signal through same fiber optic cable to far end up to 12.4miles, it also can use for IP camera with RJ45 port and More
- High quality design, with clock recovery, clock shaping, the function can make sure the video image no flicker
- Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, it will work immediately
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

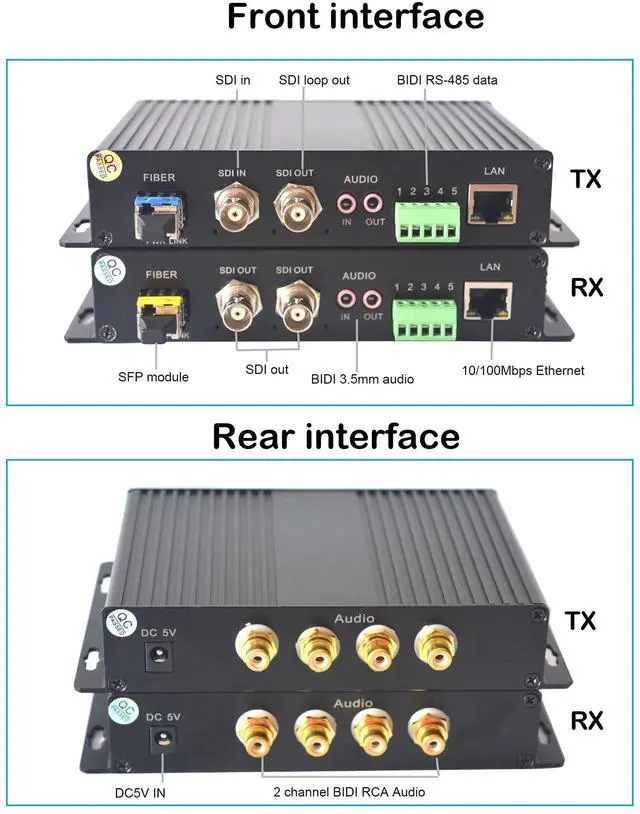

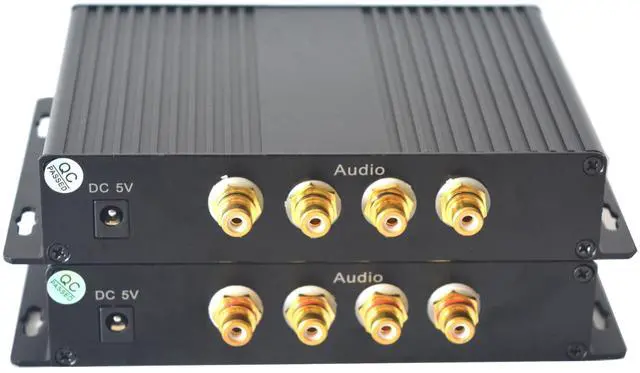

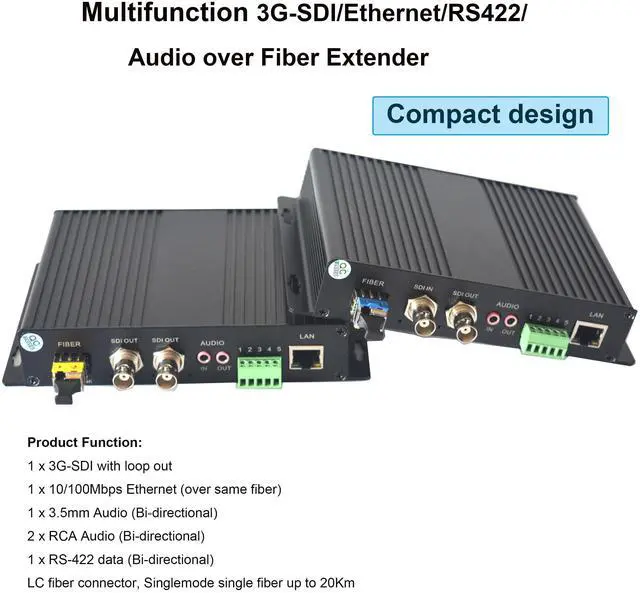

Product Function: 1 x 3G-SDI with loop out1 x 10/100Mbps Ethernet (over same fiber) 1 x 3.5 mm Audio (Bi-directional)2 x RCA Audio (Bi-directional)1 x RS-422 data (Bi-directional)LC fiber connector, Single-mode single fiber up to 20KmSpecification: Working
voltage: AC100V~240V, DC5V/2AOuter
box size: 172x112x32mm (LxWxH)
Weight: about 1.2K g per set (TX and RX).
Package: carton boxPackage
Include: 1 x 3G-SDI fiber transmitter1 x 3G-SDI fiber receiver1 x 3M LC-LC SM fiber patch cord2 x External Power supply adapters (US standard) 1x User Manual
voltage: AC100V~240V, DC5V/2AOuter
box size: 172x112x32mm (LxWxH)
Weight: about 1.2K g per set (TX and RX).
Package: carton boxPackage
Include: 1 x 3G-SDI fiber transmitter1 x 3G-SDI fiber receiver1 x 3M LC-LC SM fiber patch cord2 x External Power supply adapters (US standard) 1x User Manual
