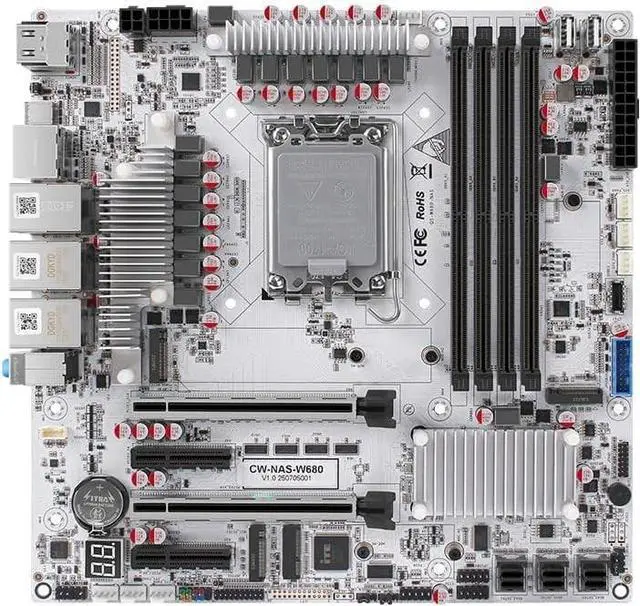

W680 12 Bay NAS ATX10Gbps Server NAS Motherboard Workstation/Server Grad Four ddr5 Two hdmi Two dp, 2x2.5G 3xnvme Support vPro Remote Management FunctionMotherboard+3xSFF8643

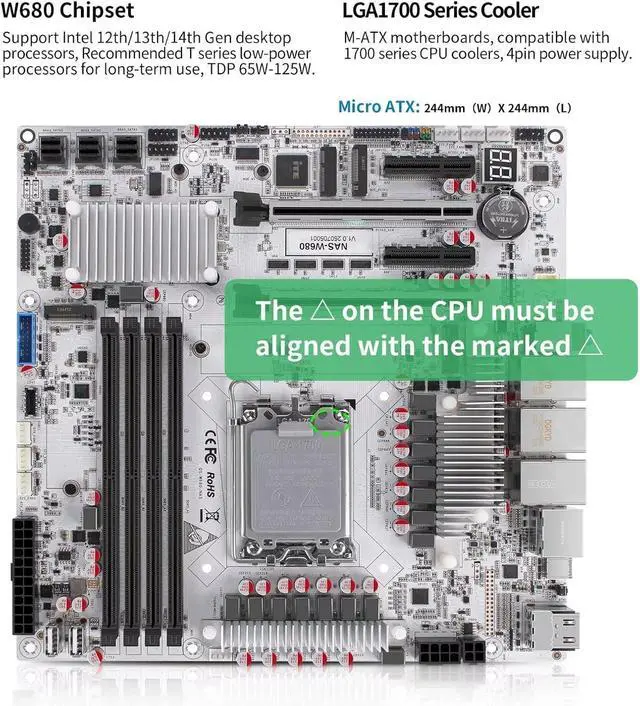

- LGA1700 Socket: W680 12-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors, which are more energy efficient. It's 9.6" x 9.6" Micro ATX form factor, basic TDP is 125W, and it supports Windows 10/11, Linux
- High Productivity: 4* desktop U-DIMM DDR5 RAM (it supports non-ECC and unbuffered-ECC memorry), MAX 128GB, 3* M.2 NVMe 2280/22110 size. Expandable to 12* SATA via 3* SFF-8643 cable we supplied, stable and ultra-fast transfer speed. 1* Type-C (USB3.2 10Gbps, Supports data transfer only), 4* USB3.2, 2* USB2.0
- Features:2 USB3.2 (10G) +2 USB3.2(10G) +2 USB2.0 Total 6 USB ports Built-in 1 USB3.0 female connector + 1 Type-E female connector 1 ALC897 audio chip Support microphone input and audio output
- 2.5G i226-LM & 10G Network Port: This W680 NAS motherboard has 1* 10GB AQC113CS network chip on board (Since some systems are not compatible with this AQC113CS 10GbE NIC chip, please confirm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCI-Ex16 signal support automatically split into 2 Gen4x8 signals + Gen4x8 signals support Intel 12/13/14 generation LGA1700 desktop
CPU Note: vPro function requires i5-1X500 processor can be used F-series does not support the need for nuclear display to support
Note: the default support for 125WTDP processor is not recommended to use the K-series processor
Note: It is recommended to use 13500T and other processors with T processor, power saving and low power consumption for long-term use Support 4 ordinary desktop UDIMM-DDR5 memory Support Pure ECC Server Memory Error Correction Technology 4*U-DIMM DDR5 four-channel memory slots

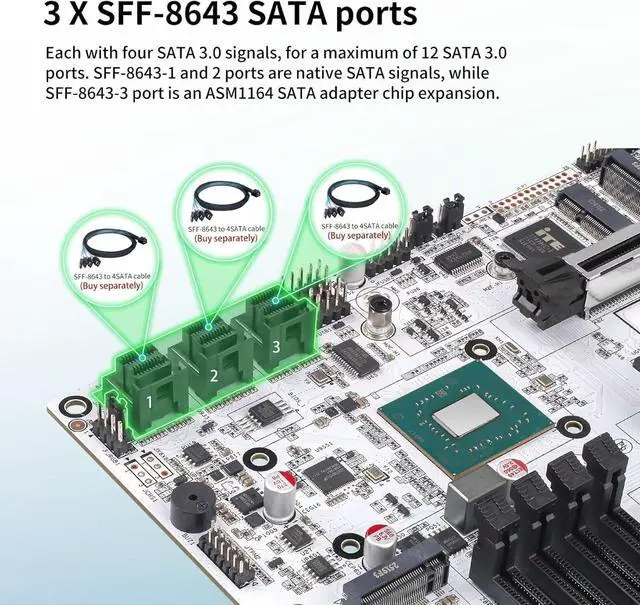

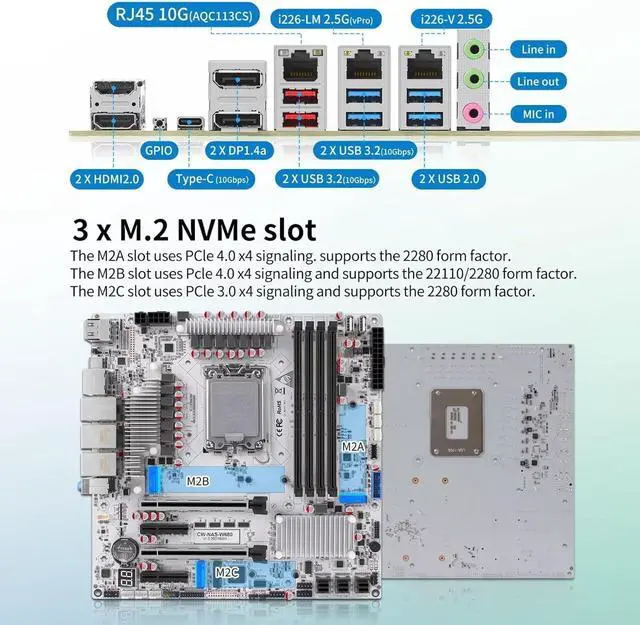

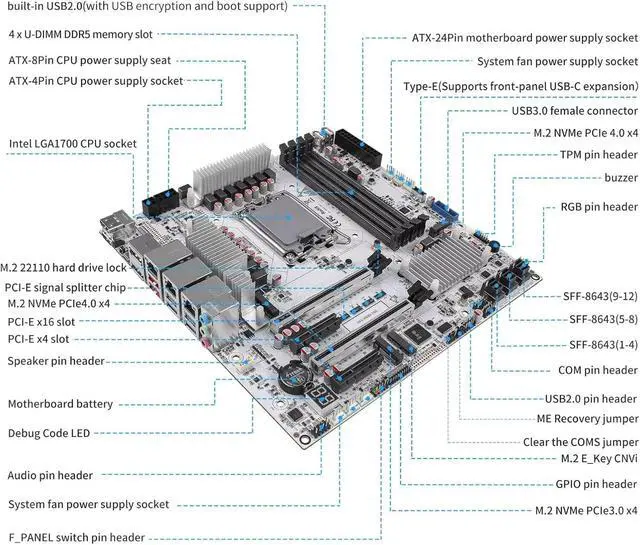

DDR5 default support 5600MHz (Note: 12-generation processors only support 4800MHz) Maximum capacity of single memory 32GB Quad Memory Maximum 128GB 2*M. 2 NVMe PCle 4.0 x4 signals/1*M. 2 NVMe PCle 3.0 x4 Total 3 M. 23*SFF-8643 sockets SFF-8643-1 and 2 sockets are native signals SFF-8643-3 is ASM1164 expansion signals -1*MARVELLAOC113CS 10G RJ45 electrical port 1*Intel i226-V 2.5G RJ45 electrical port 1*Inteli226-LM 2.5GRJ 45 electrical port (support vPro) Remote Management Function CPU decides to integrate the core display 2 HDMI 2.0 interface support 4K4096x2160 @ 60HZ 2 DP 1.4 interface support 8K7680x4320 @ 60HZ 1 Type-C interface support 8K7680x4320 @ 60Hz 2 PCI-Ex16 slots support Array Card/Graphics Card/Network Card Single Slot PCle 5.0 x16 signal 2 Plug and Change PCle 4.0 x8 signals 2 PCle 3.0 x4 slots support x4 signals for network card and Expansion Cards ATX24Pin (motherboard power supply) /ATX8Pin+ATX4Pin (CPU enhanced power supply) 1*CPU Fan Power Dock 1*ATX-24Pin Motherboard Power Dock 1*Type-E Female Socket -1*USB 3.0 Female Dock 1* M. 2 NVMe PCle 3.0 x4 1*TPM Pin Header -1*BUZZER 1*RGB Pin 3*SFF-8643 1*JCOM Pin 1*USB 2.0 Pin 1*M. 2 E Key CNVi WiFi 1*GPIO Pin -1*F PANEL Switch Pin 2*HDMI 2.0 1*GPIO Key 1*Type-C (USB 3.2 Gen2 10Gbps theoretical rate) -2*DP 1.4 a -1*10G RJ45 network port 2* 2.5G RJ45 network port 2*USB 3.2 red (Gen2 10Gbps theoretical rate) 2*USB 3.2 blue (Gen2 10Gbps theoretical rate) 2*USB 2.0 blue 1*Blue (Linein audio input) /1*Green (Line out audio output) /1*Red( MICin Microphone
CPU Note: vPro function requires i5-1X500 processor can be used F-series does not support the need for nuclear display to support
Note: the default support for 125WTDP processor is not recommended to use the K-series processor
Note: It is recommended to use 13500T and other processors with T processor, power saving and low power consumption for long-term use Support 4 ordinary desktop UDIMM-DDR5 memory Support Pure ECC Server Memory Error Correction Technology 4*U-DIMM DDR5 four-channel memory slots
DDR5 default support 5600MHz (Note: 12-generation processors only support 4800MHz) Maximum capacity of single memory 32GB Quad Memory Maximum 128GB 2*M. 2 NVMe PCle 4.0 x4 signals/1*M. 2 NVMe PCle 3.0 x4 Total 3 M. 23*SFF-8643 sockets SFF-8643-1 and 2 sockets are native signals SFF-8643-3 is ASM1164 expansion signals -1*MARVELLAOC113CS 10G RJ45 electrical port 1*Intel i226-V 2.5G RJ45 electrical port 1*Inteli226-LM 2.5GRJ 45 electrical port (support vPro) Remote Management Function CPU decides to integrate the core display 2 HDMI 2.0 interface support 4K4096x2160 @ 60HZ 2 DP 1.4 interface support 8K7680x4320 @ 60HZ 1 Type-C interface support 8K7680x4320 @ 60Hz 2 PCI-Ex16 slots support Array Card/Graphics Card/Network Card Single Slot PCle 5.0 x16 signal 2 Plug and Change PCle 4.0 x8 signals 2 PCle 3.0 x4 slots support x4 signals for network card and Expansion Cards ATX24Pin (motherboard power supply) /ATX8Pin+ATX4Pin (CPU enhanced power supply) 1*CPU Fan Power Dock 1*ATX-24Pin Motherboard Power Dock 1*Type-E Female Socket -1*USB 3.0 Female Dock 1* M. 2 NVMe PCle 3.0 x4 1*TPM Pin Header -1*BUZZER 1*RGB Pin 3*SFF-8643 1*JCOM Pin 1*USB 2.0 Pin 1*M. 2 E Key CNVi WiFi 1*GPIO Pin -1*F PANEL Switch Pin 2*HDMI 2.0 1*GPIO Key 1*Type-C (USB 3.2 Gen2 10Gbps theoretical rate) -2*DP 1.4 a -1*10G RJ45 network port 2* 2.5G RJ45 network port 2*USB 3.2 red (Gen2 10Gbps theoretical rate) 2*USB 3.2 blue (Gen2 10Gbps theoretical rate) 2*USB 2.0 blue 1*Blue (Linein audio input) /1*Green (Line out audio output) /1*Red( MICin Microphone
