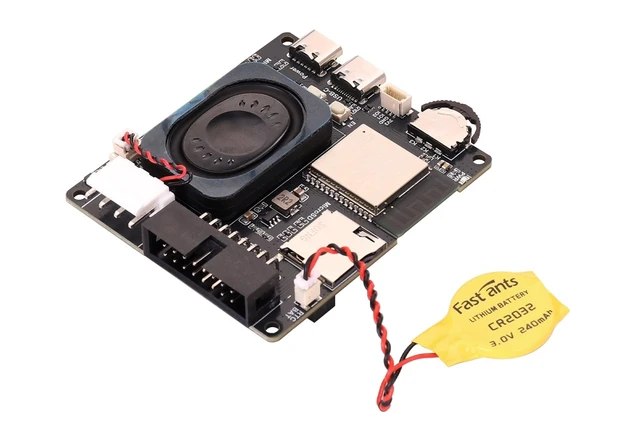

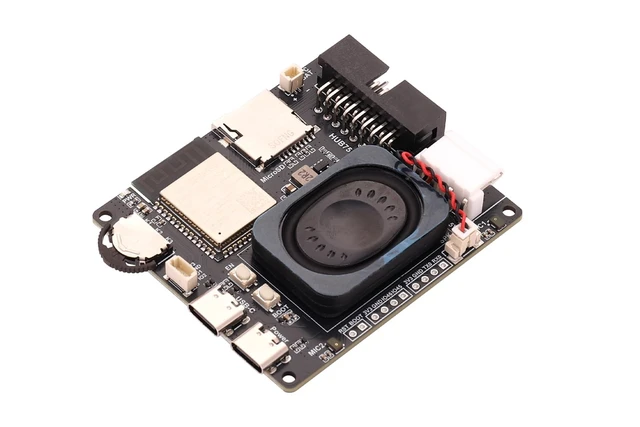

RGB Matrix HUB75 S3 LED Controller Board with Audio and SD Slot
- HUB75 RGB LED Matrix Controller: RGB Matrix HUB75 S3 is a programmable LED matrix controller board with onboard HUB75 interfaces, designed for RGB LED matrix display control, text, image, animation and clock projects.
- Dual HUB75 and Type-C Power Design: This HUB75 LED controller board provides two HUB75 connection options and dual Type-C ports, supporting flexible wiring, board power input, debugging and matrix power connection.
- MicroSD Storage for Offline Content: The RGB LED matrix controller includes a microSD slot for storing images, audio files and project resources, suitable for offline display playback, local media content and data logging projects.
- Audio Interface and Voice Project Support: Onboard ES7210 audio ADC, ES8311 audio codec, dual microphones and speaker interface support sound capture, audio output and voice interaction development for creative matrix display projects.
- Expansion Interfaces for Development: I2C expansion, RTC timekeeping interface, th
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
OverviewThe RGB Matrix HUB75 S3 is a multifunctional RGB LED matrix controller board designed for HUB75 LED matrix display projects, embedded development, creative display control and interactive electronics applications. It can directly connect to HUB75 RGB LED matrices and control text, images, animations, clocks, status information and custom visual content. This HUB75 controller board provides two

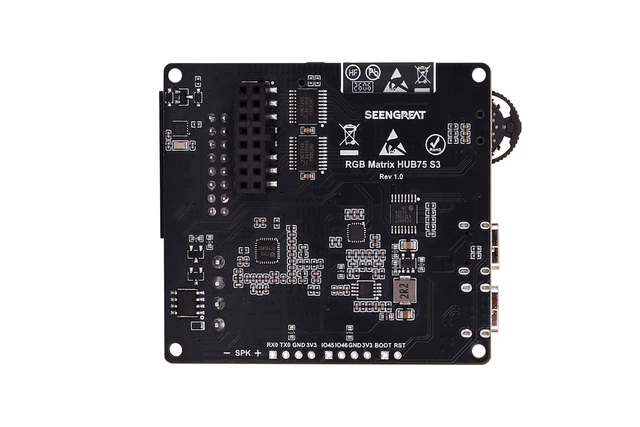

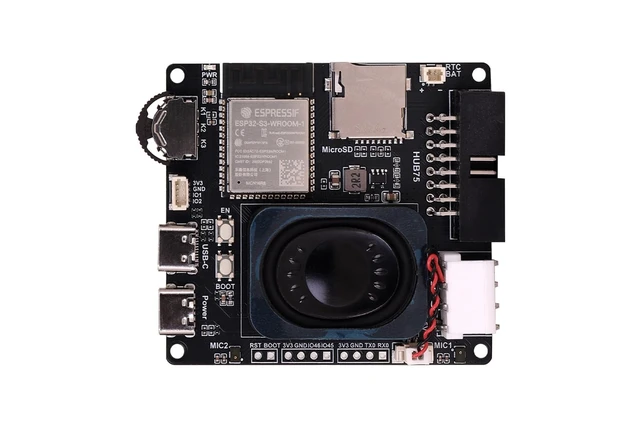

HUB75 interface options: one for ribbon cable connection and one for direct plug-in connection. Dual Type-C ports are provided for board power, program download/debuggingand dedicated matrix power input, while the VH-4P terminal supports 5V power connection for RGB LED matrix panels. For local content storage, the onboard microSD slot can store images, audio files and project resources, enabling offline display playback and local data logging. The onboard ES7210 audio ADC and ES8311 audio codec, together with dual silicon microphones and speaker interface, support audio input, audio output and voice interaction development. The board also includes an RTC timekeeping interface, I2C expansion interface, 3-way thumb wheel switch, EN/BOOT controls and reserved debug pins such as TXD, RXD, IO45, IO46, RST and BOOT. These interfaces help usersperform firmware download, serial debugging, function expansion and system integration. This product is a development controller board for HUB75 RGB LED matrix projects. RGB matrix panel, speaker, microSD card, power adapter and external accessories are not included.
Name: RGB
Matrix HUB75 S3Main Function: HUB75 RGB LED matrix controlDisplay
Interface: Dual
HUB75 interfacesStorage: microSD
slotAudio: ES7210 ADC, ES8311 codec, dual microphones, speaker
interfaceExpansion: I2C interface, RTC timekeeping interface, debug pinsPower
Interfaces: Type-C and
VH-4P terminalApplications: LED matrix display control, animation playback, clock projects, audio interaction, embedded developmentPackage Contents1. RGB Matrix HUB75 S3 V 1.0
12. Ribbon cable
13. Power cable
14. Type-C data cable 15. cavity speaker 1
HUB75 interface options: one for ribbon cable connection and one for direct plug-in connection. Dual Type-C ports are provided for board power, program download/debuggingand dedicated matrix power input, while the VH-4P terminal supports 5V power connection for RGB LED matrix panels. For local content storage, the onboard microSD slot can store images, audio files and project resources, enabling offline display playback and local data logging. The onboard ES7210 audio ADC and ES8311 audio codec, together with dual silicon microphones and speaker interface, support audio input, audio output and voice interaction development. The board also includes an RTC timekeeping interface, I2C expansion interface, 3-way thumb wheel switch, EN/BOOT controls and reserved debug pins such as TXD, RXD, IO45, IO46, RST and BOOT. These interfaces help usersperform firmware download, serial debugging, function expansion and system integration. This product is a development controller board for HUB75 RGB LED matrix projects. RGB matrix panel, speaker, microSD card, power adapter and external accessories are not included.
Specifications
: ProductName: RGB
Matrix HUB75 S3Main Function: HUB75 RGB LED matrix controlDisplay
Interface: Dual
HUB75 interfacesStorage: microSD
slotAudio: ES7210 ADC, ES8311 codec, dual microphones, speaker
interfaceExpansion: I2C interface, RTC timekeeping interface, debug pinsPower
Interfaces: Type-C and
VH-4P terminalApplications: LED matrix display control, animation playback, clock projects, audio interaction, embedded developmentPackage Contents1. RGB Matrix HUB75 S3 V 1.0
12. Ribbon cable
13. Power cable
14. Type-C data cable 15. cavity speaker 1
