EVERSECU 17CH DC12V 20 Amp 1.5U/19 Rack Mount PTC Fuse CCTV Power Supply with Metal Box, AC Plug for Security Cameras, DVRs, IP Cameras, CCTV Cameras

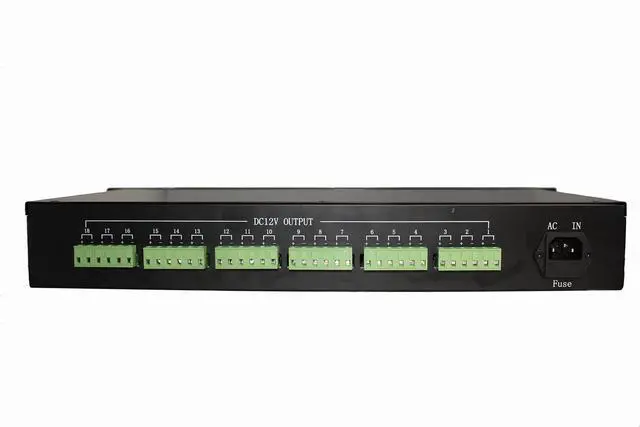

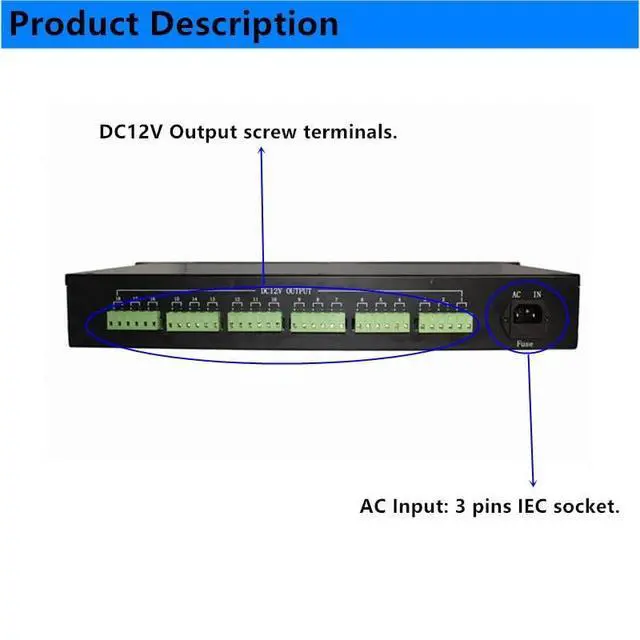

- Input: 100-240VAC; Output: 12VDC; Supply Current: 20Amp; 1-16th ports fused at 2A,17th port fused at 4A; DC12V Regulator CCTV Power Supply Box, 17 Outputs with PTC Fuse
- General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time 100000 hours, when problem occurs, only affect the independent output, other outputs still working.
- Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
- Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

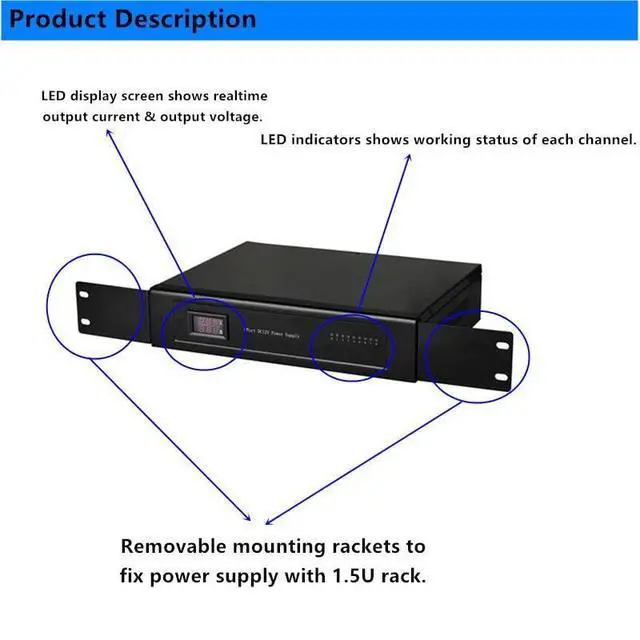

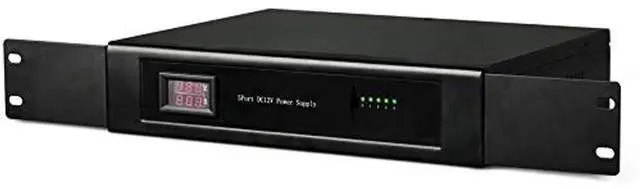

- 1.5U/19" Rack Mount Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Input
Voltage: AC 100~240V, 50-60HzOutput
Voltage: DC11V-15VTotal
Output Current: 20ATotal
Output Channel: 17CHFuse
type: PTC
ResettableFuse Rating: 1-16th ports fused at 2A, 17th port fused at 4ARipple and
Noise: less
than 120mvEfficiency: >=80%Storage
Temperature: -40-85Operating
Temperature: -20-60Product
Net Weight: 2.86 kgProduct
Dimension: 485.4 *230* 65.6 mm( 1.5U /19")Package
Dimension:
440*285*105mmCertificate: UL, CE, FCC
Warranty: 2 Year
Voltage: AC 100~240V, 50-60HzOutput
Voltage: DC11V-15VTotal
Output Current: 20ATotal
Output Channel: 17CHFuse
type: PTC
ResettableFuse Rating: 1-16th ports fused at 2A, 17th port fused at 4ARipple and
Noise: less
than 120mvEfficiency: >=80%Storage
Temperature: -40-85Operating
Temperature: -20-60Product
Net Weight: 2.86 kgProduct
Dimension: 485.4 *230* 65.6 mm( 1.5U /19")Package
Dimension:
440*285*105mmCertificate: UL, CE, FCC
Warranty: 2 Year
