M5Stack AtomS3R Camera Kit M12, ESP32-S3, 3MP OV3660, Wi-Fi, 8MB Flash, 8MB PSRAM, USB OTG, Model C126-M12

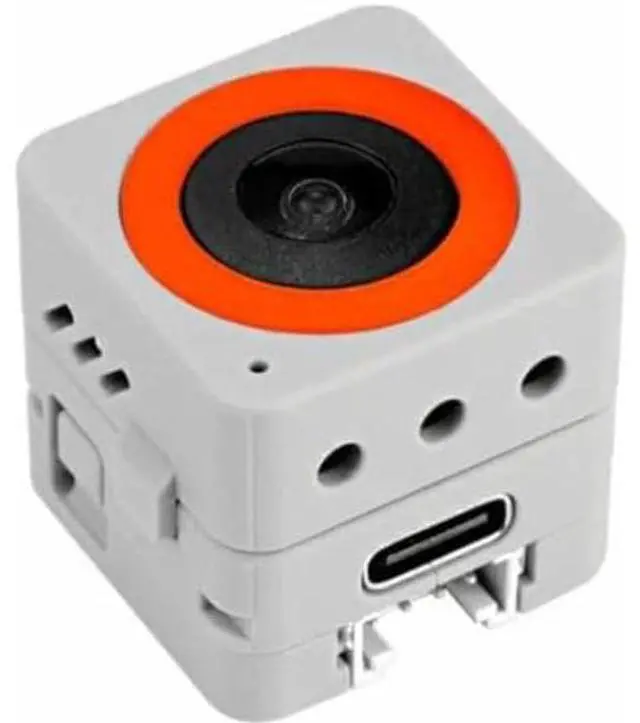

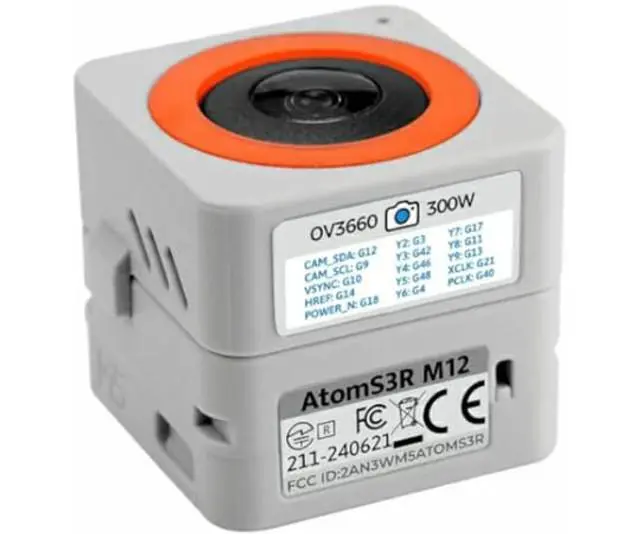

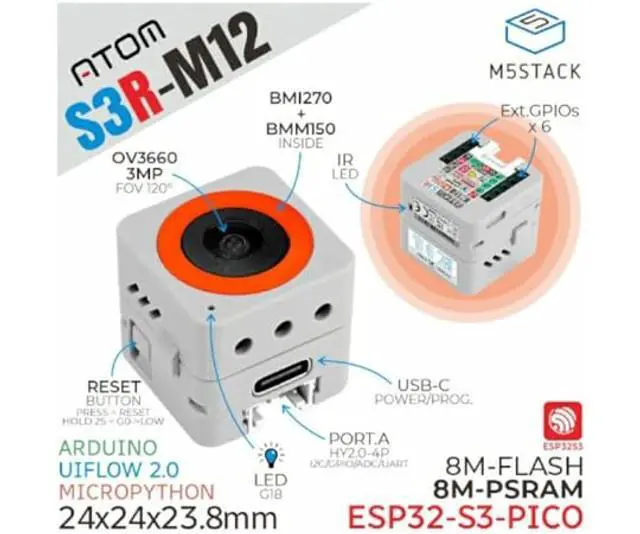

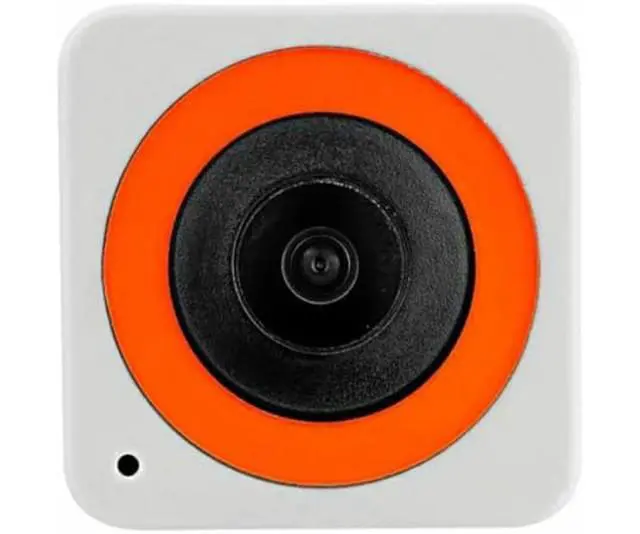

The ATOMS3R Camera Kit M12 Version is a compact IoT programmable controller featuring an integrated 3-megapixel OV3660 wide-angle camera with F 2.4 aperture and 120-degree field of view. Powered by the ESP32-S3-PICO-1-N8R8 dual-core processor running up to 240MHz, this device combines 8MB Flash and 8MB PSRAM for robust performance. The controller includes a comprehensive nine-axis sensor system featuring a BMI270 six-axis attitude sensor and BMM150 three-axis geomagnetic sensor for precise motion tracking. With built-in 2.4 GHz Wi-Fi connectivity and USB OTG support, it offers versatile communication options. The kit comes pre-loaded with UVC firmware, functioning as a driver-free USB camera for immediate plug-and-play use.

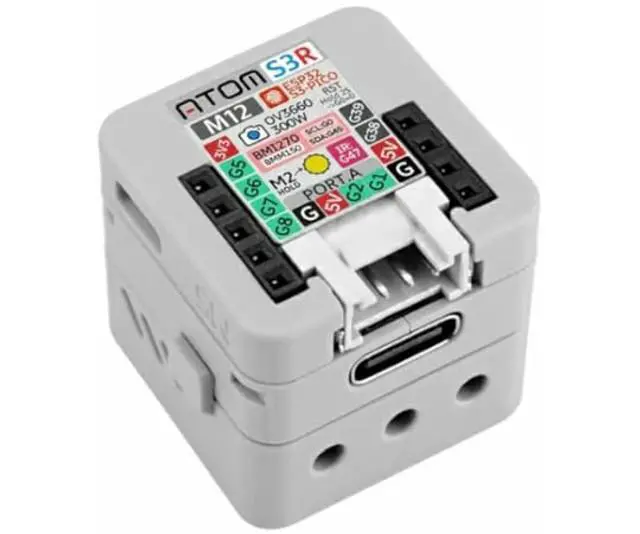

Additional features include infrared emission control with a range of 40.87 feet, expandable GPIO pins at the bottom, and a HY 2.0 -4P expansion port. Measuring just 1.04 x 0.94 x 0.89 inches and weighing only 0.38 ounces, this ultra-compact device is ideal for IoT monitoring, educational projects, and embedded applications. Compatible with Arduino IDE, ESP-IDF, and PlatformIO development platforms, it operates reliably in temperatures from 32 to 104 degrees Fahrenheit.
