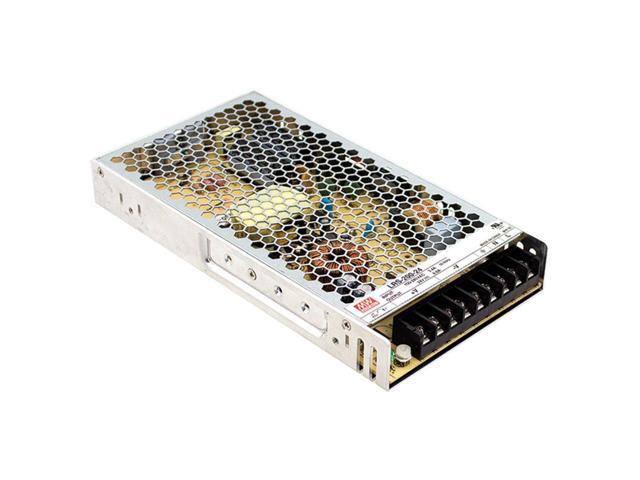

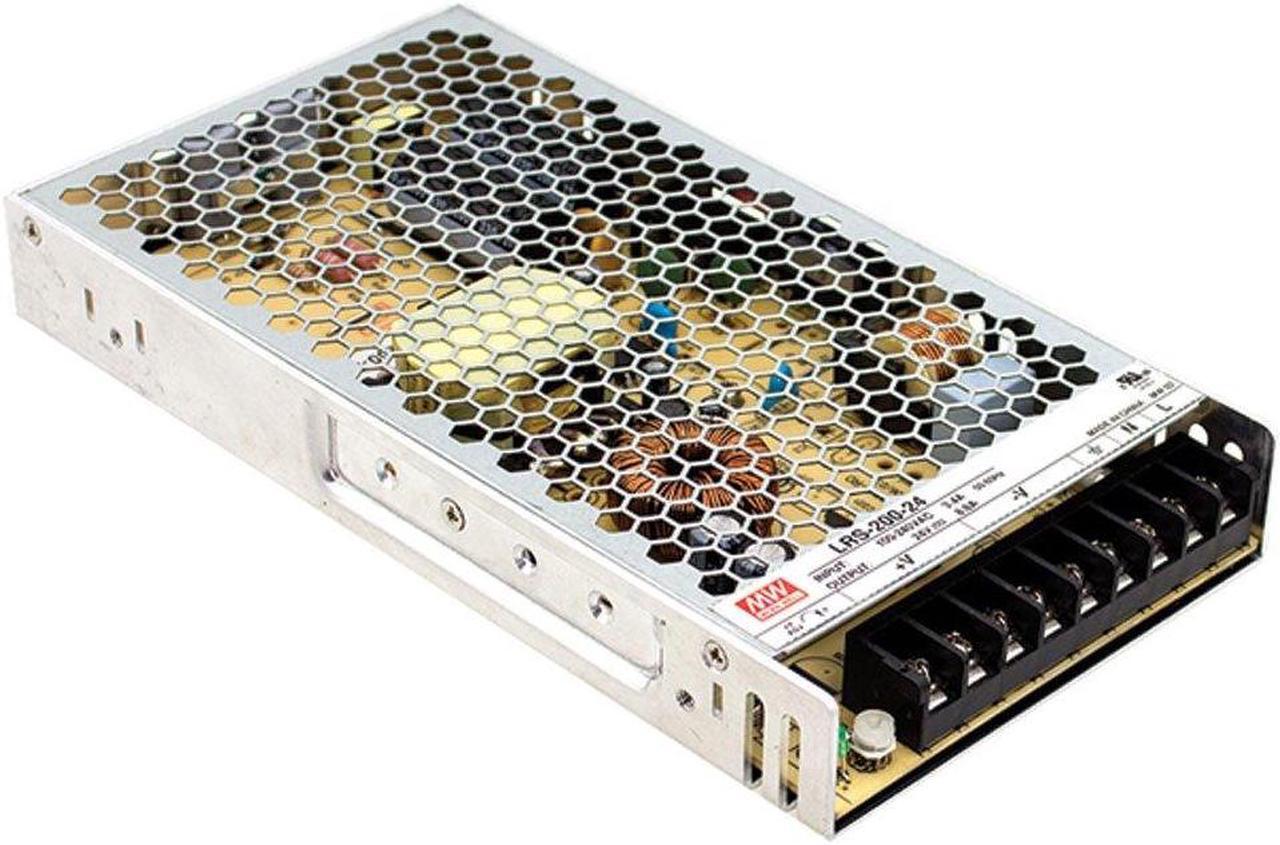

MEAN WELL LRS-200-5 200W 5V 40 Amp Single Output Switchable Power Supply

200W 5V 40A Single Output Switchable Power Supply 5 Volts 40 Amps Features * AC input range selectable by a switch * Withstand 300 VAC surge input for 5 seconds * No load power consumption * 1U low profile * High operating temperature, up to 70degC *
Protections: Short circuit / Overload / Over voltage / Over temperature * Cooling by free air convection * Compliance to UL 60950-1 * Withstand 5G vibration test * High efficiency, long life and high reliability * LED indicator for power on * 100% full load burn-in test * 3 year warranty Applications * Industrial automation machinery * Industrial control system * Mechanical and electrical equipment * Electronic instruments, equipment or apparatus Related Products * LRS-200- 3.3 ( 3.3V 40A, 132W)
Jameco P/N: 2219698 * LRS-200- 4.2 ( 4.2V 40A, 168W)
Jameco P/N: 2219701 * LRS-200-12 (12V 17A, 204W)
Jameco P/N: 2219727 * LRS-200-15 (15V 14A, 210W)
Jameco P/N: 2219735 * LRS-200-24 (24V 8.8A, 211W)
Jameco P/N: 2219743 * LRS-200-36 (36V 5.9A, 212W)
Jameco P/N: 2219751 * LRS-200-48 (48V 4.4A, 211W)
Jameco P/N: 2219760 * LRS-150 Series (150 Watt, Enclosed Switchable Single Output Power Supply) * LRS-150F Series (150 Watt, Full Range Input Enclosed Switching Power Supply) * LRS-350 Series (350 Watt, Enclosed Switchable Single Output Power Supply) Detailed

Specifications

: * Primary
Output Voltage (VDC): 5 *
Output Current (A): 40 * Maximum
Output Power (W): 200 *
Family: LRS-200 *
Input Voltage (VAC): 90 to 132, 180 to 264 *
Input Frequency: 47 to 63 *
Maximum Input Current (A): 4 *
Output Connector Type: Screw Terminal Block * Number of
Outputs: 1 *
Product Type: AC to DC Power Supply *
Efficiency (%): 87 (more. ).
