Global Cache GC-IRL IR Learner - Connects Smart Sensors and IR Remote Controllers to any Computer
- CAPTURES AND LEARNS IR CODES - The Global Cache GC-IRL allows your home automation installer to learn full IR code spectrum via a computer. It digitizes infrared signals/commands from remote controls.

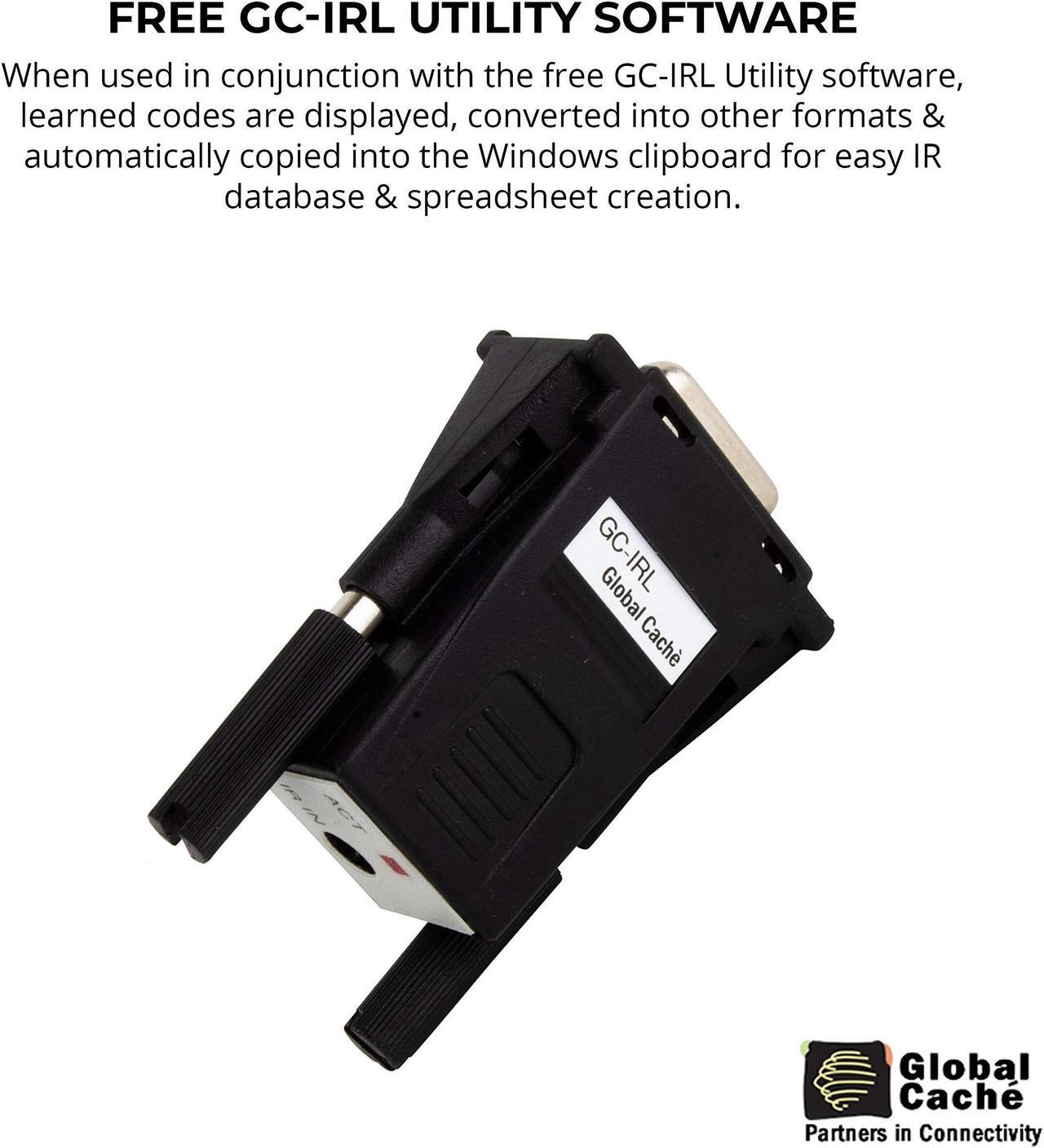

- OFFERS EASY SIGNAL CODING - The included IR Learner Utility CD learns IR commands and converts them into GC 100 or Hex CCF format. It auto copies the codes to a clipboard for quick database creation.
- CONTROL IR DEVICES FROM A PC - The stored IR codes from GC-IRL can be used to manage infrared units over a network. It recreates infrared signals for playback by providing the necessary information.

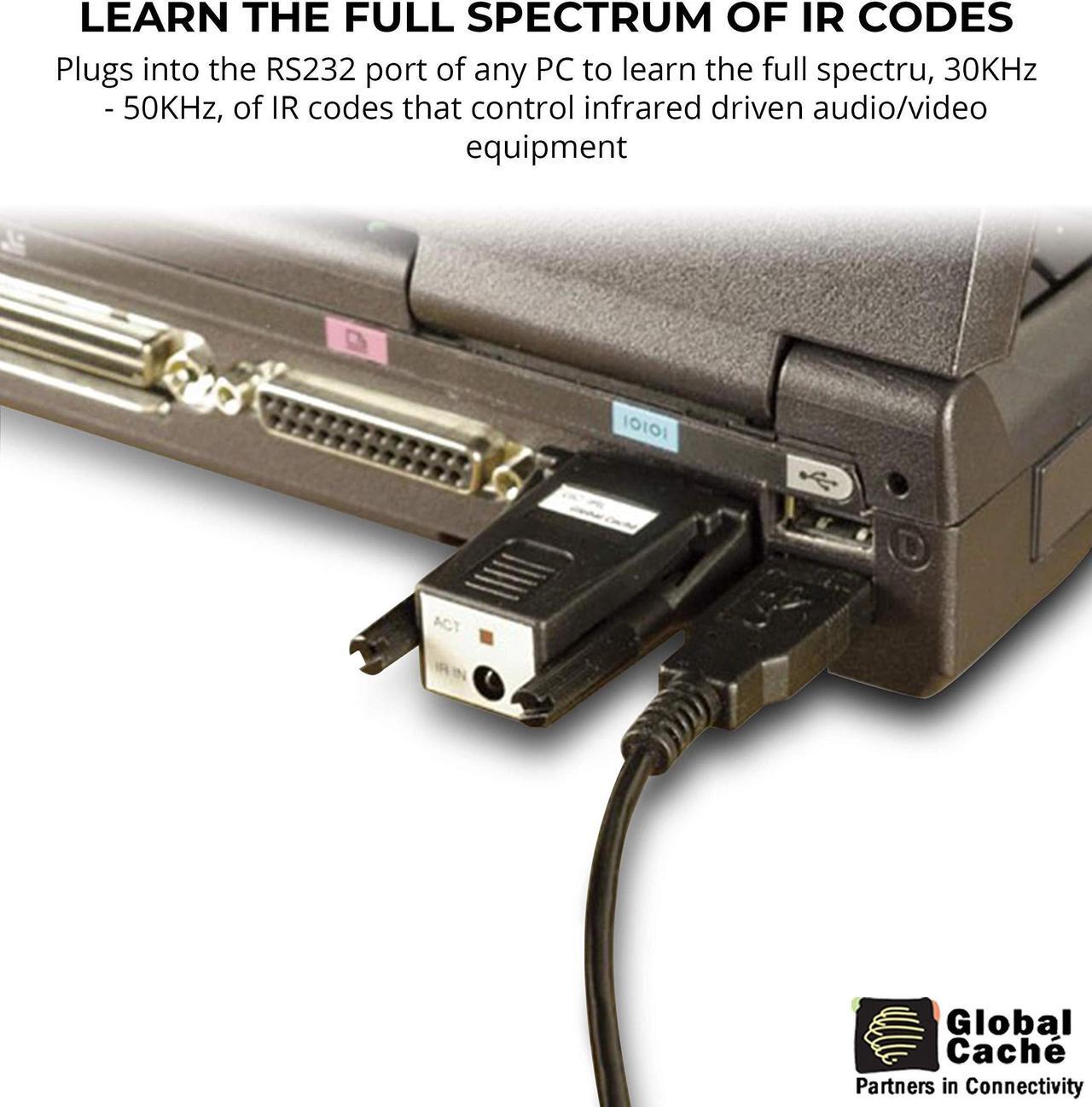

- PROVIDES EASY CONNECTIVITY - Simply plug the IR Learner into the standard RS232 serial port of any computer.

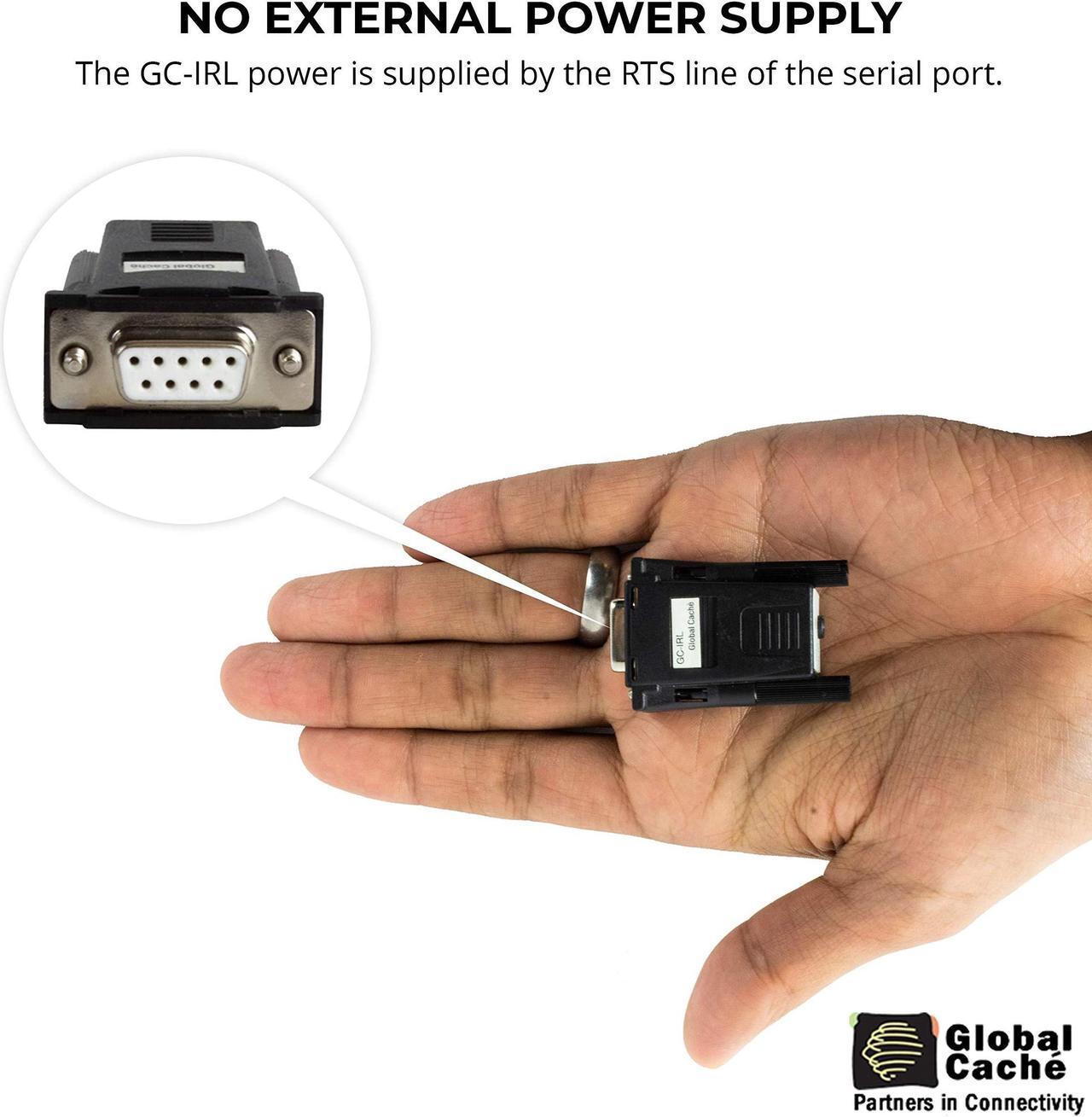

- DOES NOT REQUIRE AN EXTERNAL POWER SUPPLY - The IR Learner's power is supplied by RTS line of the RS232 serial port.
+
+
Overview
Specs
Reviews

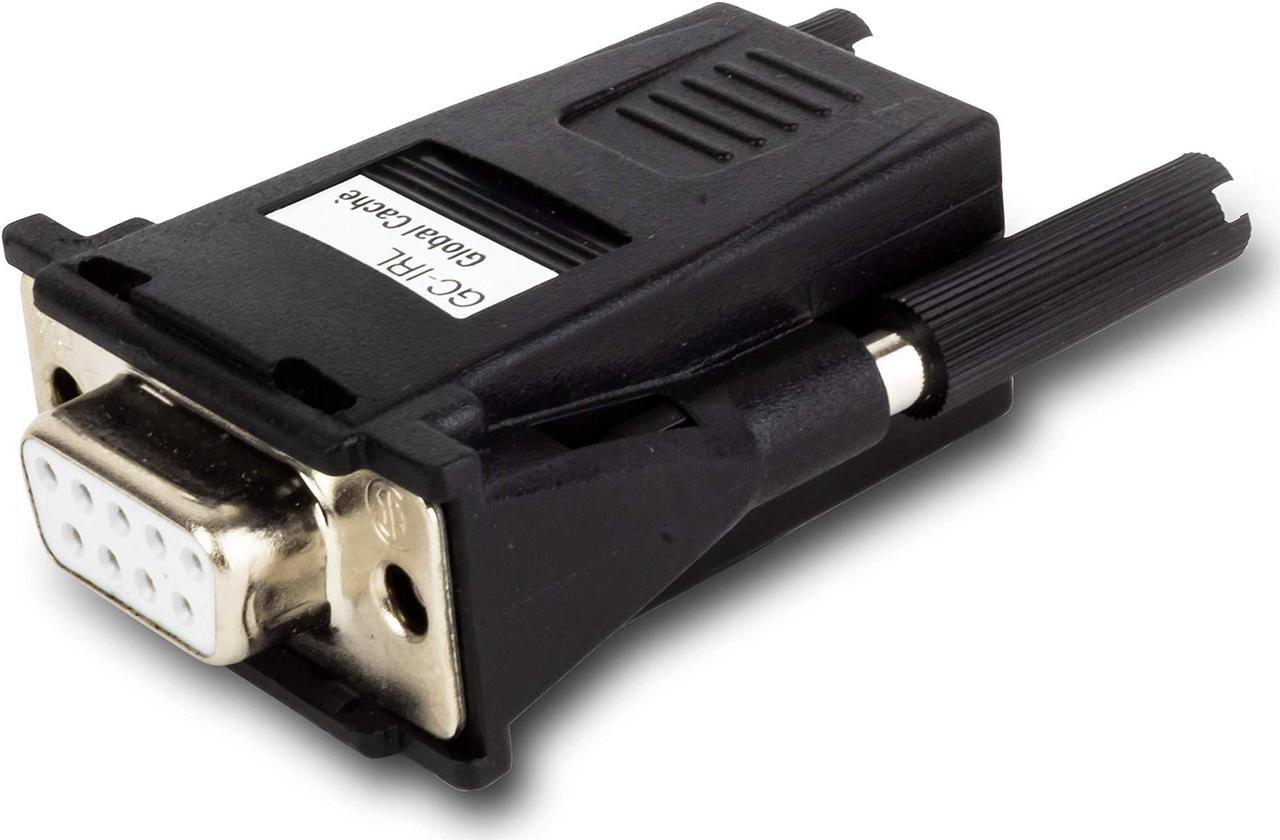

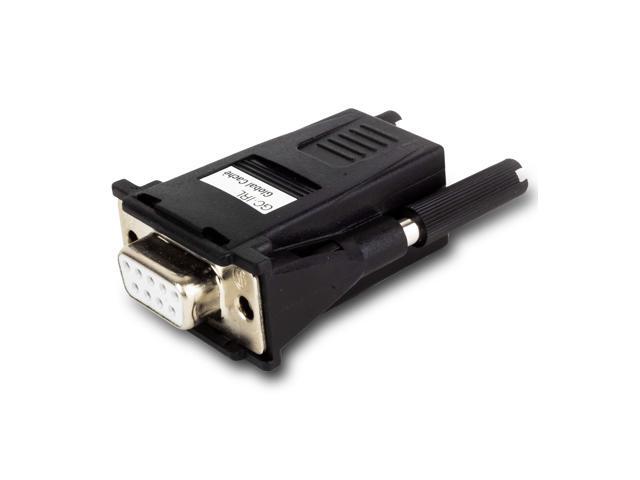

Global Cache GC-IRL IR Learner
Easily plug in the Global Cache GC-IRL IR Learner to a standard RS232 serial port of any computer and use it to learn IR codes to control infrared-driven AV equipment. The GC-IRL transmits infrared signals as Comma-delimited ASCII text string with a terminator. The ASCII structure simplifies IR recording and playback.
Right out of the box, the GC-IRL is set to set to 9600 baud, 8 bits, one stop, no parity, and no flow control. It utilizes a female DB9 connector to link directly to Global Cache GC-100 network adapters or RS232 serial ports.
The GC-IRL comes with an IR Learner Utility CD that captures and converts the learned codes into other GC-IRL formats. You can use the IR Learner with the complete iTach line. With the GC-IRL's stored codes, you're able to control IR devices from any PC over the network.
TECHNICAL SPECS: Baud
Rate: 9600
IR Frequency Range: 30~500kHz
Other: No parity, one stop bit
Flow Control: None
Connector: Female DB9 DTE format; 3.5 mm stereo jack for IR Sensor Input Power Source (Not
Included): 8~25V at 5mA, supplied by RTS Pin 7
Encoding: Comma delimited ASCII text string with termination character
Compatibility: Global Cache iTach models WF2IR, IP2IR, IP2IR-P, WF2SL, IP2SL, IP2SL-P, WF2CC, IP2CC, IP2CC-P
What's in the Box? GC-IRL IR Learner Unit IR Learner Utility CD Instruction Manual
Easily plug in the Global Cache GC-IRL IR Learner to a standard RS232 serial port of any computer and use it to learn IR codes to control infrared-driven AV equipment. The GC-IRL transmits infrared signals as Comma-delimited ASCII text string with a terminator. The ASCII structure simplifies IR recording and playback.
Right out of the box, the GC-IRL is set to set to 9600 baud, 8 bits, one stop, no parity, and no flow control. It utilizes a female DB9 connector to link directly to Global Cache GC-100 network adapters or RS232 serial ports.
The GC-IRL comes with an IR Learner Utility CD that captures and converts the learned codes into other GC-IRL formats. You can use the IR Learner with the complete iTach line. With the GC-IRL's stored codes, you're able to control IR devices from any PC over the network.
TECHNICAL SPECS: Baud
Rate: 9600
IR Frequency Range: 30~500kHz
Other: No parity, one stop bit
Flow Control: None
Connector: Female DB9 DTE format; 3.5 mm stereo jack for IR Sensor Input Power Source (Not
Included): 8~25V at 5mA, supplied by RTS Pin 7
Encoding: Comma delimited ASCII text string with termination character
Compatibility: Global Cache iTach models WF2IR, IP2IR, IP2IR-P, WF2SL, IP2SL, IP2SL-P, WF2CC, IP2CC, IP2CC-P
What's in the Box? GC-IRL IR Learner Unit IR Learner Utility CD Instruction Manual
