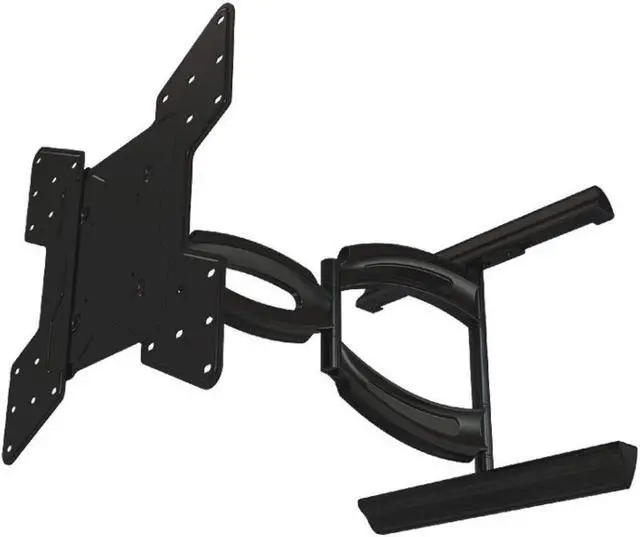

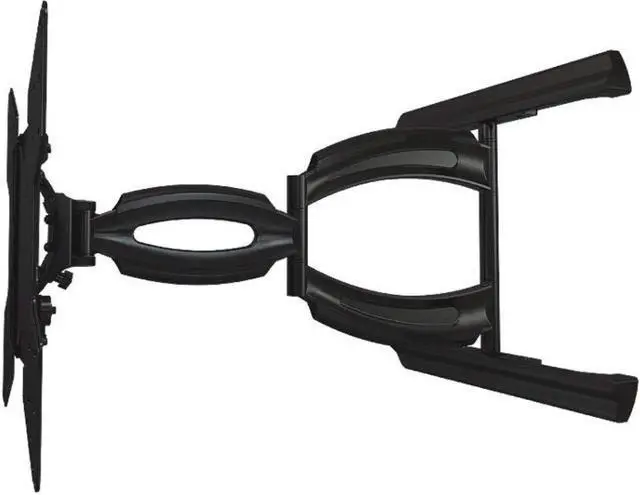

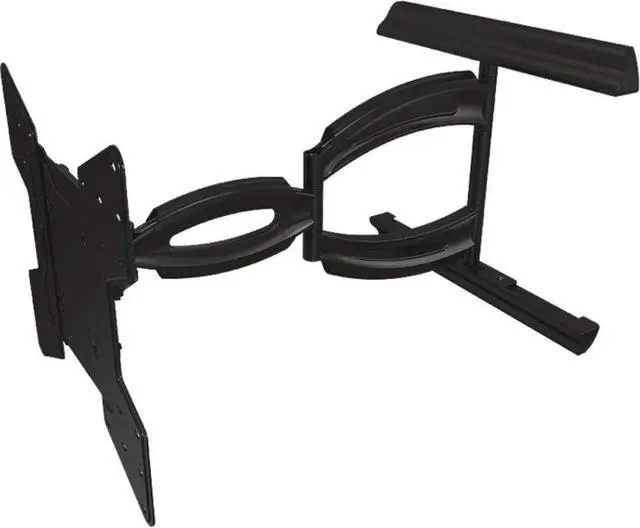

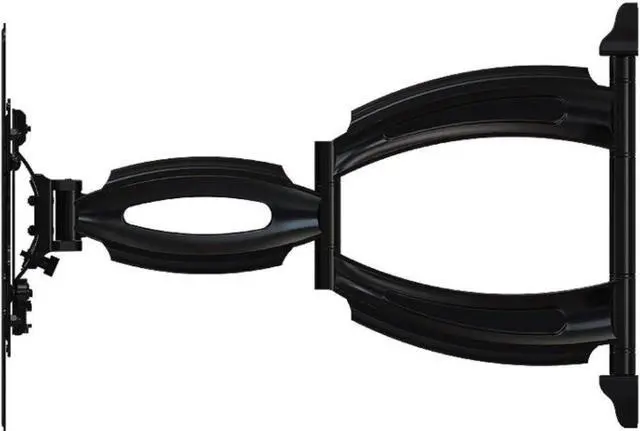

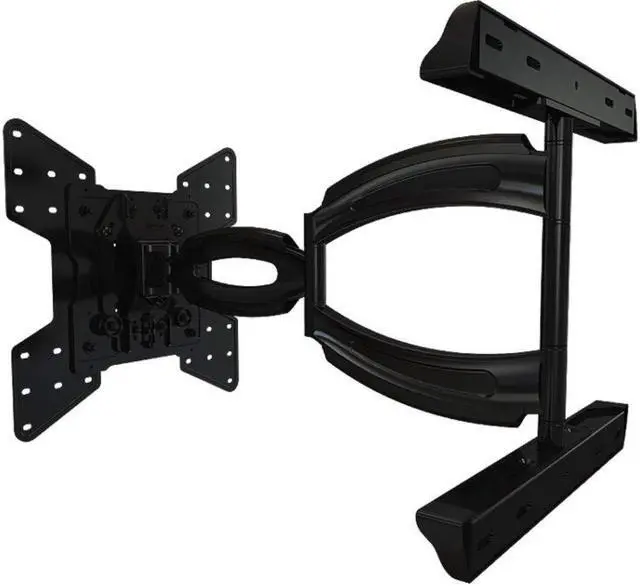

Crimson A55V Articulating Mount for 32" to 55"+ Flat Panel Screens, Black, 150lb (68kg) Weight Capacity, Depth from Wall 3.5" (89mm), Max Extension 27" (685.8mm), Tilt +15deg/-5deg, Pivot 90deg

Crimson A55V Articulating Mount for 32" to 55"+ Flat Panel Screens, Black, 150lb (68kg) weight capacity, Depth from wall 3.5" (89mm), Max extension 27" ( 685.8 mm), Tilt +15deg/-5deg, Pivot 90deg
Multiple joint arm holds screen 3.5" from wall when retracted and 27" when fully extended. Smooth tilt adjustments of +15deg (forward) and -5deg (back) with a locking knob and 3deg side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Integrated cable management for clean look.
Key Features
VESA compatible Pre-tensioned tilt mechanism for smooth adjustment Post installation screen leveling without use of tools Integrated cable management for clean look Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included Optional ADLP accessory rotates screen with ease from landscape to portrait or portrait to landscape orientation (Sold separately)

Specifications

TV size range: 32" - 55"+
Weight capacity: 150lb (68kg)
Max mounting pattern: 400x400mm
VESA mounting patterns: 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
Depth from wall: 3.5" (89mm)
Max extension: 27" ( 685.8 mm)
Tilt: +15deg/-5deg
Pivot: 90deg
Roll (side to side): 3deg
Mounting surface: Wood stud, concrete or cinder block
Stud spacing: Dual stud 16" on center
Construction: Aluminum/high-grade cold rolled steel
Product finish: Scratch resistant epoxy powder coat
Weight: 22.7 lb ( 10.3 kg)
