    DIYmalls Nextion Intelligent 7 inch HMI Display 5V Capacitive Touch Screen 800x480 TFT LCD w/Enclosure Case for Arduino (NX8048P070-011C-Y)

    Be the first to review this product...
    • -Compared with Basic nextion display and nextion enhanced screen, Nextion Intelligent display has more powerful hardware in terms of MCU, Flash storage and SRAM. Audio, video and animation play functions enrich your project HMI interaction.
    • -Nextion intelligent 7 capacitive display is a 5V device, but many development boards are 3.3V. It won't make the display power up.

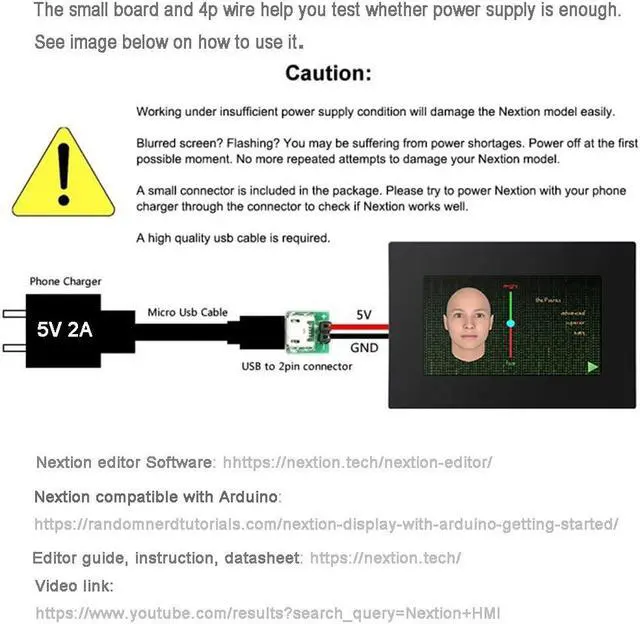

    • -To ensure Nextion capacitive 7 intelligent display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
    • -If you supply power for NX8048P070-011C-Y via PC, the Nextion intelligent 7 inch display may works not as expected even though your PC is 5V.
    • -Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Feature:
    - Size: 7.0 inch

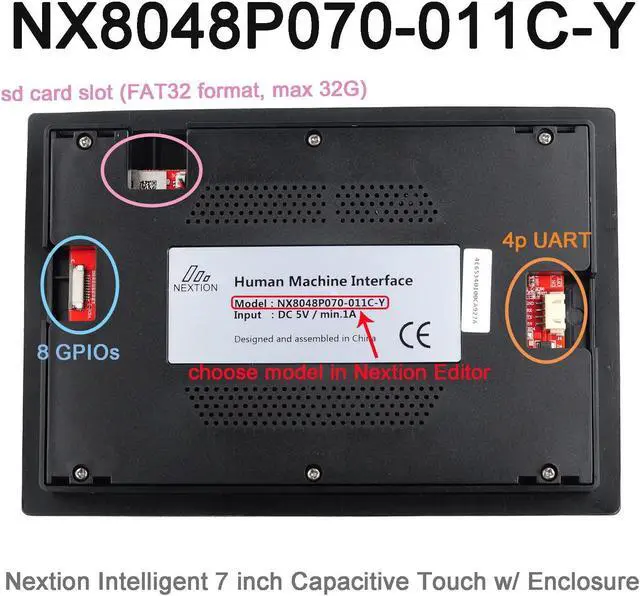

    - Model: Nextion NX8048P070-011C-Y (HMI Capacitive Touch Display)
    - Onboard MCU 200MHz and up to 128MB for HMI project
    - Built-in RTC support (Battery type: CR1220, NOT included)
    - Built-in 8 digital GPI
    Os (2 PWM capable)
    - 4 pins (+5V, TX, RX, GND) TTL serial interface
    - 300 nit Brightness with 1% interval adjustment
    - Audio interface
    - Resolution: 800*480
    - Touch Panel: CTP
    - Touches: over 1 million
    - Backlight: LED
    - Backlight lifetime (Average): over 30, 000 hours
    - Brightness: 300nit
    - Color: 65K 65536 colors
    - Flash: 128MB
    - RAM: 512KB
    - MCU: 220MHz
    - EEPROM: 1024 Byte

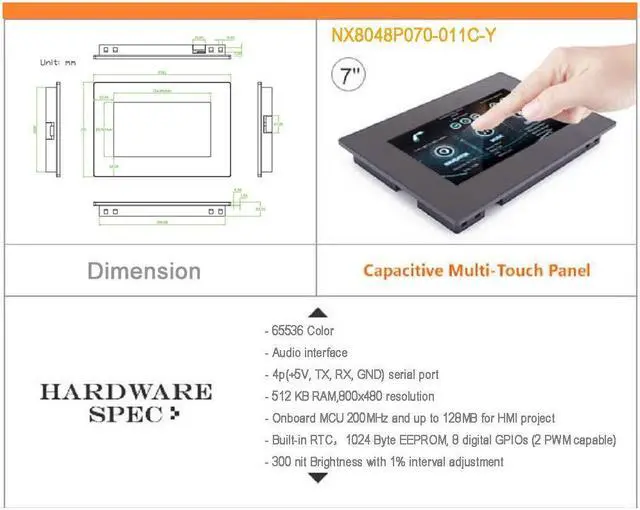

    - Layout size: 218.1 mm (L) x150mm (W) x 22.5 mm (H)
    - Active Area (A. A. ): 164.90 mm (L) x 100.00 mm (W)
    - Visual Area (V. A. ): 154.08 mm (L) x 85.92 mm (W)
    - Operating Voltage: 4.75 - 6.5V, Typical 5V
    - Operating Current: (VCC=+5V, Brightness is 100%)Typical530mA, 750mA in max, (SLEEP Mode) 170mA
    - Power supply recommend: DC 5V 2A
    - SD card socket: FAT32 format, support maximum 32G

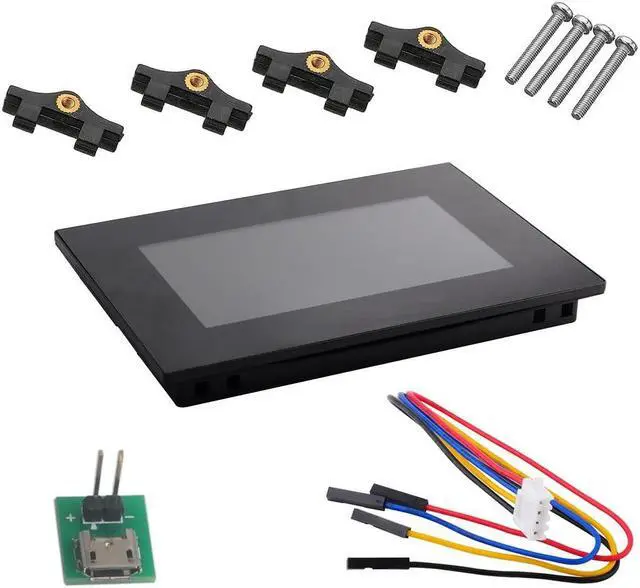

    Package Includes:
    1 x Nextion NX8048P070-011C-Y
    1 x micro USB to 2pin male board
    1 x 4pin 2.54 mm to female cable
