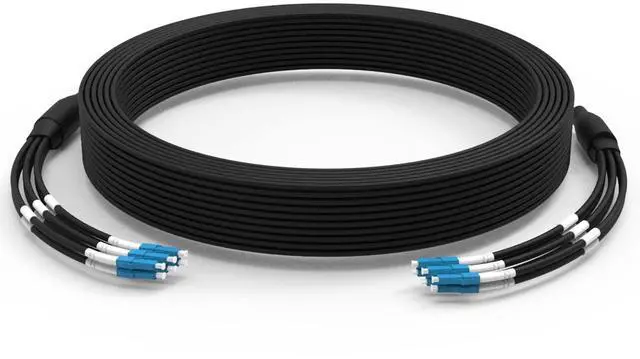

E-link 100Meters 328ft LC to LC Outdoor Armored 6 Core Fiber Patch Cable, 9/125 SM Fiber Optic Cable Single-Mode Fiber Optic Cable Patch Cord Jumper LC-LC Armored Patch Cables LSZH, 5.0mm
- LC to LC Jumper Optic Patch Cord 100 Meter(328ft) Outdoor Armored LC to LC 6 Core Fiber Patch Cable, Single Mode 9/125 Corning fiber optic cable, LSZH, zip-cord reinforced, 5.0mm Diameter, 1.25mm Ceramic Ferrule, Fiber Patch Cable, Ultra Optical Fiber combines the benefit of industry-leading attenuation and improved performance, all in one fiber, along with being fully backward compatible with installed base of legacy single-mode fibers.
- Outdoor LC/UPC to LC/UPC Single mode 6 Core Fiber Optic Patch CableThis OS2 fiber patch cable body is made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction <0.2). Low Friction Cables are the ideal solution for wiring premises. The stiffness allows the cable to be installed by pushing as well as by the more conventional pulling method. These cables can even be used in congested conduits.
- High Reliable LC-LC Fiber: High Rated OS2 9/125m Fiber and Cladding, which is Insensitive to bending, Easy peeling, Easy welding, ensure
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: 328ft 100m LC to LC Outdoor Armored 6 Core 9/125 SM Fiber Optic Cable Jumper Optical Patch Cord Singlemode 328Meters 328ft
LC-LCSpecification:
Connector: LC/UPC to
LC/UPC Fiber Core: OS2 9/125m
Wavelength: 1310/1550nm
Fiber Grade: G. 657. A2(Compatible G. 652.
D) Fiber Count: 6 Core
Cable Diameter: 5.0 mm
Ferrule: Ceramic
Ferrule Length: 100M (328ft)
Insertion Times: >1000 times Optical
Cable Outer Diameter: 7.0 mm
Insertion Loss: 0.3 dm
Return Loss: 50dm
Cable Jacket: LSZH with
Low-Friction Characteristic Tensile Load: 120/225N(Long/Short Term)
Operating Temperature: -40-85Key

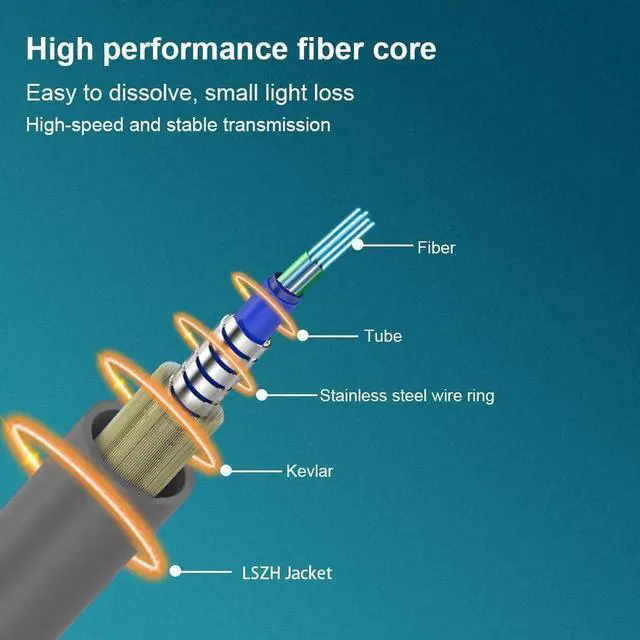

Features: 100Meters, Outdoor Armored Cable, 9/125, LC-LC, 6 Core, Single mode Compatible with all standard fibre optic equipment and connectors Ceramic connectors ensure low signal loss, and high reliability All our products are 100% new fiber optic cable of carrier-class quality, and 100% test before deliveryLow Insertion Loss & Low AttenuationAssembled with 6 Core, small form factor, 1.25 mm ceramic ferrule, LC connectors designed for compact, high cable density environments. Connectors include pre-installed 6 Core LC clips Insertion Loss 0.3 dB, Return Loss 50dB. Core/Cladding ParameterCorning 9 micron diameter fiber core/125 micron diameter cladding. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
LC-LCSpecification:
Connector: LC/UPC to
LC/UPC Fiber Core: OS2 9/125m
Wavelength: 1310/1550nm
Fiber Grade: G. 657. A2(Compatible G. 652.
D) Fiber Count: 6 Core
Cable Diameter: 5.0 mm
Ferrule: Ceramic
Ferrule Length: 100M (328ft)
Insertion Times: >1000 times Optical
Cable Outer Diameter: 7.0 mm
Insertion Loss: 0.3 dm
Return Loss: 50dm
Cable Jacket: LSZH with
Low-Friction Characteristic Tensile Load: 120/225N(Long/Short Term)
Operating Temperature: -40-85Key
Features: 100Meters, Outdoor Armored Cable, 9/125, LC-LC, 6 Core, Single mode Compatible with all standard fibre optic equipment and connectors Ceramic connectors ensure low signal loss, and high reliability All our products are 100% new fiber optic cable of carrier-class quality, and 100% test before deliveryLow Insertion Loss & Low AttenuationAssembled with 6 Core, small form factor, 1.25 mm ceramic ferrule, LC connectors designed for compact, high cable density environments. Connectors include pre-installed 6 Core LC clips Insertion Loss 0.3 dB, Return Loss 50dB. Core/Cladding ParameterCorning 9 micron diameter fiber core/125 micron diameter cladding. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
