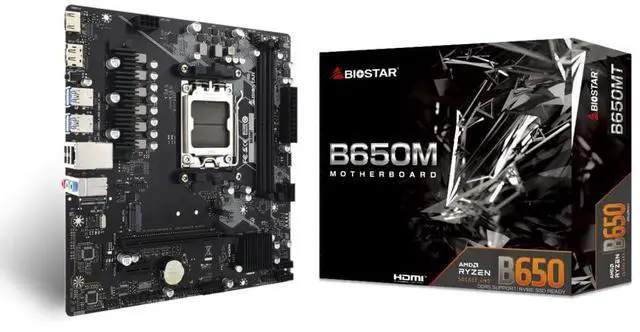

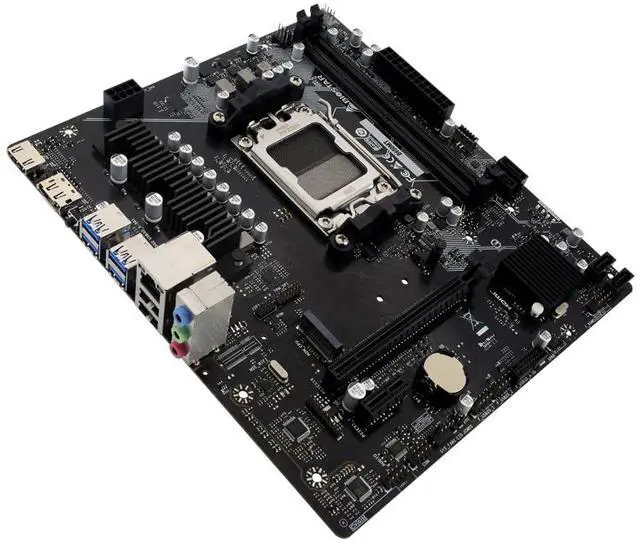

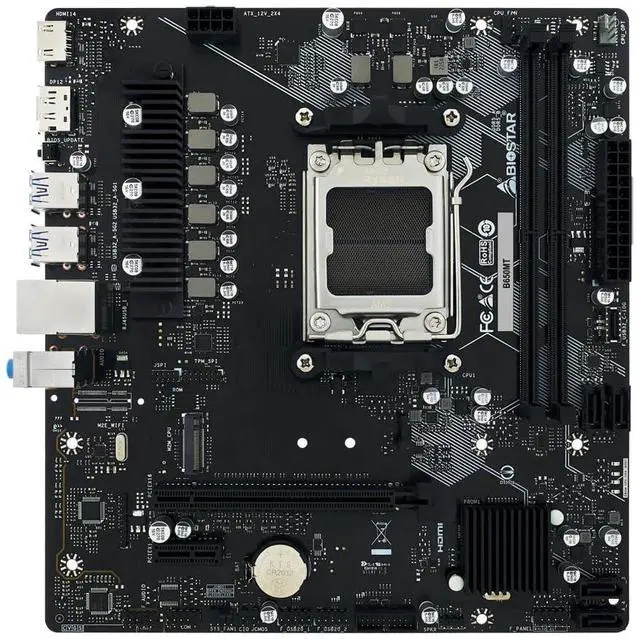

AM5 Biostar B650MT Motherboard (M-ATX/DDR5/M.2/USB-C)
- Compatible with AMD Ryzen 7000 series (AM5)
- 2 DDR5 slots with maximum capacity up to 96GB
- Compatible with HDMI 4K
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Compatible with AMD Ryzen 7000 series (AM5). - 2 DDR5 slots up to 96GB maximum capacity. - HDMI 4K compatible. - Compatible with PCIe 4.0 M.
2 (64Gb/s)
Compatibility: Socket AM5 compatible with AMD 7000 series processors.
Memory: Compatible with dual channel DDR5 4800/ 5200/ 5400 (OC) / 5600 (OC) / 6000+ (OC); Each slot supports 8/16/24/32/48GB DDR5 modules.
Integrated video: Support DX12, Support HDCP.
Network: Realtek RTL8111H 10/100/1000 Mb/s; Half/full duplex capacity.

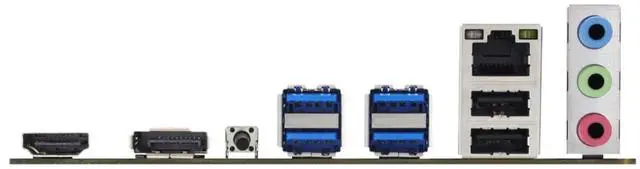

Rear: 1x BIOS Update Button 1x HDMI Port (HDMI 1.4 ) 1x DisplayPort (DP 1.2 ) 4x USB 3.2 (Gen1) Type-A Port. 2x USB 2.0 Type-A Ports. 1x Giga LAN Port 3x Audio Jack STORAGE Full Support 1 x M. 2 Socket and 4 x SATA Ports (6Gb/s) AMD Ryzen 7000 Series Processors 1 x M. 2 (Key M)
Socket (M2M_CPU): Supports M. 2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD AMD B650 Chipset 4 x SATA III
Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10 Expansion Slots AMD Ryzen 7000 Series Processors 1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode) AMD B6 mode) Chipset 1 x PCIe 3.0 x1 Internal I/O Slot 4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Header (Each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (Each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen1 2) Type-C Head 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x WITH Port Header 1 x TPM Header Operating Systems Supports Windows 10 ( x 64bit) / 11 (64bit) *Biostar reserves the right to add or remove compatibility with any operating system, with or without notice.
Dimensions: Micro ATX (221mm x 235mm) (Width x
Length) Accessories: 2x - 1x SATA Cable - 1x I/O Protector - 1x DVD Driver - 1x Quick Guide - Other Gross
Weight (g): 880
Net Weight (g): 635
Package Dimensions: 265mm (W) x 1.9699 (H) x 240mm (D)
2 (64Gb/s)
Specifications
: CPUCompatibility: Socket AM5 compatible with AMD 7000 series processors.
Memory: Compatible with dual channel DDR5 4800/ 5200/ 5400 (OC) / 5600 (OC) / 6000+ (OC); Each slot supports 8/16/24/32/48GB DDR5 modules.
Integrated video: Support DX12, Support HDCP.
Network: Realtek RTL8111H 10/100/1000 Mb/s; Half/full duplex capacity.
Rear: 1x BIOS Update Button 1x HDMI Port (HDMI 1.4 ) 1x DisplayPort (DP 1.2 ) 4x USB 3.2 (Gen1) Type-A Port. 2x USB 2.0 Type-A Ports. 1x Giga LAN Port 3x Audio Jack STORAGE Full Support 1 x M. 2 Socket and 4 x SATA Ports (6Gb/s) AMD Ryzen 7000 Series Processors 1 x M. 2 (Key M)
Socket (M2M_CPU): Supports M. 2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD AMD B650 Chipset 4 x SATA III
Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10 Expansion Slots AMD Ryzen 7000 Series Processors 1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode) AMD B6 mode) Chipset 1 x PCIe 3.0 x1 Internal I/O Slot 4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Header (Each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (Each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen1 2) Type-C Head 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x WITH Port Header 1 x TPM Header Operating Systems Supports Windows 10 ( x 64bit) / 11 (64bit) *Biostar reserves the right to add or remove compatibility with any operating system, with or without notice.
Dimensions: Micro ATX (221mm x 235mm) (Width x
Length) Accessories: 2x - 1x SATA Cable - 1x I/O Protector - 1x DVD Driver - 1x Quick Guide - Other Gross
Weight (g): 880
Net Weight (g): 635
Package Dimensions: 265mm (W) x 1.9699 (H) x 240mm (D)
