AVMATRIX MV0430 3G-SDI Quad Spilt Multiviewer with SDI & HDMI Output, 3G-SDI to HDMI Signal Converter, 12 SDI Distribution Amplifier w/SD/HDMI Output,4x1 3G-SDI switcher with SDI & HDMI Output.

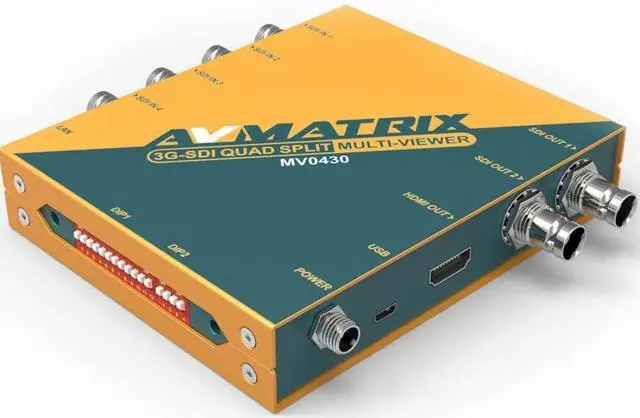

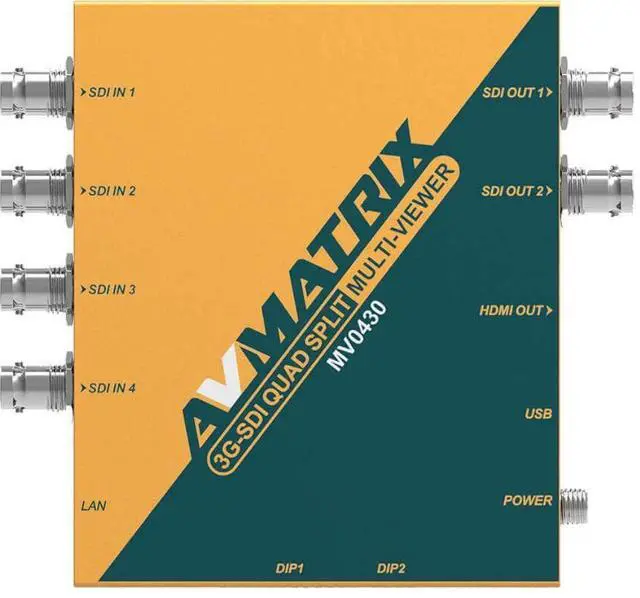

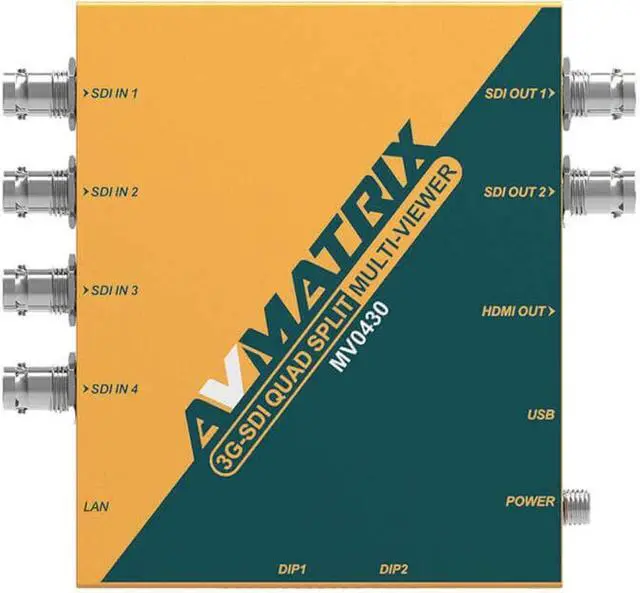

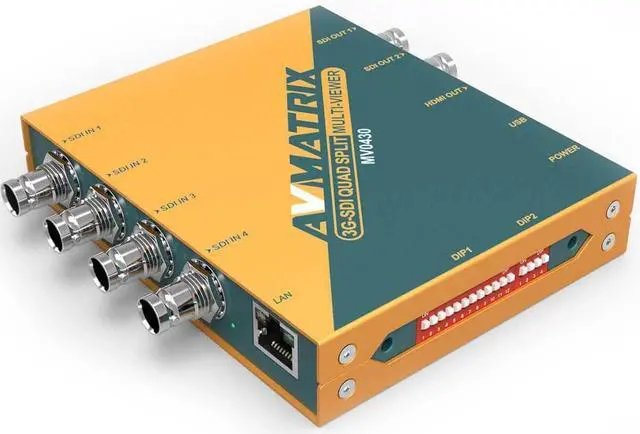

Model: MV04303G-SDI Quad Spilt MultiviewerMV0430 is an exquisite and professional device with multi-functions: 3G-SDI full screen/2/3/4 Split Multi-viewer with SDI & HDMI output, 3G-SDI to HDMI signal converter, 12 SDI distribution amplifier with SDI & HDMI output, and 4x1 3G-SDI switcher with SDI & HDMI output. The SDI and HDMI output format can realize up/down scaling and frame rate conversion. All the functions can be easily set by built-in DIP switches, USB keyboard or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications. 4SD/HD/3G-SDI inputs with auto detection2SD/HD/3G-SDI and 1HDMI outputs for multi-view 11 selectable SDI & HDMI output formatsUp/down scaling and frame rate conversion16 preset layouts, Support both full-screen and multi-view mode11 character UMD overlay, support custom position and colorAudio level meter overlay, support custom positionControl easily via the DIP switchesUSB port for keyboard controlLAN port for control and firmware updateThreaded locking power connectorDetachable bracket design for wall mounting11 Output Formats SelectableThe MV0430 features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Four inputs can be showed simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats are supported for user's choices.

User-defined UMDand Audio Meter Overlay
