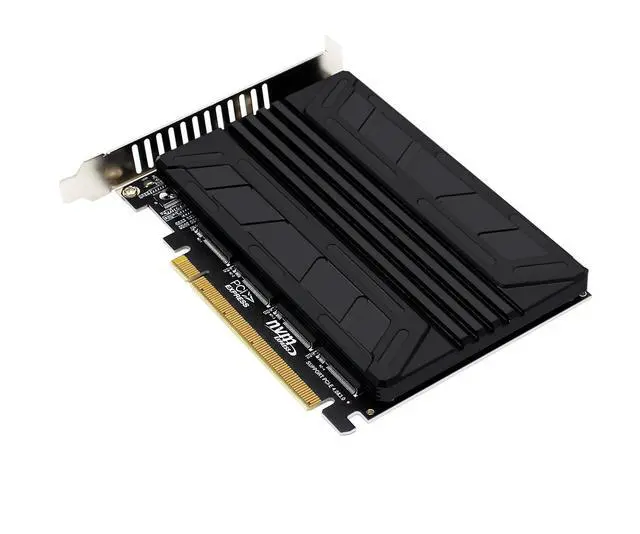

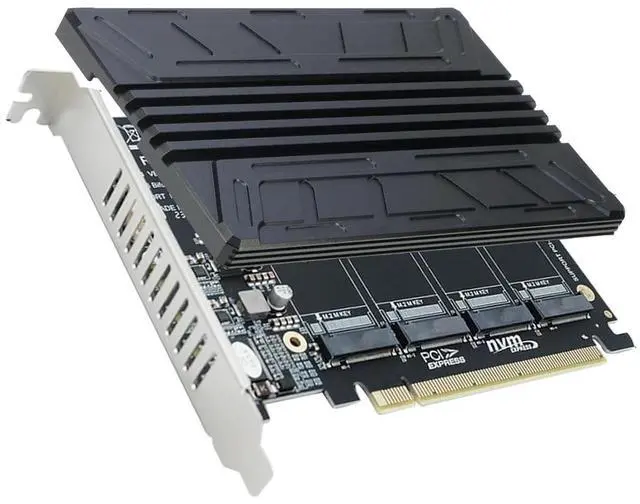

Sintech Quad NVMe SSD PCIe Adapter, 4 M.2 NVMe SSD to PCI-e 4.0 3.0 x16 Card with HeatSink Support 2230 2242 2280 NVMe SSD (PCI-e 16X Bifurcation Required)

Sintech PCIe Quad nVME Card allowed to add 4x NVMe SSDs simultaneously via PCI-e 4.0 / 3.0 x16 slot on the MOBO which is required to support PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps. ^^ Wide CompatibilityCompatible with 4sizes M.
2 NVMe SSDs: 2230, 2242, 2260, 2280. (Not support M. 2 SATA SSD);

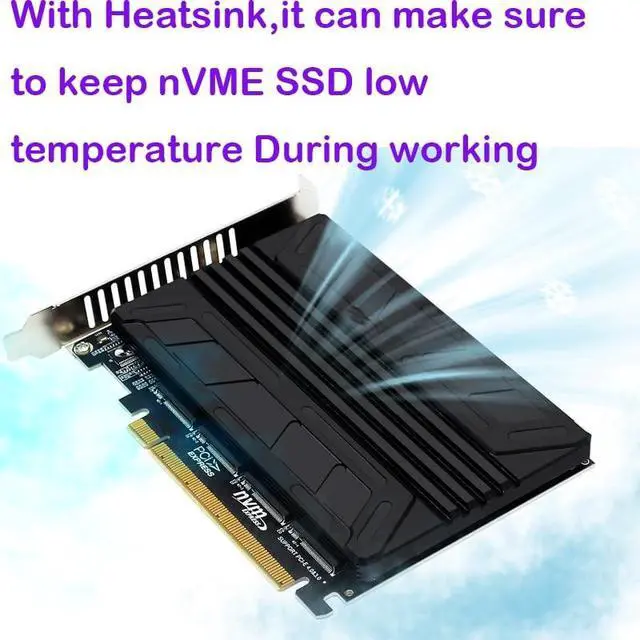

Motherboard: X299, X399 and Most Servers supporting PCIe x16 Bifurcation. ^^ Hardware requirement1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo; 2. Motherboard support PCIe x16 Bifurcation itself which can be set as"PCI-e x4x4x4x4" in BIOS; 3. CPU has enough channels to support ^^ Heatsink & LED indicator DesignBig Aluminum heatsink cover ensure to keep low temperature of nVME SSD and will not cause a decrease in SSD transmission speed due to excessive temperature. The individual LED Indicator will show each SSD's Working Status.
^^ NOTICE: Sintech PCIe Quad nVME Card does not Support Hardware Raid, only support the formation of soft raid in Win10, or you may build raid via Third-party Software, and the 4 SSDs should be same model. The motherboard need support "PCIEX16 Bifurcation", otherwise, only one M. 2 SSD can be recognized.
