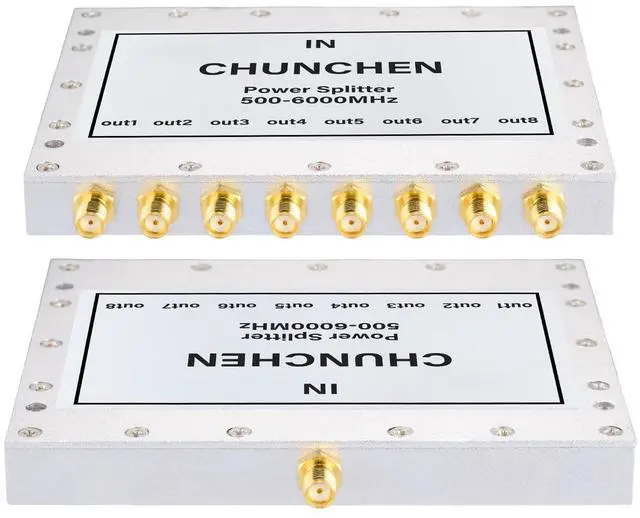

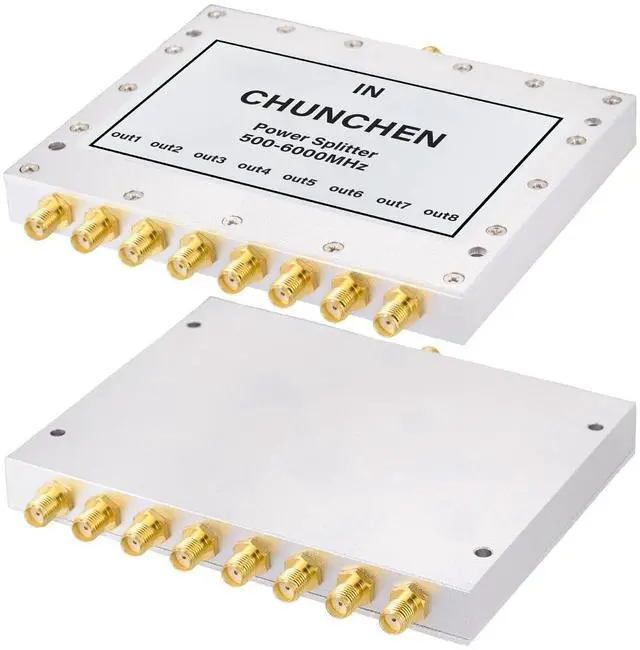

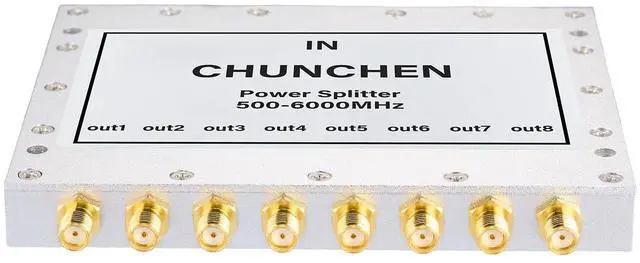

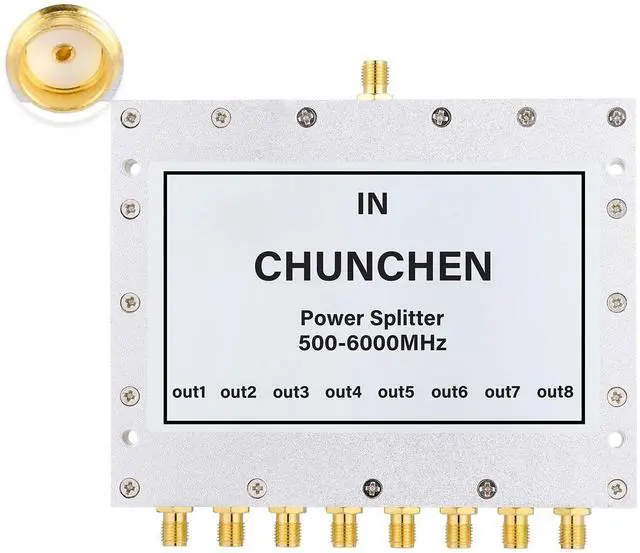

CHUNCHEN 8 Way 0.5-6GHz Power Splitter 50 Ohm SMA Female Connector Signal Splitter 500Mhz-6000Mhz Cable Signal Splitter 1 Input 8 Output for Antenna Cable
- Product name: 0.5-6GHz SMA female 8 way power splitter 1 input 8 out;
- Connector port: 1 input and 8 output; Output port type: 8 way; Connector type(Input): SMA female; Connector type(Output)*8: SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;
- Specification: Frequency range (GHz): 500-6000Mhz; Insertion loss (dB): 10-13; Isolation (dB): 20; VSWR: 1.1, 1.7; Amplitude balance (dB): 0.3; Phase balance (): 5; Impedance (): 50; Power capacity (W): 50; Operating temperature (C): -30+70; Product dimensions (cm): 11.4*11*1.3cm;
- Applicaion: Provides 8 amplified SMA female output ports for use with cable antenna satellite signal and so on;
- Package: 1 x SMA female 8 way signal splitter(Weight:300g).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product name: 0.5 -6GHz SMA female 8 way power splitter 1 input 8 out; ^^
Connector port: 1 input and 8 output;
Output port type: 8 way;
Connector type (Input): SMA female;
Connector type (Output) *8: SMA female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 500-6000Mhz;
Insertion loss (dB): 10-13;
Isolation (dB): 20;
VSWR: 1.1, 1.7;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 11.4 *11* 1.3 cm; ^^
Applicaion: Provides 8 amplified SMA female output ports for use with cable antenna satellite signal and so on; ^^
Package: 1 x SMA female 8 way signal splitter(Weight: 300g).
Connector port: 1 input and 8 output;
Output port type: 8 way;
Connector type (Input): SMA female;
Connector type (Output) *8: SMA female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 500-6000Mhz;
Insertion loss (dB): 10-13;
Isolation (dB): 20;
VSWR: 1.1, 1.7;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 11.4 *11* 1.3 cm; ^^
Applicaion: Provides 8 amplified SMA female output ports for use with cable antenna satellite signal and so on; ^^
Package: 1 x SMA female 8 way signal splitter(Weight: 300g).
