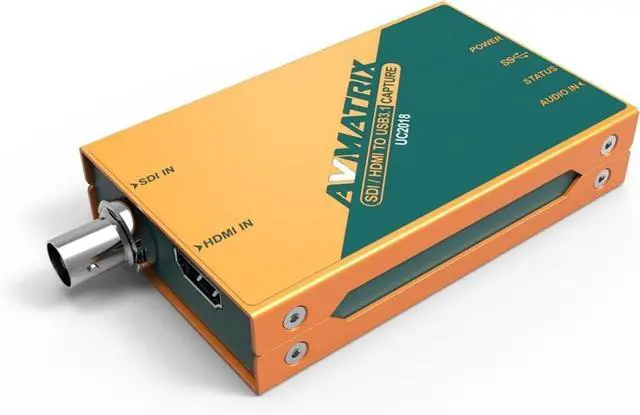

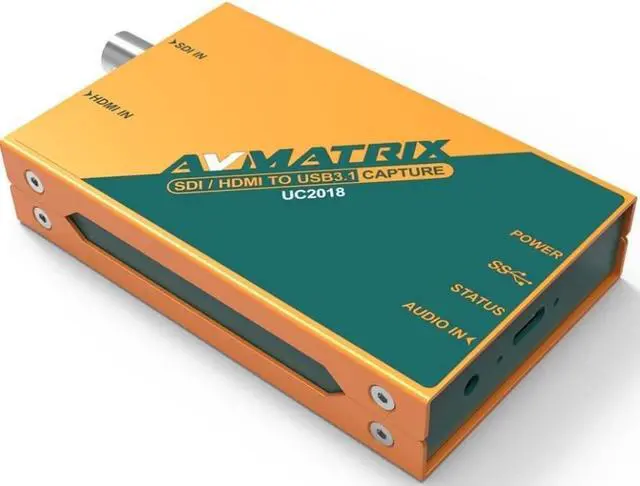

AVMATRIX Video Capture Card UC2018 HDMI/SDI with USB 3.0 Type-C 1080P 60FPS HDMI or SDI in, and USB 3.0 Out; Automatic Input Signal Detection, Up to 1080p60 for Live Streaming (UC2018 Capture Card)
- High quality video recording. 1080P 60fps video capture and streaming. Super High-Speed transmission, no delay, no freeze, without frame lag. It will bring you nice digital experience.
- SDI/HDMI In and Audio In. Uncompressed video & audio capture, comply with UVC and UAC, automatic input signal detection, up to 1080p 60hz. Audio codec is 2-channel 169bitpcm 478kHz 1536kbps.
- Plug and Play & Power Free. No need to install driver, and it compatible with operating systems such as Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above).

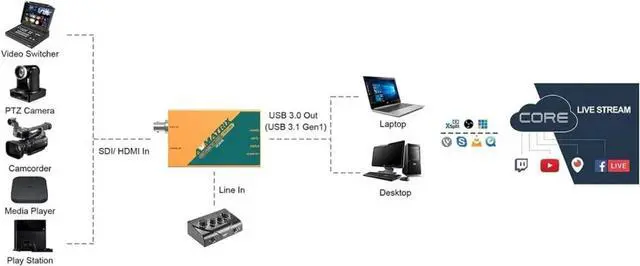

- Widely Application. Support live video streaming, webcasting, video conferencing, church livestream, personal live broadcast and so on.
- Plug-and-Play, driver free & power free, Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1, Comply with UVC video capture and YUY2 video output, Comply with UAC audio out from SDI/HDMI embedded audio or line in, Compatible with Windows, Linux, macOS.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

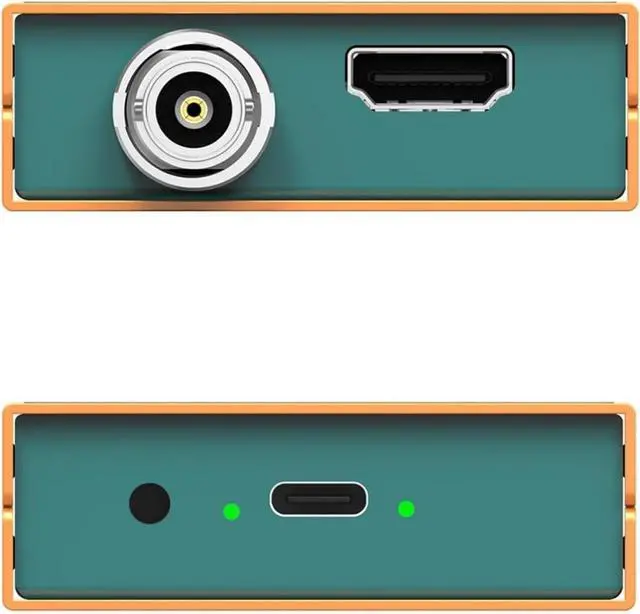

Specifications Input Interface: 1x HDMI 1.4 a, 1x SD/HD/3G-SDI, 1x 3.5 mm stereo audio (line in)
Output Interface: 1x USB Type-C USB 3.1 Gen1 (up to 200MB/s)
SDI Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 1080PsF 30/ 29.97 /25/24/ 23.98; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 625i 50/525i 59.94
HDMI Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 576p 50/ 576i50; 480i 59.94 /60; 480p 59.94 /60
USB Output Format: 1920x1080, 1680x1050, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360 Video &
Audio Capture: UVC (USB video class) & UAC (USB audio class) standard
Audio Codec: 2-channel, 16 bit PCM, 48kHz, 1536kbps
Video Color Space: YUY2
Supports OS: Windows 7/8/10, Linux (Kernel version 2.6. 38 and above), macOS ( 10.8 and above)
Compatible SDK: DirectShow (Windows), DirectSound (Windows)
Power Consumption: 3.5W (Max)
Operating Temperature: -2060C
Storage Temperature: -3070C
Relative Humidity: 2090% RH (no condensation)
Accessory: USB 3.0 A-C cable
Dimensions: 92x58x19mm
Net weight: 205g

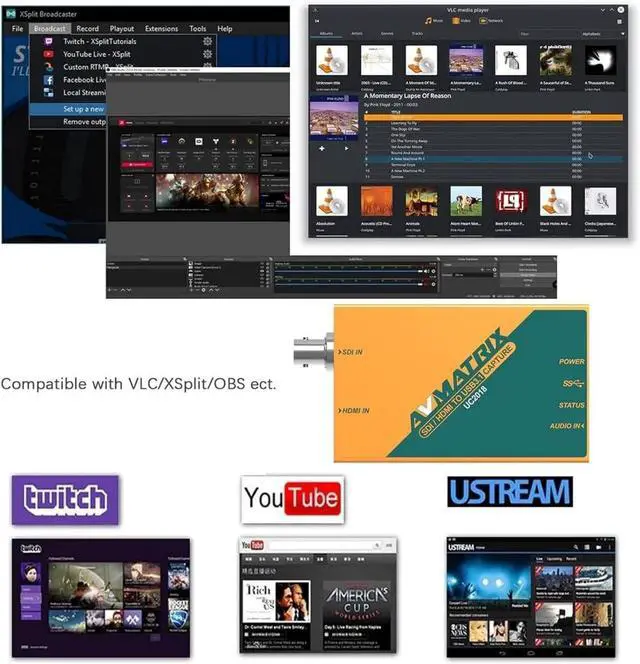

Gross Weight: 300g Key Features Plug-and-Play, driver free & power free HDMI or SDI in, and USB 3.1 Gen1(USB 3.0 ) out Automatic input signal detection, up to 1080p60 Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1 Comply with UVC video capture and YUY2 video output Comply with UAC audio out from SDI/HDMI embedded audio or line in Compatible with Windows, Linux, macOS Compatible with OBS, ZOOM, Teams & Twitch, etc.
Packing list: UC2018 HDMI/SDI Video Capture Cardx1 USB-A to USB-C 3.0 Cablex1
Output Interface: 1x USB Type-C USB 3.1 Gen1 (up to 200MB/s)
SDI Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 1080PsF 30/ 29.97 /25/24/ 23.98; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 625i 50/525i 59.94
HDMI Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 576p 50/ 576i50; 480i 59.94 /60; 480p 59.94 /60
USB Output Format: 1920x1080, 1680x1050, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360 Video &
Audio Capture: UVC (USB video class) & UAC (USB audio class) standard
Audio Codec: 2-channel, 16 bit PCM, 48kHz, 1536kbps
Video Color Space: YUY2
Supports OS: Windows 7/8/10, Linux (Kernel version 2.6. 38 and above), macOS ( 10.8 and above)
Compatible SDK: DirectShow (Windows), DirectSound (Windows)
Power Consumption: 3.5W (Max)
Operating Temperature: -2060C
Storage Temperature: -3070C
Relative Humidity: 2090% RH (no condensation)
Accessory: USB 3.0 A-C cable
Dimensions: 92x58x19mm
Net weight: 205g
Gross Weight: 300g Key Features Plug-and-Play, driver free & power free HDMI or SDI in, and USB 3.1 Gen1(USB 3.0 ) out Automatic input signal detection, up to 1080p60 Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1 Comply with UVC video capture and YUY2 video output Comply with UAC audio out from SDI/HDMI embedded audio or line in Compatible with Windows, Linux, macOS Compatible with OBS, ZOOM, Teams & Twitch, etc.
Packing list: UC2018 HDMI/SDI Video Capture Cardx1 USB-A to USB-C 3.0 Cablex1
